Description
Description

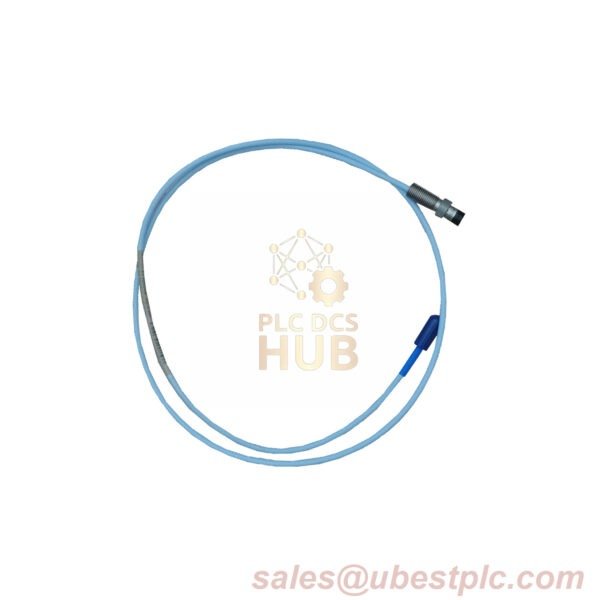

The Bently Nevada 3300 XL 8 mm Reverse Mount Probe (P/N: 330105-02-12-20-02-CN) is engineered for precision industrial sensing with a 2.0 m (6.6 ft) triaxial cable and Miniature ClickLoc® connector. Featuring a PPS probe tip and AISI 303/304 stainless steel casing, this configuration supports country-specific agency approvals. Designed for high-pressure environments with Viton® O-ring seals.
330105-02-12-20-02-CN Technical Data
- Core Specifications:
- DC Resistance: 7.88 Ω ±0.50 @ 2.0 m
- Cable Options:
- Standard: FEP insulation (0.5-9 m)
- Extended Temp: PFA insulation (-60°C to +260°C)
- Armor: AISI 302/304 SST with FEP jacket
- Thread Spec: 3/8-24 UNF (Max engagement 0.563 in/14.3 mm)
- Environmental Performance:
- Humidity: ≤3% ASF drift @ 93% RH for 56 days (IEC 68-2-3)
- Pressure Seal: Viton® O-ring (Differential pressure rated)
- Cable Tensile: 330 N (case) / 270 N (connectors)
- Material Composition:
- Tip: Polyphenylene Sulfide (PPS) – Chemical resistant
- Connector: Gold-plated BeCu/Brass – Corrosion resistant
- Armor: MIL-SPEC stainless steel (optional)
Compliance & Certifications
- Country Approval: CN – Customizable for regional standards
- Safety Ratings: Intrinsic safety for Zone 0/1 hazardous areas
Contact Support
For pressure seal validation or armored configurations:
Email:
sales@ubestplc.com
⚠️ Operational Limits:
- Seal Failure Risk: Exposure below -34°C (-30°F)
- Pressure Testing: Not factory-validated – request custom certification
- Bend Radius: ≥15× cable diameter during installation
