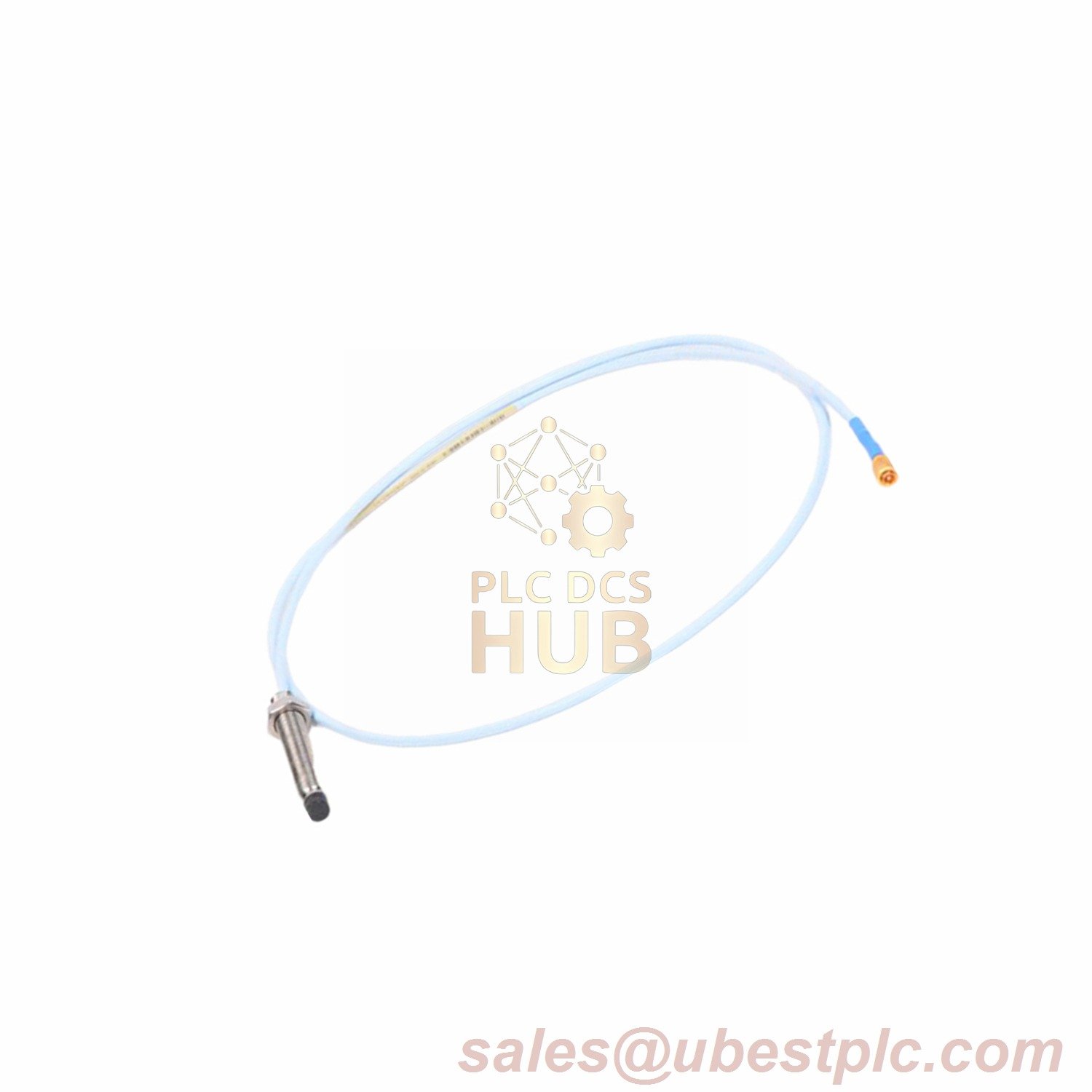

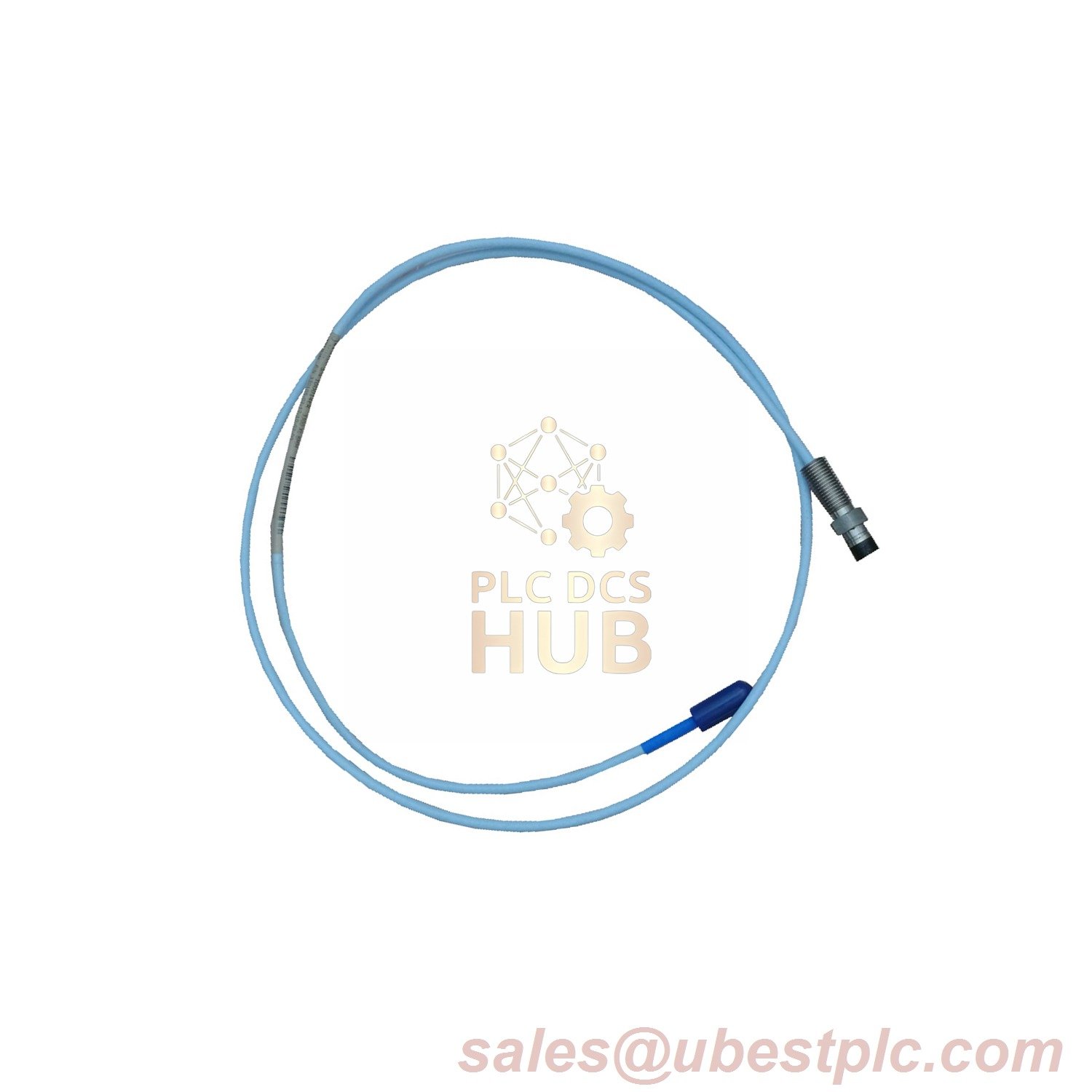

The 330105-02-12-20-12-00 is a precision-engineered reverse-mount probe designed for industrial vibration monitoring. Featuring a 2.0-meter FluidLoc cable, 3/8-24 UNF threads, and operation in -52°C to +177°C extremes, it delivers reliable performance in non-hazardous environments. Built for installations requiring extended reach and robust signal integrity.
Technical Specifications
| Model | 330105-02-12-20-12-00 |
|---|---|
| Suffix Codes | 02: 3/8-24 UNF threads 12: Miniature ClickLoc + FluidLoc cable (optional) 20: 2.0-meter cable length 00: No agency approvals required |
| Electrical Resistance | 7.88 Ω ±0.50 Ω (center to outer conductor) |
| Temperature Range | -52°C to +177°C (probe tip) | -51°C to +260°C (cable) |
| Thread Engagement | 0.563 in (14.3 mm) maximum |
Environmental Resilience
- Pressure Seal: Viton® O-ring seals differential pressure (untested by default; custom testing available).
- Humidity Resistance: <3% signal drift at 93% humidity (IEC 68-2-3 compliant).
- Thermal Stability: Withstands extreme cold (-52°C) and high heat (+177°C).
Contact Information
For extended-range solutions or technical inquiries:
Email: sales@ubestplc.com
