330105-02-12-30-02-00 Bently Nevada – Reverse Mount Probe

Description

Overview

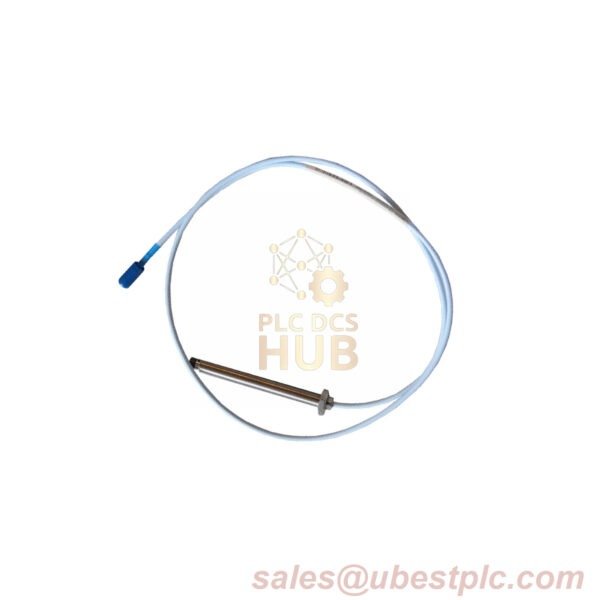

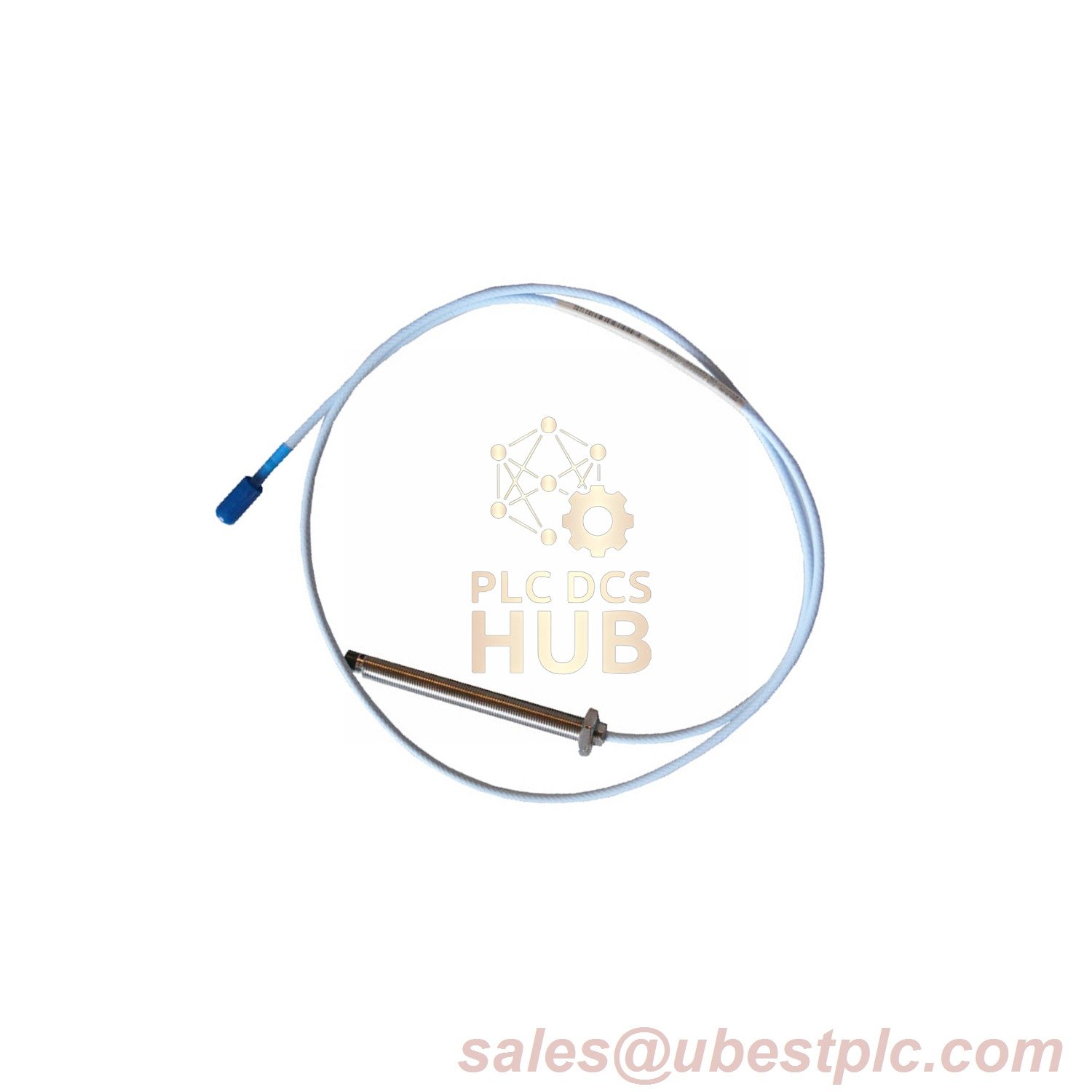

The Bently Nevada 330105 Reverse Mount Probe (Part No. 330105-02-12-30-02-00) is designed for precision vibration measurement in industrial machinery requiring reverse-mount installations. Featuring a 3.0-meter cable and Miniature ClickLoc connector, it ensures secure connectivity in non-explosive environments. With a rugged PPS plastic tip and stainless steel casing, this probe excels in high-temperature or corrosive applications while maintaining compliance with IEC standards.

Technical Specifications

• Brand: Bently Nevada
• Model: 330105-02-12 (3300 XL 8mm Reverse Mount Probe)
• 330105-02-12-30-02-00 Breakdown:
  • 30: 3.0-meter cable (9.8 feet)
  • 02: Miniature ClickLoc coaxial connector
  • 00: No agency certifications required
• Electrical Parameters:
  • DC Resistance: 8.18 Ω ±0.49 (3.0m cable)
  • Operating Voltage: -17.5 Vdc to -26 Vdc (non-incendive circuit)
• Mechanical Design:
  • Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 303 stainless steel
  • Thread: 3/8-24 UNF, 0.563-inch engagement
  • Weight: 320 g/m (11.3 oz/ft)
• Temperature Range:
  • Standard (EPL Ga/Gc): -52°C to +177°C (-62°F to +350°F)
  • Extended (EPL Dc): -52°C to +260°C (cable/connector)
• Humidity Tolerance: <2.9% ASF shift at 93% humidity (IEC 68-2-3, 56 days)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
