Description

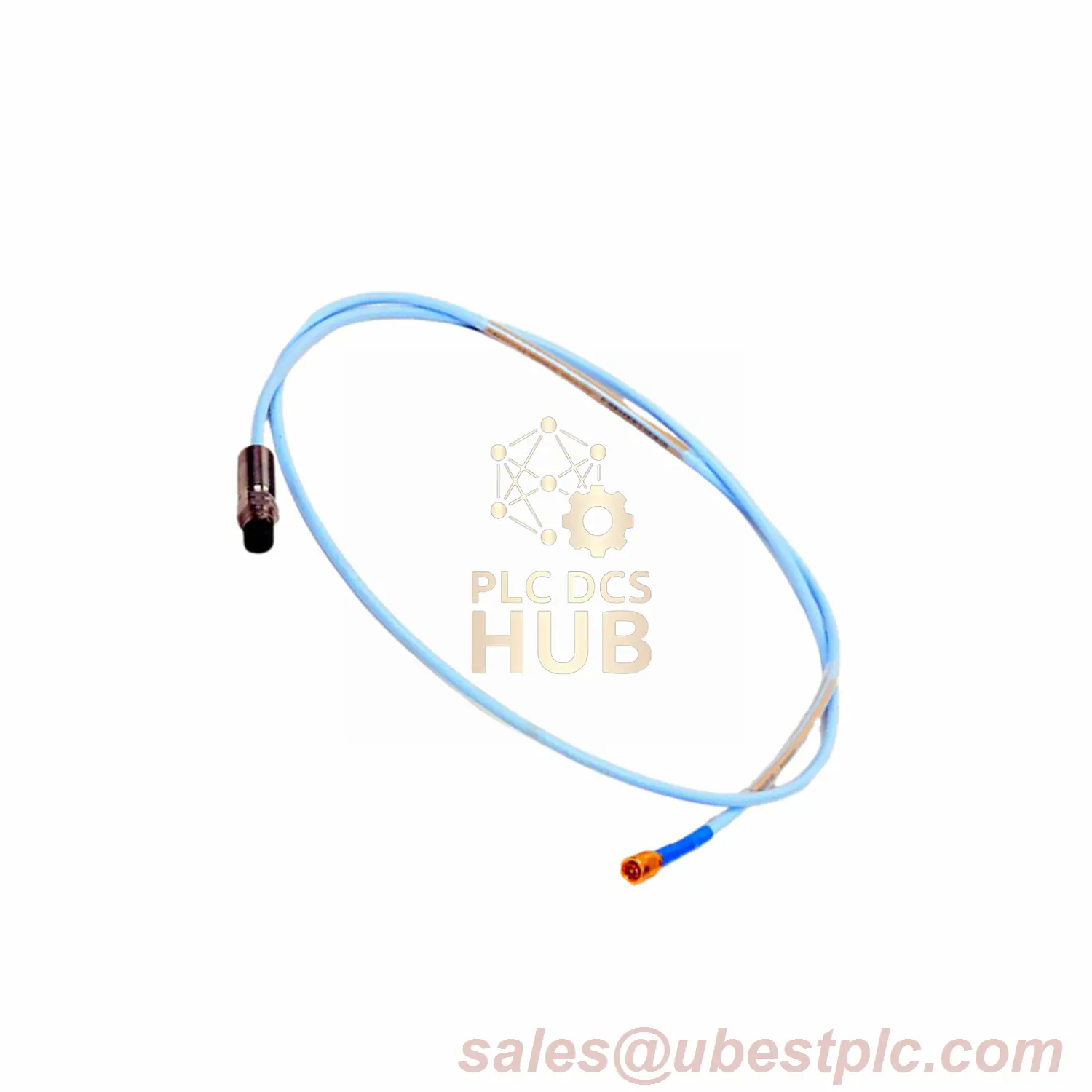

Bently Nevada Certified 8mm Reverse Mount Probe (0.5m)
Explosion-safe vibration monitoring with global certifications. Features industrial-grade construction for hazardous environments. Made in USA with premium materials.
CORE SPECIFICATIONS
- Part Number: 330106-05-30-05-02-05
- Cable Length: 0.5 meter (1.6 ft)
- Certifications: CSA, ATEX, IECEx
- DC Resistance: 7.45Ω ±0.50 at 25°C
- Thread Size: M10×1 metric
- Weight: 161.5 grams total
MATERIAL SPECS
- Probe Tip: PPS thermoplastic
- Housing: AISI 303/304 stainless steel
- Seal: Viton O-ring (-30°C min)
- Connector: Gold-plated ClickLoc
ENVIRONMENTAL RATINGS
- Operating Temp: -52°C to +177°C
- Max Tip Temp: 218°C (PFA cable)
- Humidity: 93% RH (56 days)
- Pressure: Differential sealed
MECHANICAL PROPERTIES
- Max Thread Engagement: 15mm
- Cable Pull Strength: 330N (75 lbf)
- Cable Bend Radius: 25mm min
- Vibration Limit: 20g peak
INSTALLATION GUIDE
- Mount in clean M10×1 threaded hole
- Max torque: 15 N·m (133 lb-in)
- Maintain 25mm straight run after tip
- Prevent cable twist during install
SHIPPING & HANDLING
- Packaging: Anti-static tube
- Weight: 0.42 kg (shipped)
- Carriers: FedEx Priority, UPS Saver, DHL Express
- Lead Time: 2-3 business days
PROBE FAQ
Q: What’s the minimum install temperature?
A: Do not install below -34°C to prevent seal damage
Q: Can this monitor thrust position?
A: Yes, when used with compatible monitoring systems
Q: Difference between standard and PFA cable?
A: PFA withstands +260°C vs standard +177°C
Q: Is calibration data included?
A: Factory test data provided with shipment
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
