Description

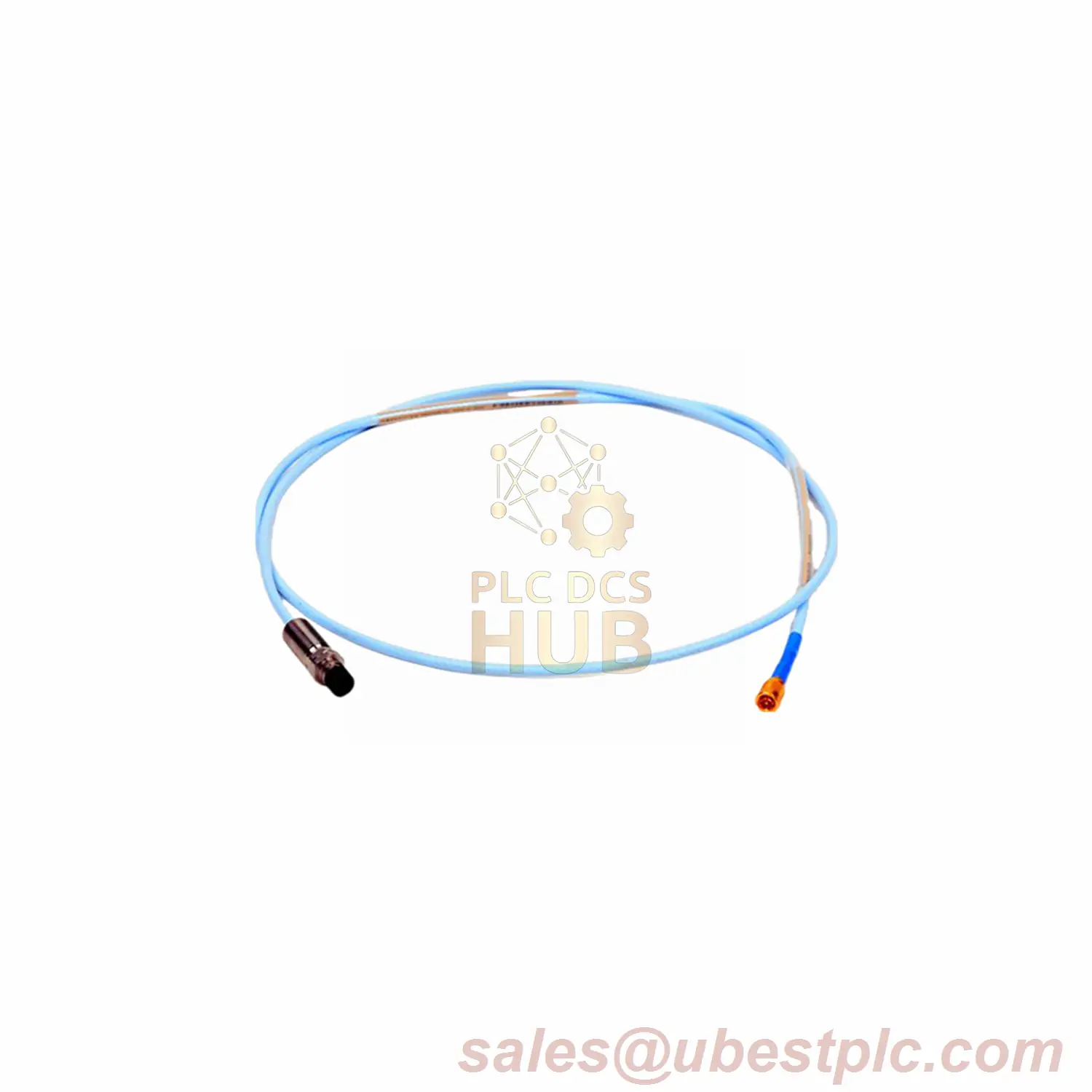

Bently Nevada 1.5m Industrial Vibration Probe
Essential Specifications
- Part Number: 330106-05-30-15-02-00
- Cable: 1.5m FEP-insulated triaxial
- Connector: Standard ClickLoc coaxial
- Resistance: 7.73Ω ±0.50 @20°C
- Thread: M10x1 (15mm max)
- Weight: 485g total
- Temp Range: -52°C to +260°C
Performance Highlights
| Vibration Range | 0-10 mils (0-254μm) |
| Humidity Test | 93% RH for 56 days (IEC 68-2-3) |
| Cable Strength | 330N at probe end |
| Insulation | FEP or PFA options |
Technical Notes
- PPS tip material withstands most chemicals
- Gold-plated connectors ensure reliable signal
- Stainless steel housing for rugged protection
- Extended temperature cable available
Common Questions
Q: Approval code “00” meaning?
A: No special agency approvals required.
Q: Minimum bend radius for cable?
A: 25mm (1 inch) for safe operation.
Q: Can I use in food processing?
A: Yes – PPS tip resists cleaning chemicals.
Q: Pressure seal testing available?
A: Custom testing service upon request.
Shipping Details
- Delivery: FedEx/UPS/DHL – 1-3 business days
- Packaging: Anti-static protective case
- Warranty: 12 months against defects
- Support: Technical experts available
