Description

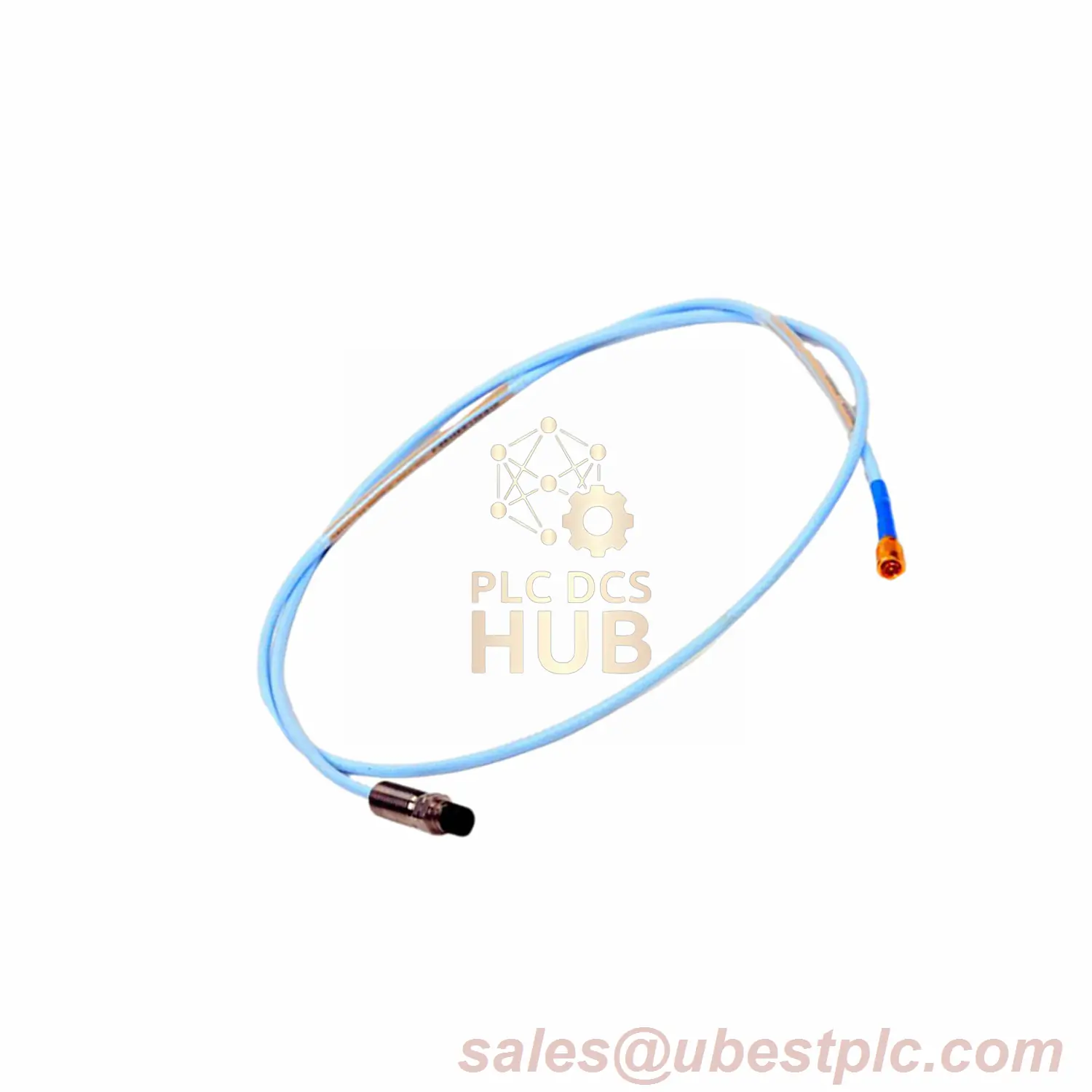

Bently Nevada 2.0m ATEX Certified Vibration Probe
Product Identification
- Full Model: 330106-05-30-20-02-05
- Breakdown:
- → 330106: Probe series
- → 05: Version code
- → 30: Configuration
- → 20: 2.0m cable (6.6 ft)
- → 02: ClickLoc connector
- → 05: CSA/ATEX/IECEx
Certified Specifications
| Hazardous Area Rating | ATEX/IECEx Zone 1 & 2 |
| Resistance Value | 7.88Ω ±0.50 @25°C |
| Cable Weight | 646g (2m length) |
| Max Temp Rating | +260°C (cable/connector) |
Safety Approvals
- CSA: Class I, Div 1 Groups A-D
- ATEX: II 2G Ex ia IIC T4 Ga
- IECEx: Ex ia IIC T4 Ga
- Certified for: Gas groups IIC/IIB/H₂
Technical Performance
- Humidity resistance: <3% ASF change @93% RH
- Cable pull strength: 330N probe end
- Thread spec: M10x1 (15mm max)
- Material: PPS tip / 304 SST housing
- Insulation: FEP or PFA options
Installation Guidance
- Maintain 100mm clearance in explosive zones
- Use only certified junction boxes
- Follow ATEX cable routing requirements
- Verify grounding continuity
Critical Notes
- Do not modify any components – voids certification
- Use only with approved monitoring systems
- Temperature range: -52°C to +260°C
- Avoid installation below -34°C
