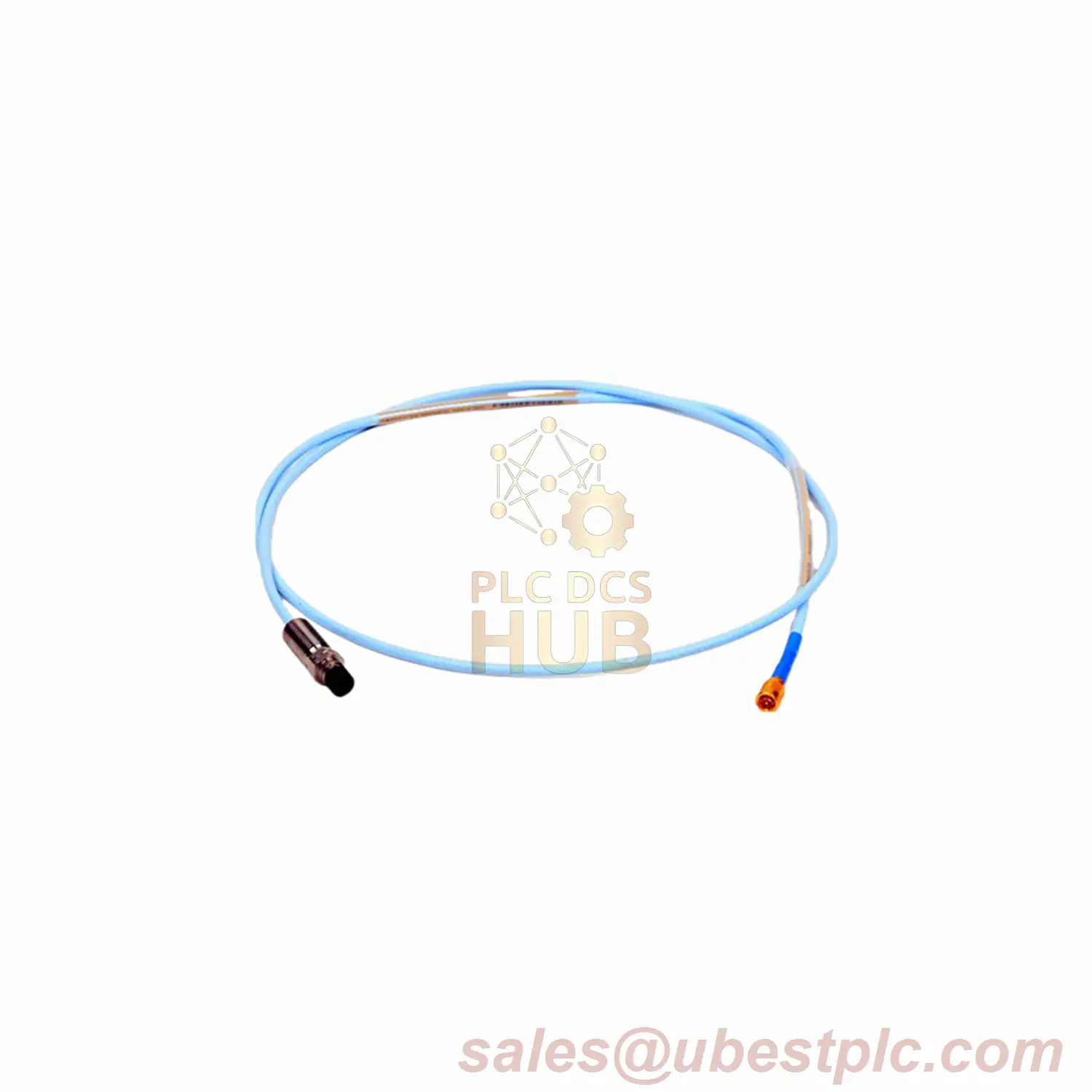

Bently Nevada 3300 XL 8mm Reverse Mount Probe – Heavy-Duty Vibration Monitoring
Core Specifications
- Brand: Bently Nevada
- Model: 3300 XL Reverse Mount
- Full Suffix: 330106-05-30-20-02-CN
- Suffix Breakdown:
- 20: 2.0 meter cable (6.6 ft)
- 02: Miniature ClickLoc connector
- CN: Country Specific approval
- Resistance: 7.88Ω ±0.50
- Temp Range: -52°C to +260°C
- Cable: 75Ω triaxial w/ PFA insulation
Key Technical Data
- Thread: M10x1 (15mm max engagement)
- Tip Material: PPS (Polyphenylene sulfide)
- Case Material: AISI 303/304 SST
- Seal: Viton® O-ring (pressure differential)
- Humidity Tolerance: <3% ASF change at 93% RH
- Tensile Strength: 330N (probe to lead)
Model Comparison
| Model | Cable Length | Agency Approval | Resistance | Link |
|---|---|---|---|---|
| 330106-05-30-05-02-00 | 0.5m | 00 Standard | 7.45Ω ±0.50 | View Product |
| 330106-05-30-10-02-00 | 1.0m | 00 Standard | 7.65Ω ±0.50 | View Product |
| 330106-05-30-20-02-CN | 2.0m | CN Country Specific | 7.88Ω ±0.50 | Current Model |
Critical Installation Notes
- Max thread engagement: 15mm
- Seal failure risk below -34°C (-30°F)
- Pressure testing available upon request
Shipping & Packaging
- 1x Probe assembly (2.0m length)
- Warranty: 12 months
- Carriers: FedEx, UPS, DHL
FAQs
Q: What does “Country Specific” approval mean?
A: Meets local compliance standards in target markets (e.g. China CN)
Q: Can I use this in steam turbine applications?
A: Yes – PFA insulation handles +260°C steam environments
Q: How does length affect performance?
A: Longer cables add slight resistance (7.88Ω vs 7.45Ω for 0.5m) but maintain signal integrity
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
