Description

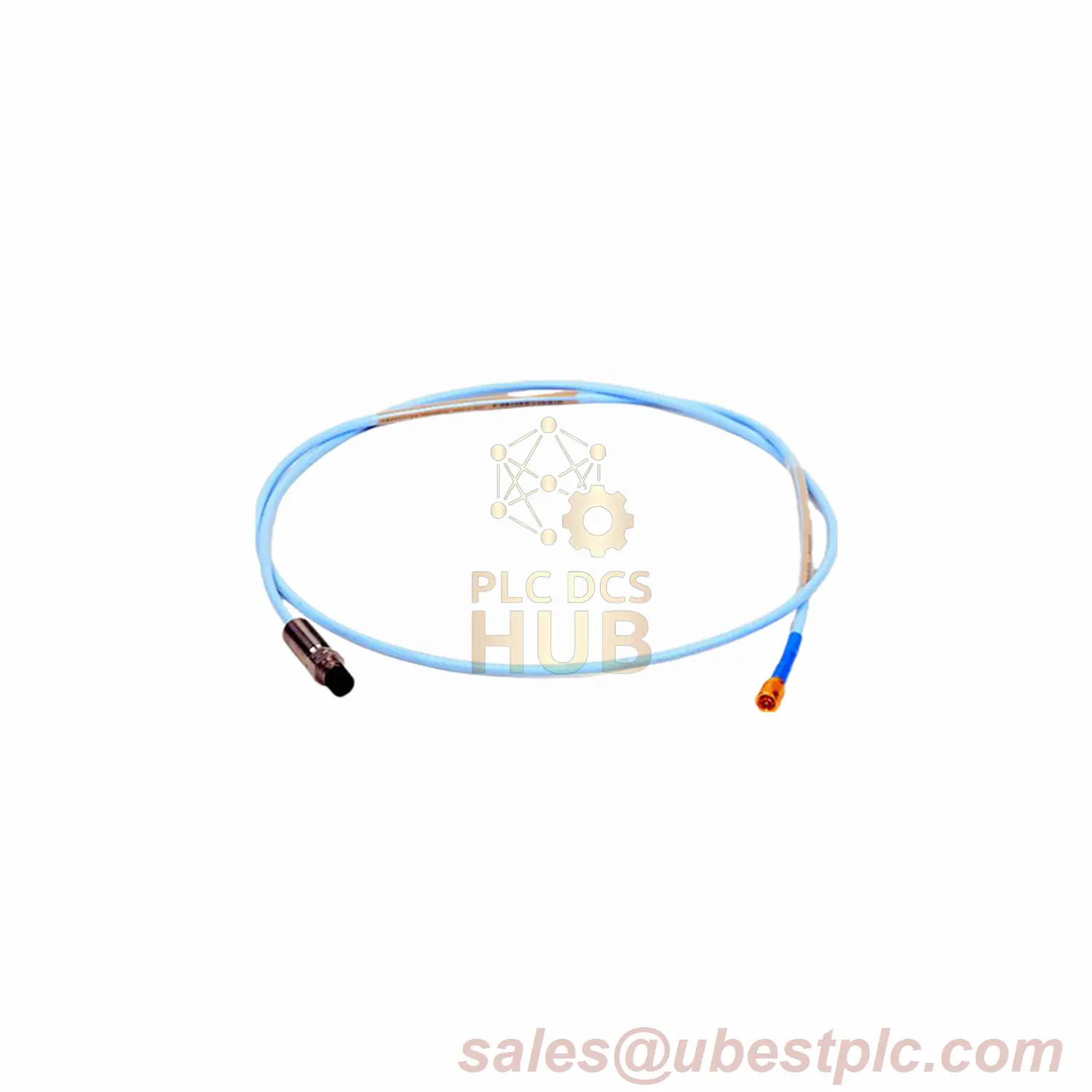

Bently Nevada 3300 XL 8mm Vibration Sensor with 2-Meter Cable
Industrial-grade proximity probe with FluidLoc technology for wet environments. Certified for hazardous locations.
Model Code Explained
- 330106 – Base model
- 05 – Standard temperature cable
- 30 – Fixed configuration
- 20 – 2.0 meter cable length
- 12 – FluidLoc connector system
- 05 – CSA/ATEX/IECEx approvals
Key Technical Data
| Electrical Resistance | 7.88Ω ±0.50 (2m cable) |
| Temperature Limits | -52°C to +177°C (Probe) -51°C to +260°C (Cable) |
| Cable Strength | 330N at probe, 270N at connector |
| Humidity Performance | <3% change after 56 days at 93% RH |
| Weight per Meter | 323 grams |
Material Specifications
- Tip: Polyphenylene sulfide (PPS)
- Body: AISI 303/304 stainless steel
- Seal: Viton O-ring
- Connector: Gold-plated copper
- Cable: FEP insulated triaxial
Installation Guide
- Thread size: M10x1
- Max thread depth: 15mm
- Keep above -34°C during install
- Do not bend cable sharply
Safety Approvals
- ATEX for explosive areas
- IECEx international standard
- CSA Canada certification
Shipping & Warranty
- 12-month product guarantee
- Shipped via FedEx, UPS, or DHL
- Express delivery available
- Online tracking provided
Common Questions
Q: Why choose FluidLoc connector?
A: Only for direct fluid contact – most applications don’t need it.
Q: What’s the cable weight for 2m?
A: Approximately 646 grams (323g/m x 2m).
Q: Is it safe for food processing?
A: Yes, stainless steel body meets hygiene standards.
