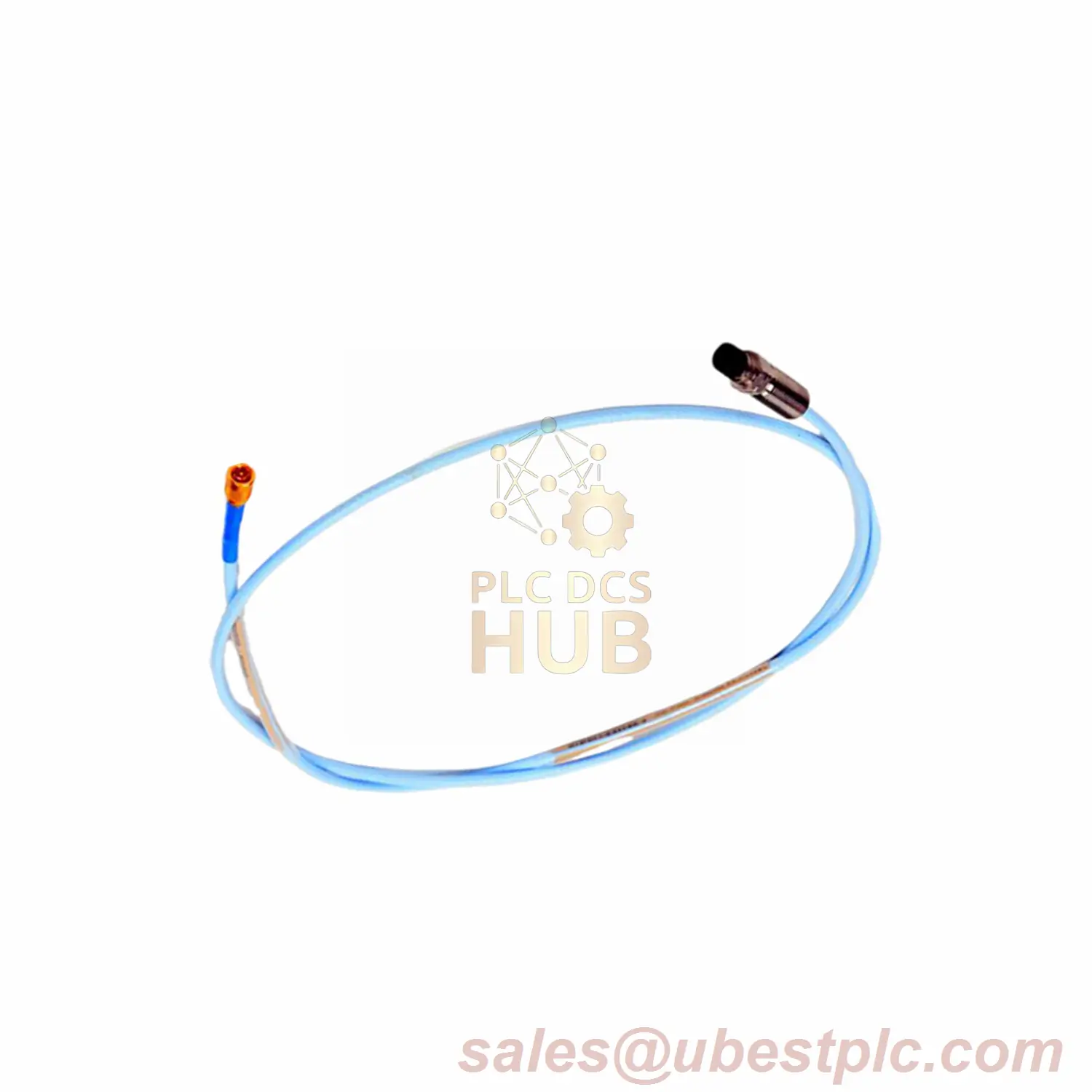

Bently Nevada 330106-05-30-50-12-05 – Hazardous Area Vibration Probe
Engineered for Extreme Environments
8mm reverse mount sensor with FluidLoc cable. ATEX certified for explosive atmospheres. 5m length. Made in USA.
Product Configuration Breakdown
- Base Model: 330106 (8mm Reverse Mount)
- Mount Option: -05 (Reverse orientation)
- Length Code: -50 (5.0 meter cable)
- Connector Type: -12 (ClickLoc with FluidLoc)
- Certification: -05 (CSA/ATEX/IECEx)
Performance Specifications
- Electrical Properties
- DC Resistance: 8.73Ω ±0.5
- Cable Impedance: 75Ω triaxial
- Insulation: FEP material
- Environmental Ratings
- Operating Range: -52°C to +177°C
- Humidity Tolerance: <3% ASF change at 93% RH
- Pressure Seal: Viton O-ring
- Physical Construction
- Case: Stainless steel (AISI 303/304)
- Tip: PPS thermoplastic
- Thread: M10x1 metric
- Max Engagement: 15mm
- Cable Specifications
- Type: FluidLoc triaxial
- Tensile Strength: 330N case to lead
- Connector: Gold-plated contacts
- Weight: 323 g/m (11.4 oz/ft)
Installation Requirements
- Max thread engagement: 15mm
- Seal material: Viton O-ring
- Pressure rating: Differential only
- Temperature caution: Avoid below -34°C
Certifications & Approvals
- CSA certified
- ATEX approved
- IECEx compliant
- Hazardous location rated
Shipping & Warranty
- 12-month manufacturer warranty
- Global express shipping: FedEx, UPS, DHL
- Tracking provided within 24 hours
- Hazardous material compliant
