Description

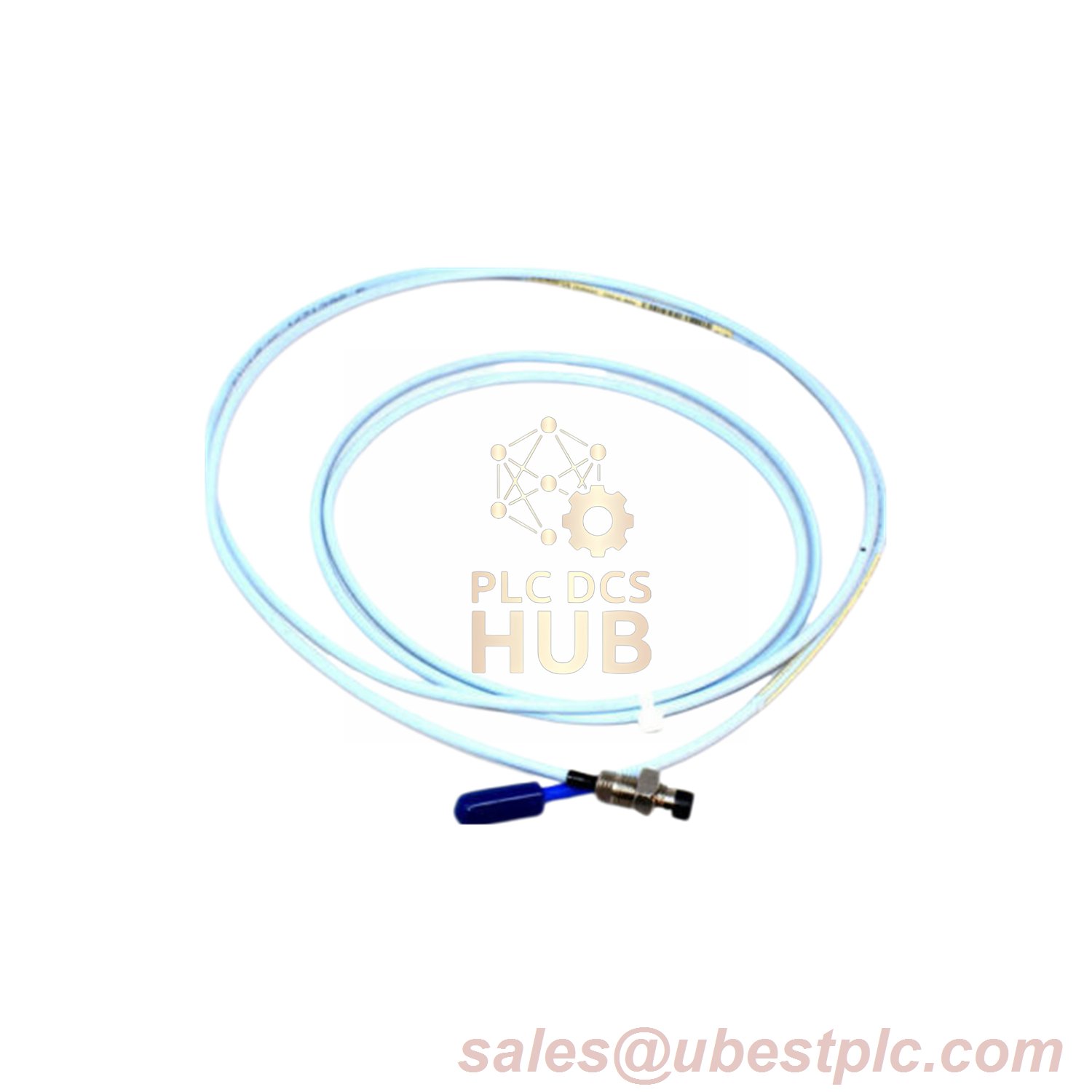

Bently Nevada FluidLoc® Extension Cable
Optimize industrial reliability with the Bently Nevada 330130-035-10-00 FluidLoc® extension cable, engineered for leak-proof performance in oil-exposed environments. Designed for 3300-series 5 mm, 8 mm, and 3300 XL 8 mm proximity probes, it features gold-plated ClickLoc® connectors and a FluidLoc® cable to prevent fluid ingress. Includes silicone tape for temporary sealing and meets IEC humidity standards.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-035-10-00 (Suffix: 035=3.5m, 10=FluidLoc® Cable, 00=No Approvals) |
| Voltage Range | -17.5 Vdc to -26 Vdc (Barrier: -23 Vdc to -26 Vdc) |
| Current Consumption | 12 mA max |
| Core Resistance (RCORE) | 0.77 Ω ± 0.12 |
| Jacket Resistance (RJACKET) | 0.23 Ω ± 0.05 |
| Weight (Armored) | 0.36 kg (103 g/m) |
| Sealing Material | Viton® O-ring (pressure seal testing available on request) |
Key Features
- FluidLoc® technology prevents oil/liquid leakage
- 3.5-meter armored cable with 330 N (75 lbf) pull strength
- Compliant with IEC 68-2-3 (93% humidity, 56 days)
- Linear range: 0.25–2.3 mm (10–90 mils)
