Description

Description

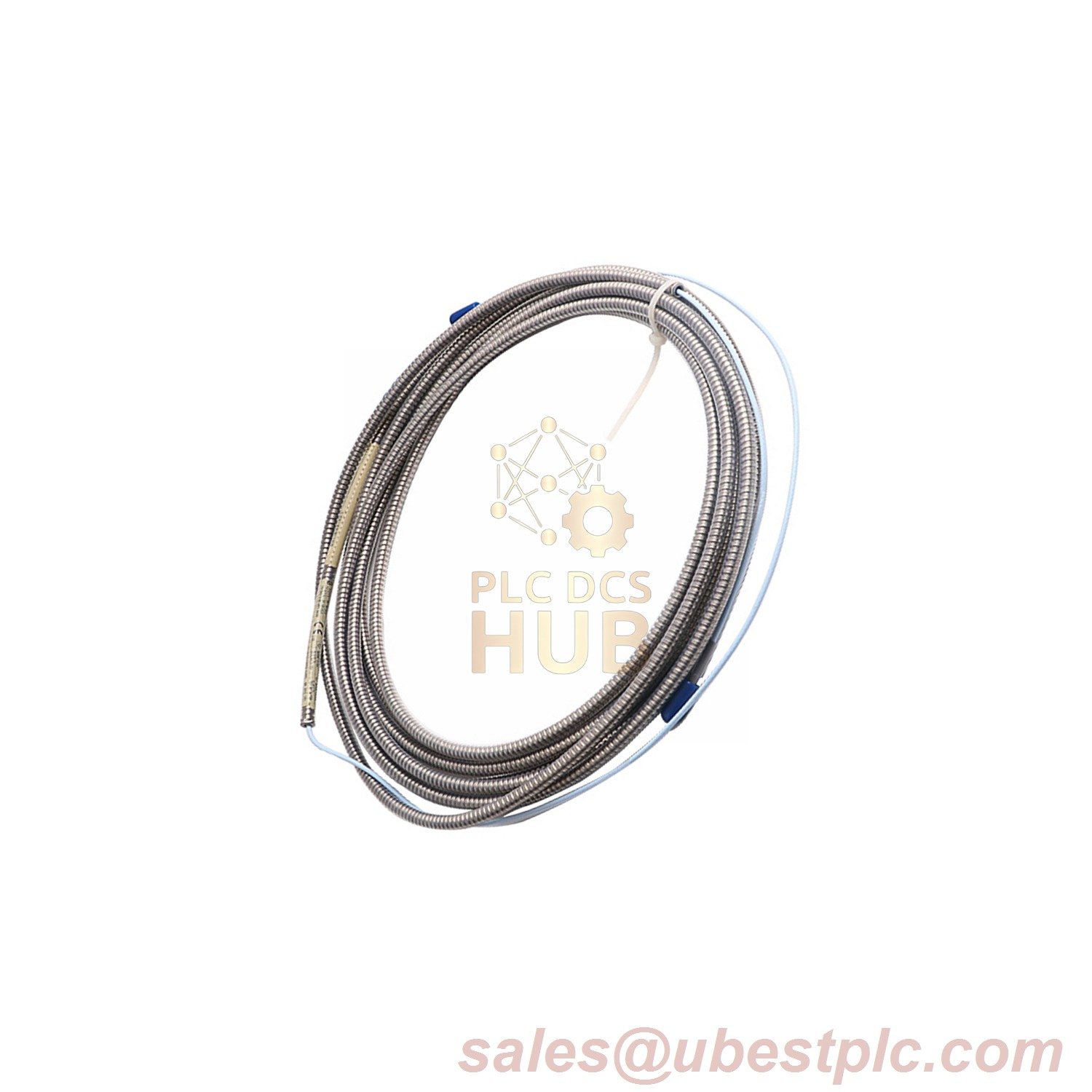

The Bently Nevada 330130-040-03-05 is a rugged armored extension cable designed for hazardous and high-stress industrial environments. Featuring 4.0 meters (11.5 feet) of 316 stainless steel armored cable, a built-in connector protector, and CSA/ATEX/IECEx certifications, this cable ensures reliable signal transmission in explosive atmospheres and mechanically demanding conditions.

Technical Data

ParameterSpecification
BrandBently Nevada
Model330130-040-03-05
Suffix Breakdown-040 (4.0 m cable),

-03 (armored cable + connector protector),

-05 (CSA/ATEX/IECEx approvals)

Product TypeArmored Extension Cable with Connector Protector
Cable Length4.0 meters (11.5 feet)
DC Resistance (RCORE)0.88 ± 0.13 Ω (center-to-center conductor)
DC Resistance (RJACKET)0.26 ± 0.05 Ω (outer-to-outer conductor)
Capacitance69.9 pF/m (21.3 pF/ft)
Vibration Resistance15 g RMS (10 Hz–2 kHz, 3 axes)
EMI Shielding Effectiveness>110 dB (100 kHz–2 GHz)
Dynamic Load Fatigue100,000 cycles (50 N axial load at 10 Hz)

Contact Information

For pricing or customization, email sales@ubestplc.com

Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet

More Other Bently Nevada Cables

ModelTitleLink
330130-060-01-00330130-060-01-00 Armored Extension Cable Bently NevadaLearn More
330130-060-02-00330130-060-02-00 3300 XL Extension Cable Bently NevadaLearn More
330130-060-02-05330130-060-02-05 8mm Extension Cable Bently NevadaLearn More
330130-030-00-05330130-030-00-05 NSV Extension Cable Bently NevadaLearn More
330130-030-01-00330130-030-01-00 Extension Cable Bently NevadaLearn More
330130-030-01-05330130-030-01-05 3300 XL Standard Cable Bently NevadaLearn More
330130-030-02-00330130-030-02-00 Extension Cable Bently NevadaLearn More
330130-030-02-05330130-030-02-05 Extension Cable Bently NevadaLearn More

Additional information

Weight0.323 kg
Dimensions300 × 330 × 60 mm
