330130-070-12-00 Bently Nevada | 3300 XL Standard Extension Cable

Description

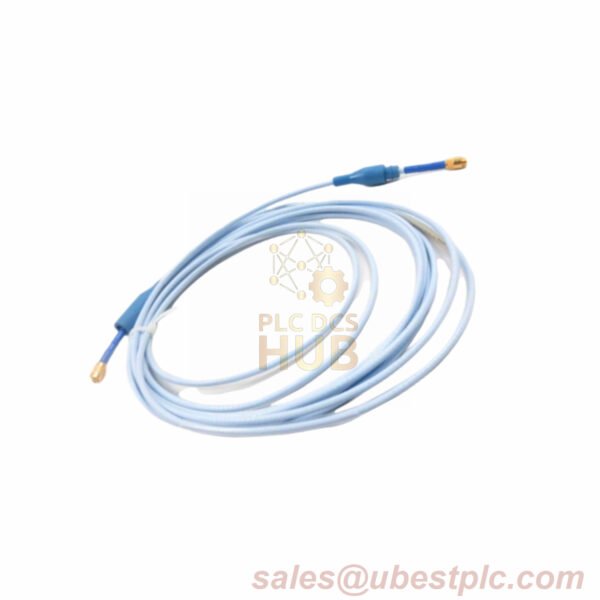

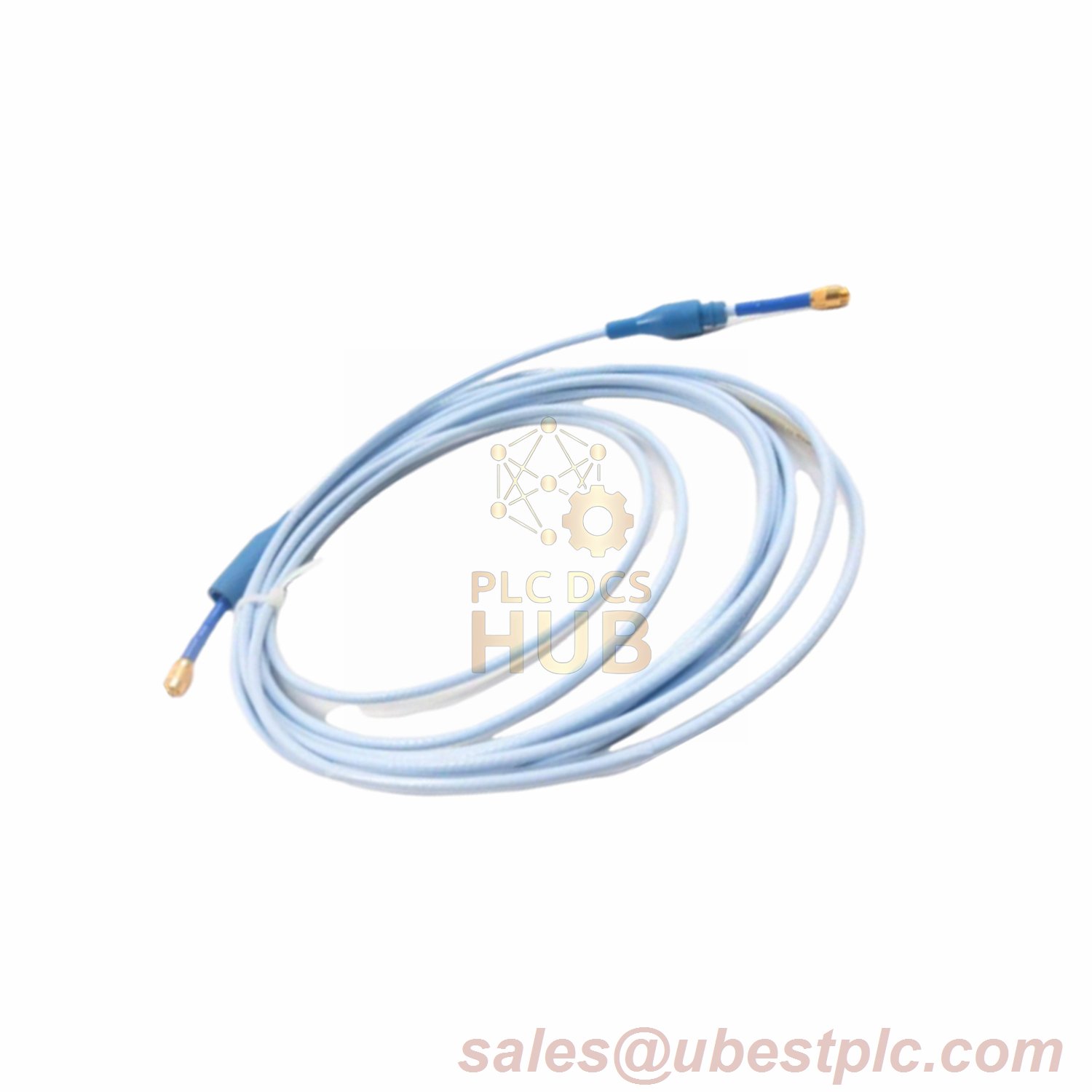

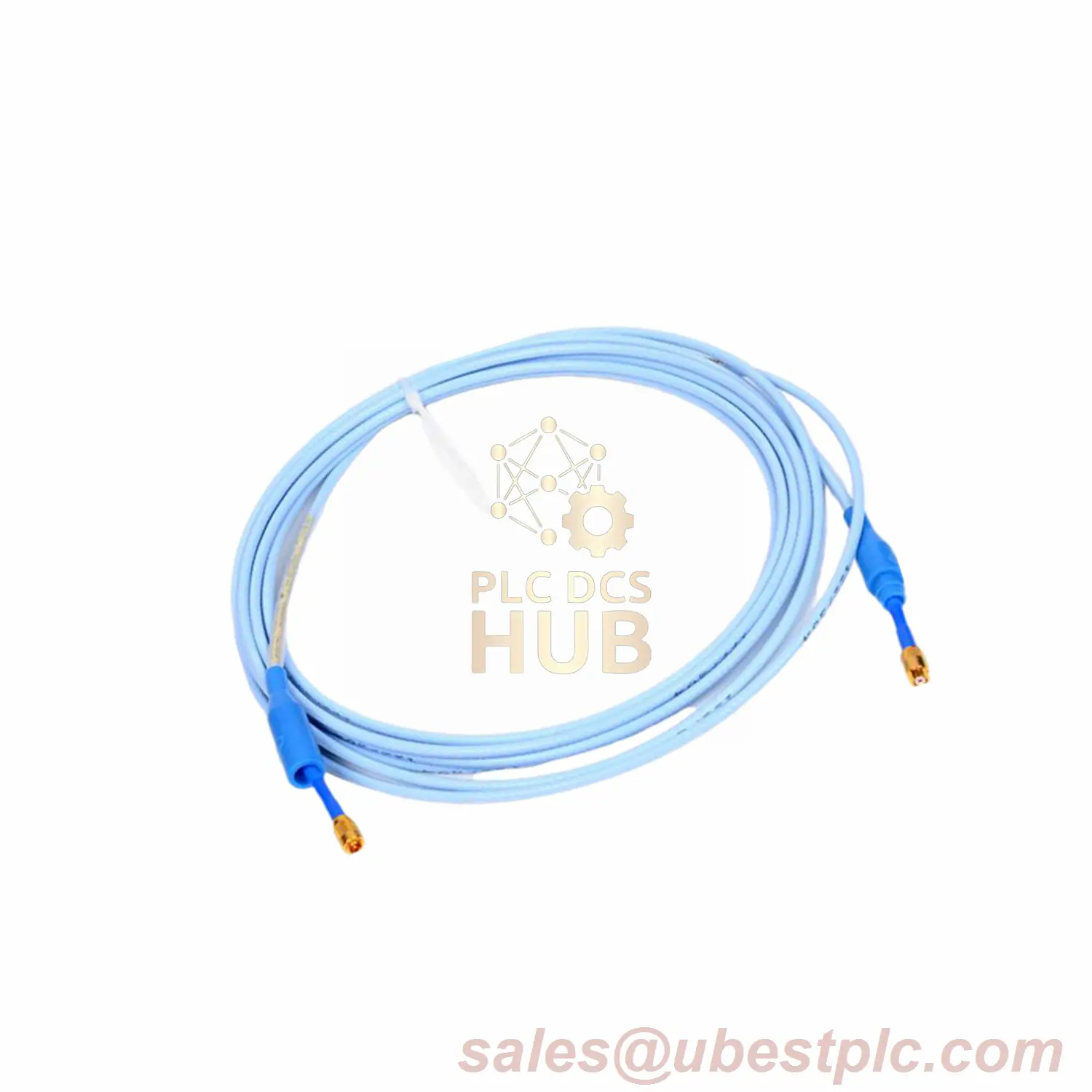

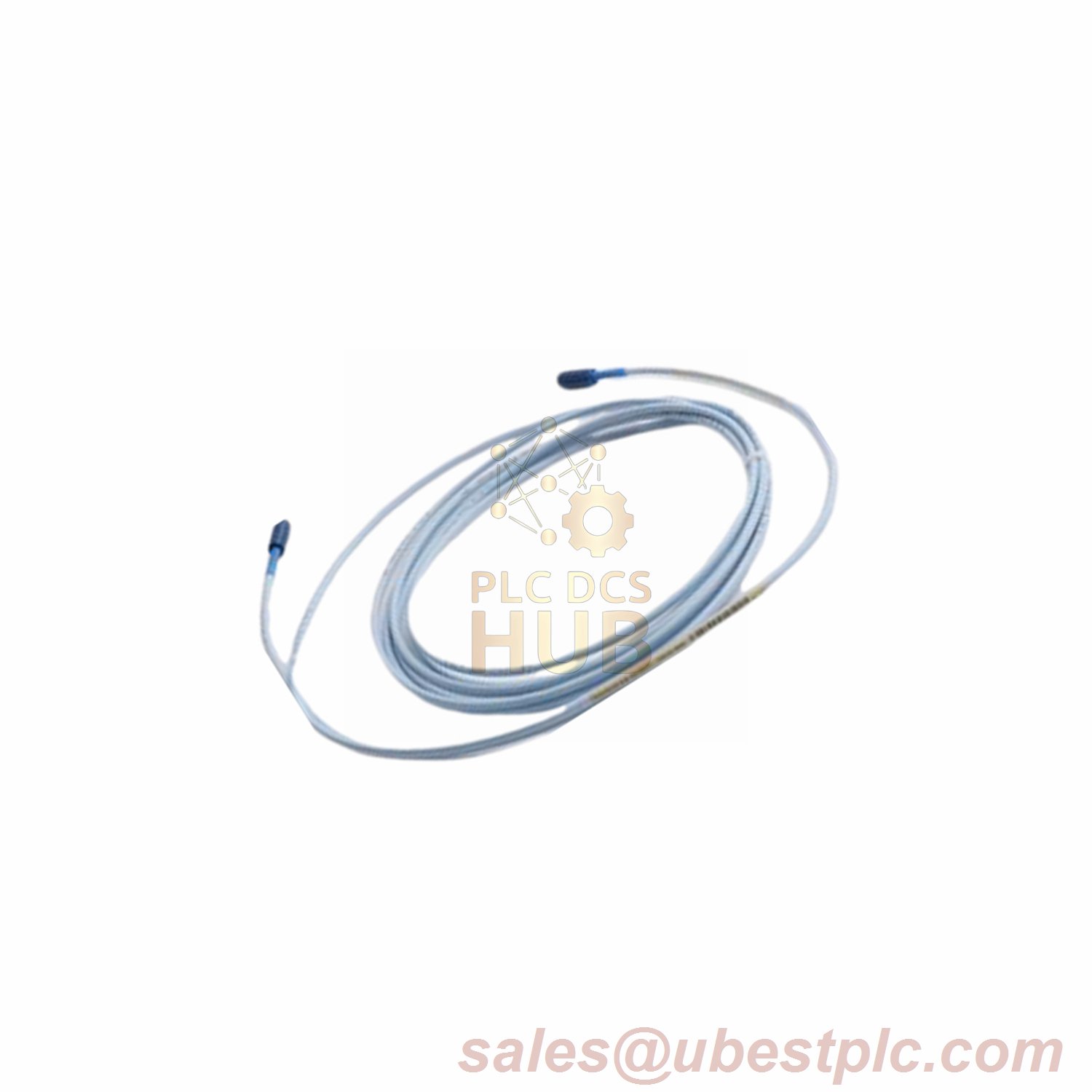

Bently Nevada 330130-070-12-00: FluidLoc Extension Cable

Key Features

• Oil-leak prevention: FluidLoc technology blocks fluid migration
• 330N pull strength: Patented CableLoc design
• Pre-installed protector: Connector included (option 12)
• Made in USA: Quality manufacturing

Full Product Identification

• Brand: Bently Nevada
• Full Model: 330130-070-12-00
• Length Code: 070 (7.0 meters/22.9 ft)
• Cable Code: 12 (FluidLoc with connector protector)
• Approvals Code: 00 (Not required)

Technical Specifications

• DC Resistance:
  • Center conductor: 1.54Ω ±0.23Ω
  • Outer conductor: 0.46Ω ±0.09Ω
• Capacitance: 69.9 pF/m
• Linear Range: 0.25-2.3mm (10-90 mils)
• Operating Voltage: -17.5Vdc to -26Vdc
• Output Resistance: 50Ω
• Humidity Resistance: <3% ASF change (93% humidity)

Installation Guide

• Use with AISI 4140 steel targets at 1.27mm gap
• Field wiring: 0.2-1.5mm² (16-24 AWG), max 305m
• Recommended: 3-conductor shielded triad cable
• Operating temp: +18°C to +27°C (+64°F to +80°F)

Compatibility

• Designed for 3300 XL 8mm proximity systems
• Sealed with Viton® O-ring (pressure testing available on request)
• Includes silicone tape for non-oil environments

Certifications

Approvals not required (00 suffix)

Packaging Includes

• 1x 7.0m FluidLoc extension cable
• Pre-installed connector protector
• Silicone tape roll

Warranty & Shipping

• 12-month warranty
• Global shipping: FedEx | UPS | DHL

Industry Applications

• Steam turbines: Shaft vibration monitoring
• Oil refineries: Pump bearing protection
• Power plants: Generator condition monitoring

FAQ

• Q: Does this prevent oil leaks?
  A: Yes – FluidLoc blocks internal fluid migration.
• Q: Is the connector included?
  A: Yes – option 12 includes pre-installed protector.
• Q: Pressure rating?
  A: Contact for custom pressure testing.
