Bently Nevada Premium Armored Extension Cable for Precision Vibration Monitoring
Description

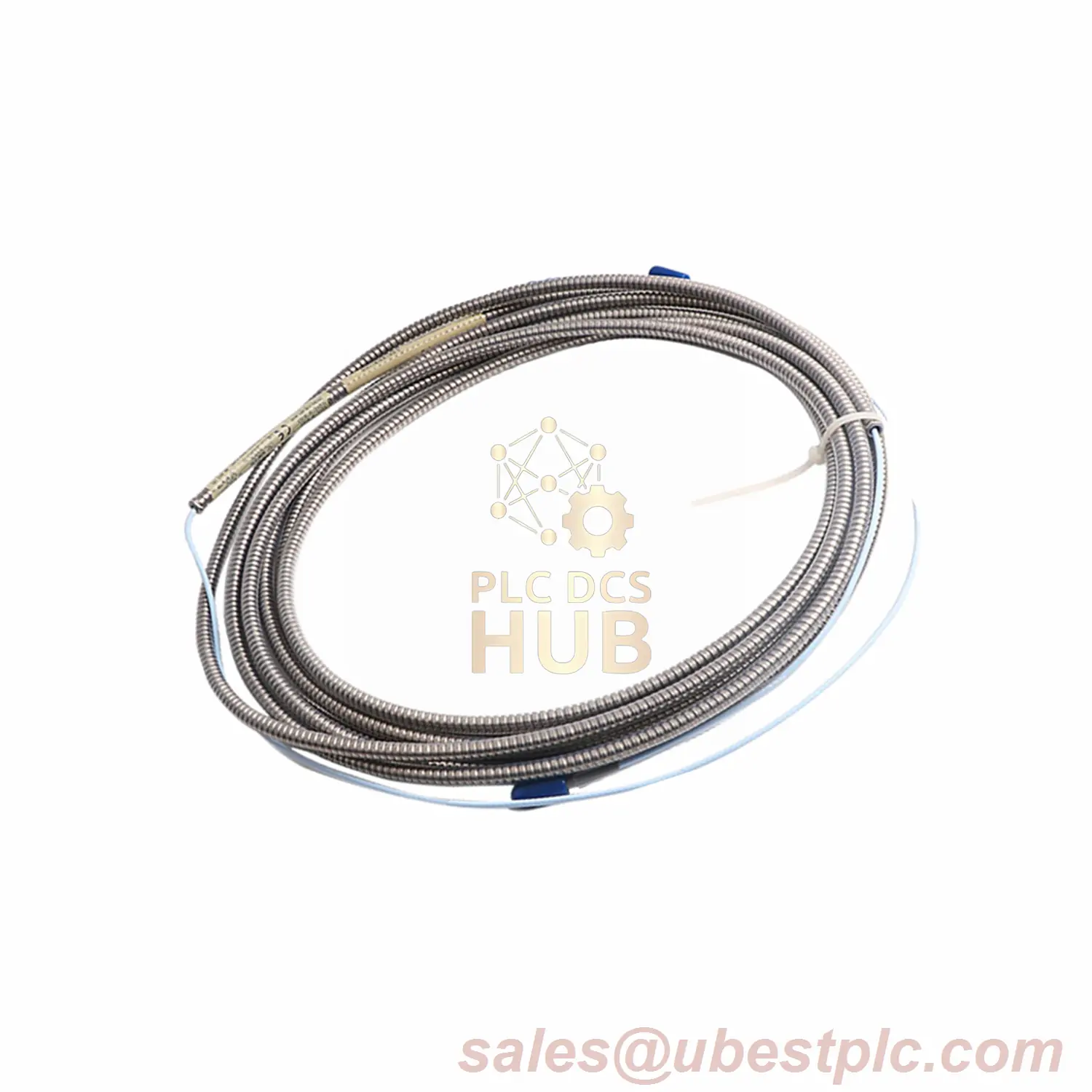

This 7.5-meter armored extension cable (P/N: 330130-075-03-00) connects 3300-series proximity probes to monitoring systems in harsh industrial environments. Featuring gold-plated ClickLoc® connectors and 330N pull strength, it ensures reliable data transmission in oil/gas, power generation, and heavy machinery applications. Includes silicone tape for connector protection.
Technical Data
- Brand: Bently Nevada
- Model: 330130-075-03-00
- Series: 3300 XL
- Length: 7.5m (24.6 ft)
- Cable Type: Armored with connector protector
- Compatibility: 5mm/8mm Proximity Probes
- Power: -17.5 to -26 VDC
- Output: 50Ω resistance
- Capacitance: 69.9 pF/m
- Weight: 0.618 kg (armored)
- Operating Temp: +18°C to +27°C
Installation Guide
- Use 3-conductor shielded triad cable (16-24 AWG)
- Max field wiring: 305m (1,000 ft)
- Apply included silicone tape if NOT exposed to turbine oil
- Ensure probe gap: 1.27mm (50 mils)
Diagnostic & Maintenance
- Check connector seals for fluid intrusion
- Verify DC resistance: Core 1.65Ω ±0.25, Jacket 0.49Ω ±0.10
- Monitor output sensitivity: <2mV/V change
Packaging Includes
- 1x Armored Extension Cable
- Silicone tape kit
- Installation manual
Shipping Options
FedEx | UPS | DHL – Global delivery available
FAQ
Q: Is this compatible with 3300 XL 8mm probes?
A: Yes – designed for all 3300-series probes.
Q: Can I use silicone tape in oil environments?
A: No – use connector protectors for oil exposure.
Q: What’s the maximum operating voltage?
A: -26 VDC with barriers, -17.5 VDC without.
