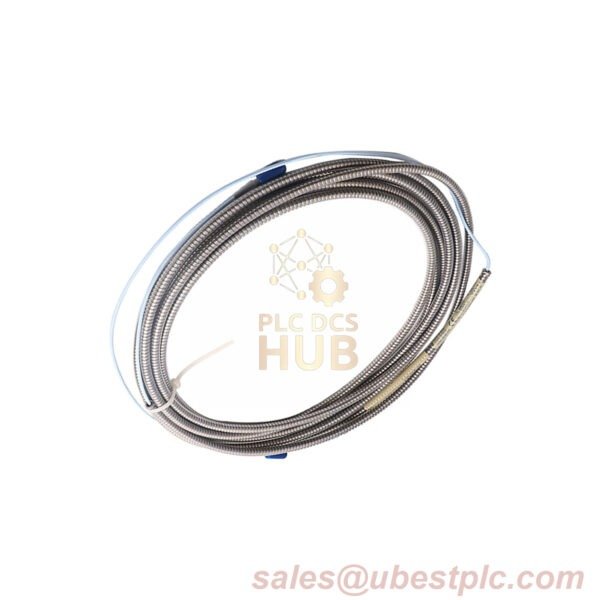

330130-080-11-05 Bently Nevada | 3300 XL Extension Cable

Description

Bently Nevada 3300 XL Extension Cable 330130-080-11-05 – Premium Industrial Monitoring Solution

Description

Designed for reliable industrial machinery monitoring, this Bently Nevada 3300 XL Extension Cable (Model: 330130-080-11-05) connects probes and monitors in critical setups. With patented TipLoc and CableLoc technologies, plus an armored FluidLoc design, it resists oil leaks and ensures secure connections—ideal for turbines, compressors, and rotating equipment.

Technical Data

• Brand: Bently Nevada
• Model: 330130-080-11-05
• Product Series: 3300 XL
• Type: Extension Cable
• Origin: Made in U.S.A.
• Certificate: Optional Certificate of Origin (COO) available

Key Specifications

• Length: 8.0 meters (26.2 feet)
• Weight:
  – Standard: 34 g/m (0.4 oz/ft) | Total: 0.272 kg
  – Armored: 103 g/m (1.5 oz/ft) | Total: 0.824 kg
• DC Resistance:
  – Center Conductor (RCORE): 1.76 ± 0.26 Ω (8m)
  – Outer Conductor (RJACKET): 0.53 ± 0.11 Ω (8m)
• Capacitance: 69.9 pF/m (21.3 pF/ft) (typical)
• Power Supply: -17.5 Vdc to -26 Vdc (nonincendive); -23 Vdc to -26 Vdc (with barriers)
• Linear Range: 0.25-2.3 mm (10-90 mils)

Installation Guide

• Length Match: Ensure total length of extension cable + probe = Proximitor Sensor length.
• Wiring: Use 3-conductor shielded triad cable (0.2-1.5 mm² / 16-24 AWG). Max field wiring length: 305m (1,000ft).

Diagnostic & Maintenance

• Avoid silicone tape in turbine oil environments—use included connector protectors instead.
• Check for cable damage or loose connections regularly.

Packaging & Shipping

• Package Includes: Extension cable, silicone tape (for temporary use).
• Shipping Methods: Fedex, UPS, DHL (1-3 business days delivery).

FAQ

• Q: Is the cable oil-resistant?
  A: The Armored FluidLoc design prevents oil leaks, but silicone tape isn’t recommended for turbine oil.
• Q: What’s the working temperature range?
  A: Designed for 18°C-27°C (+64°F-+80°F) under standard conditions.
