Description

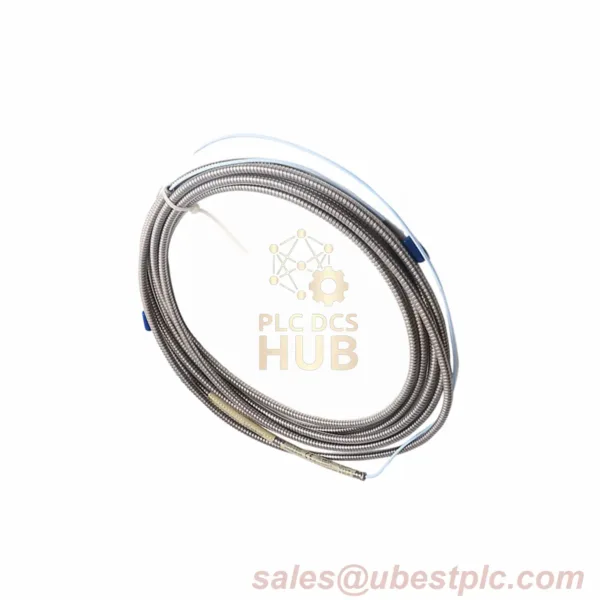

Bently Nevada Armored FluidLoc Extension Cable: Precision Connectivity for Harsh Environments
Product Description
Premium extension cable for vibration monitoring systems with armored FluidLoc® technology. Designed for 3300-series proximity sensors in oil/gas, power generation, and heavy machinery. Prevents fluid ingress and withstands 330N pull force. Made in USA with corrosion-resistant gold connectors.
Key Specifications
- Brand: Bently Nevada
- Full Model: 330130-080-13-05
- Suffix Breakdown:
080=8m length,
13=Armored FluidLoc,
05=CSA/ATEX/IECEx - Range: 0.25-2.3mm (10-90 mils)
- Accuracy: <3% ASF change in 93% humidity
- Output Signal: -1 to -17V DC
- Operating Temp: +18°C to +27°C
- Weight: 0.618 kg (armored)
Technical Highlights
- Power: -17.5V to -26V DC (12mA max)
- Capacitance: 69.9 pF/m typical
- Resistance: Core 1.76Ω ±0.26 | Jacket 0.53Ω ±0.11
- Connectors: Gold-plated ClickLoc®
- Sealing: Viton® O-ring (oil resistant)
- Cable Pull Strength: 330N (75 lbf)
Compatibility Guide
- 3300-series 5mm/8mm proximity probes
- 3300 XL 8mm Proximitor sensors
- AISI 4140 steel targets only
- Requires 10kΩ load minimum
Installation Notes
- Max field wiring: 305m (1,000 ft)
- Use 3-conductor shielded triad cable (0.2-1.5mm²)
- Gap probe at 1.27mm (50 mils)
- Includes silicone tape (not for turbine oil applications)
Package & Warranty
- 1x Extension cable with pre-installed connector protector
- 1x Silicone tape set
- 12-month manufacturer warranty
- Shipping: FedEx/UPS/DHL (global express)
FAQ
- Q: Does this work with 5mm probes?
A: Yes, compatible with all 3300-series 5mm/8mm probes - Q: Can it handle oil exposure?
A: FluidLoc® design prevents internal oil migration - Q: What’s the lead time?
A: Ships in 24hrs via express courier
