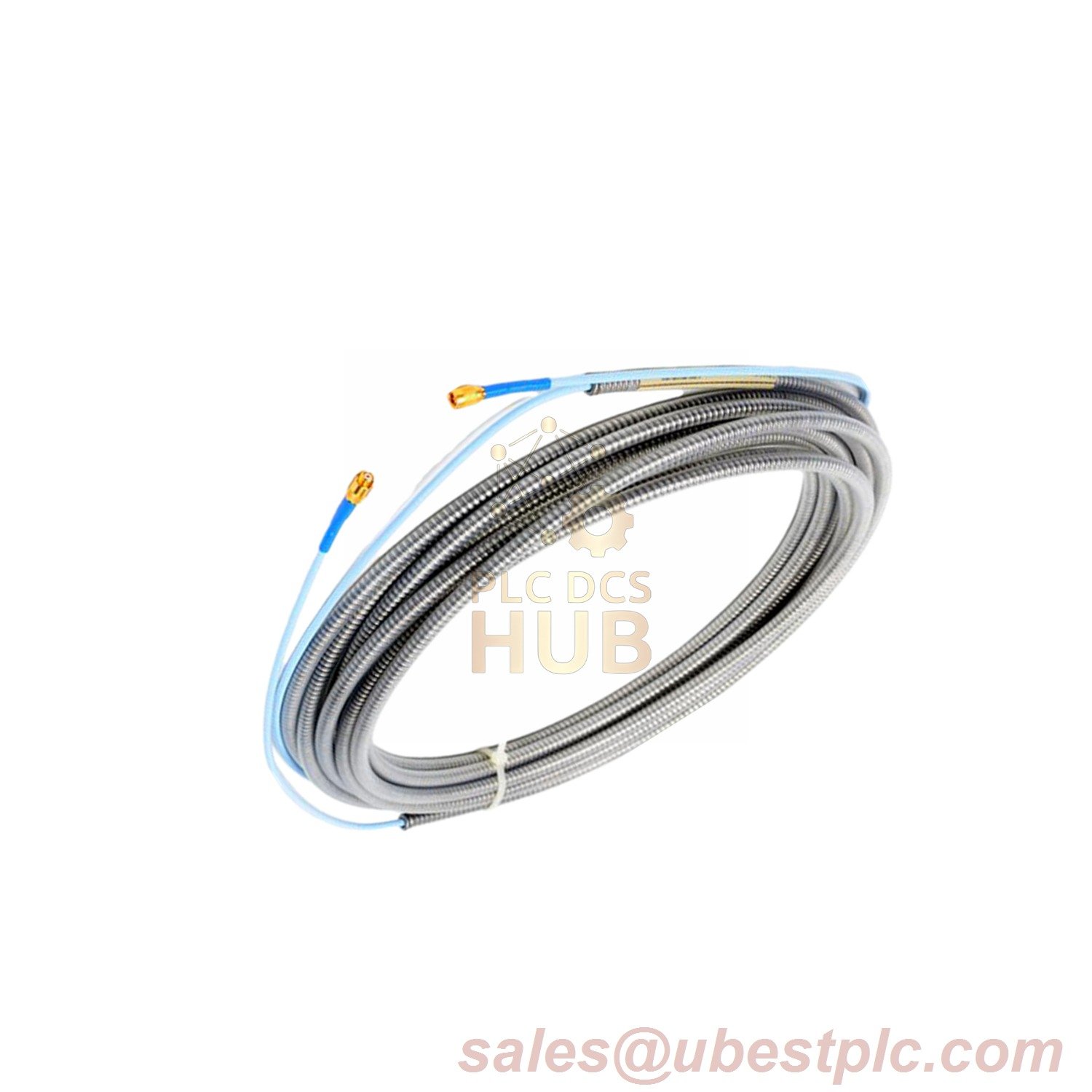

Bently Nevada Armored Extension Cable: Reliable Vibration Monitoring Solution
Essential Product Details
Industrial-grade 8.5m armored cable for precision machinery monitoring. Made in USA with corrosion-resistant gold connectors. Ideal for non-hazardous environments requiring reliable vibration data.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330130-085-01-00
- Suffix Decoder:
085=8.5m length,
01=Armored cable,
00=Standard - Measurement Range: 0.25-2.3mm
- Humidity Resistance: <3% change in 93% humidity
- Output Signal: -1V to -17V DC
- Temp Range: 18°C to 27°C (64°F to 80°F)
- Cable Weight: 0.875 kg
Performance Features
- Cable Strength: 330N (75 lbf) pull resistance
- Power Needs: -17.5V to -26V DC operation
- Core Resistance: 1.87Ω ±0.28
- Jacket Resistance: 0.56Ω ±0.11
- Capacitance: 69.9 pF/m
- Sealing: Viton® O-ring protection
Works With
- All 3300-series 5mm/8mm proximity probes
- 3300 XL Proximitor sensors
- Machinery with AISI 4140 steel components
- 10kΩ minimum load systems
Easy Installation
- Max distance to monitor: 305m (1,000 ft)
- Use shielded triad cable (16-24 AWG)
- Set probe gap at 1.27mm (50 mils)
- Includes silicone tape for connections
Shipping & Support
- Package Includes: Armored cable + silicone tape set
- Warranty: 12 months full coverage
- Global Shipping: FedEx, UPS, DHL options
Common Questions
- Q: Oil-resistant?
A: Viton® seals protect against oils - Q: Works with older monitors?
A: Compatible with all 3300-series systems - Q: Delivery time?
A: Ships same day with tracking
