Description

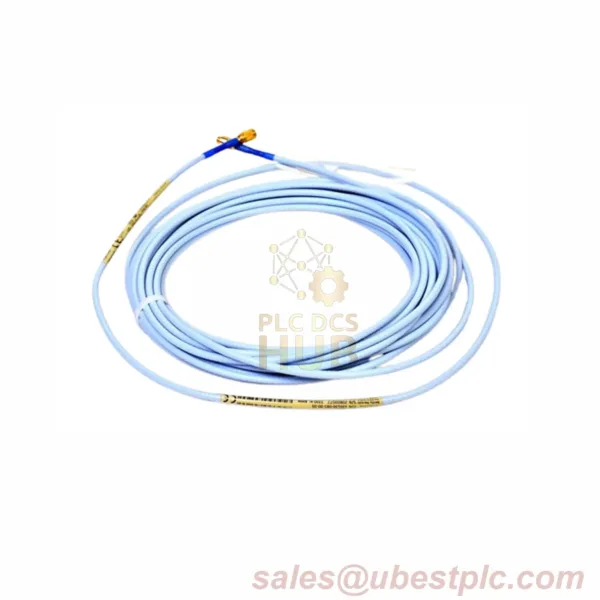

Bently Nevada Standard Extension Cable with Connector Protector
Quick Overview
8.5-meter industrial cable for vibration monitoring systems. Made in USA with gold connectors and pull-resistant design. Perfect for general machinery applications.
Core Specifications
- Manufacturer: Bently Nevada
- Complete Model: 330130-085-02-00
- Configuration:
085 = 8.5m length,
02 = Standard cable with protector,
00 = No special approvals - Weight: 0.289 kg
- Temperature Range: 18°C to 27°C
- Humidity Performance: Less than 3% change after 56 days at 93% humidity
Electrical Properties
- Power Requirement: -17.5V to -26V DC
- Current Draw: 12mA maximum
- Core Resistance: 1.87Ω ±0.28
- Shield Resistance: 0.56Ω ±0.11
- Capacitance: 69.9 pF per meter
- Output Range: -1V to -17V DC
Physical Features
- Cable Strength: Withstands 330N pulling force
- Sealing: Viton O-ring seals
- Connectors: Gold-plated corrosion-resistant
- Protection: Includes connector protector
- Length Accuracy: ±0.5% tolerance
Compatible Equipment
- 3300-series 5mm proximity probes
- 3300 XL 8mm sensors
- Machinery with AISI 4140 steel targets
- Systems using 10kΩ load minimum
Installation Guide
- Maximum wiring distance: 305 meters
- Recommended gap setting: 1.27mm
- Use 16-24 AWG shielded cable
- Total probe + cable length must match system requirements
Packaging & Delivery
- 1x Extension cable with protector
- 1x Silicone tape set
- 12-month manufacturer warranty
- Express shipping: FedEx/UPS/DHL options
- COO available on request
