Description

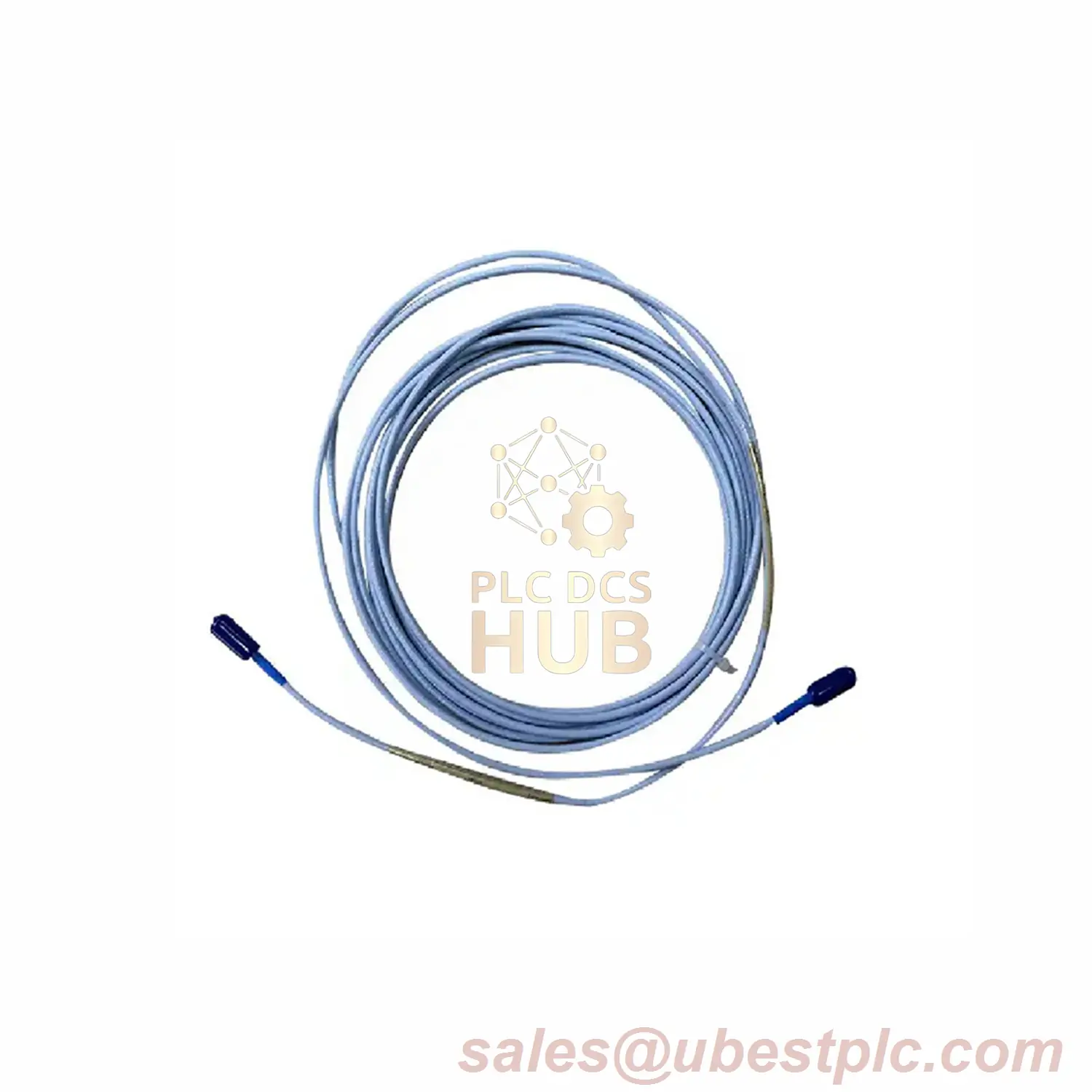

Bently Nevada FluidLoc™ Extension Cable: 330130-085-10-05
Premium oil-resistant 8.5m cable with ATEX/IECEx certification. Made in USA for critical machinery monitoring.
Technical Specifications
| Series | 3300 XL Proximity System |
| Full Product ID | 330130-085-10-05 |
| ID Breakdown | 330130: Base Product -085: 8.5m Length -10: FluidLoc Cable -05: CSA/ATEX/IECEx |
| Electrical Properties | Core Resistance: 1.87Ω ±0.28Ω Jacket Resistance: 0.56Ω ±0.11Ω Capacitance: 69.9 pF/m |
| Environmental | Humidity: <3% ASF change (93% RH/56 days) Altitude: 2000m max Sealing: Viton® O-ring |
| Physical | Weight: 0.618kg (armored) Bend Radius: 8x cable diameter Temperature: -40°C to +125°C operational |
System Integration
- Compatible probes: 5mm, 8mm standard & XL series
- Power requirement: -17.5Vdc to -26Vdc (-23Vdc min with barriers)
- Max field wiring: 305m (1000ft) shielded triad cable
- Output signal: -1Vdc to -17Vdc (50Ω resistance)
Performance Validation
- Tested with AISI 4140 steel target
- Calibration stability: ±0.5% over 6 months
- Vibration resistance: 15g @ 2000Hz
- EMC compliance: EN 61326-1
Technical FAQ
Q: What makes FluidLoc™ different?
A: Special core sealing prevents oil wicking through cable interior
Q: Is pressure testing available?
A: Custom testing up to 100bar upon request
Q: ClickLoc® connector advantage?
A: Audible click confirmation for proper mating
Q: Minimum bend radius?
A: 8x cable diameter for optimal performance
Q: Humidity tolerance?
A: <3% signal drift after 8 weeks in 93% humidity
