Description
Product Overview

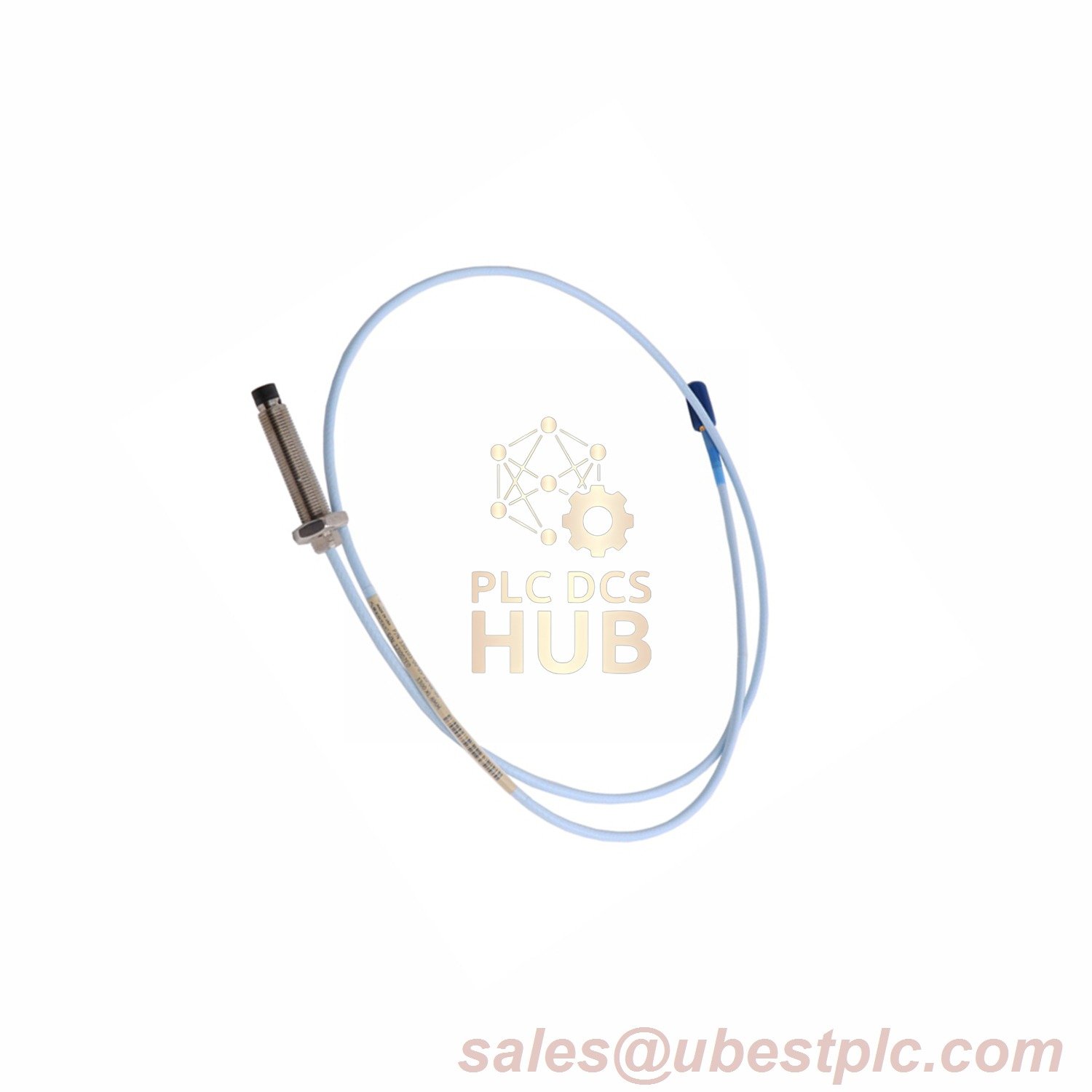

The Bently Nevada 330140-08-10-12-00 is a heavy-duty 8mm vibration probe featuring FluidLoc™ leak-proof cable and 0.8″ stainless steel housing. Designed for industrial applications, it operates from -52°C to +260°C, providing reliable monitoring in oil-rich environments without hazardous area certifications.
Technical Specifications
Manufacturer/Model: Bently Nevada 330140-08-10-12-00
Suffix Code Breakdown:
– 08: 20.3mm (0.8″) case length
– 10: 1.0m (3.3ft) total length
– 12: FluidLoc cable with ClickLoc connector
– 00: No agency certifications
Performance Data:
• DC Resistance: 7.59Ω ±0.5 @ 1.0m
• Linear Range: 0.25-1.75mm (±0.025mm)
• Frequency Response: 0.5Hz-10kHz (±3dB)
• Temperature Limits:
– Probe Tip: -52°C to +218°C
– Cable Assembly: -51°C to +260°C
• Cable Retention: 330N (75 lbf) pull strength
Material Specifications
Probe Tip: Polyphenylene sulfide (PPS)
Housing: AISI 304 stainless steel
Seal: Dual Viton® O-rings (10 bar rating)
