330140-08-15-11-05 – 3300 XL 8 mm Proximity Probes Bently Nevada

Description

Overview

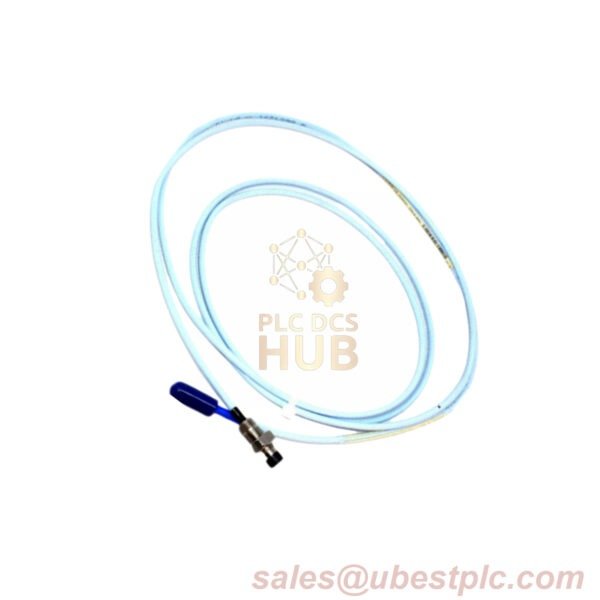

The Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-15-11-05) is a certified, high-precision sensor designed for hazardous and demanding industrial environments. Featuring CSA, ATEX, and IECEx approvals, this probe combines compliance with rugged reliability. Its 1.5-meter standard cable with a ClickLoc connector protector ensures secure connectivity in high-vibration applications, while the 8 mm PPS plastic tip and stainless steel casing resist physical stress.

Technical Specifications

• Brand: Bently Nevada
• Model: 330140-08-15-11-05
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 15: 1.5-meter cable (4.9 feet)
    • 11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
    • 05: CSA, ATEX, IECEx certifications
• Probe Tip: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 stainless steel
• Temperature Range:
  • Operating: -62°F to +350°F (-52°C to +177°C)
  • Extended: Tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
• Linearity Deviation: <±0.025 mm (±1 mil) for 1/5m systems
• Dielectric Strength: 1500 V AC for 60 seconds (conductor to shield)
• Signal-to-Noise Ratio: >80 dB at 10 kHz
• Salt Spray Resistance: 720 hours (ASTM B117)
• Connector Durability: 5,000 mating cycles
• Cable Jacket: Polyurethane (PU) for -40°C flexibility
• Storage Conditions: -60°F to +185°F (-51°C to +85°C), 5–95% humidity

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
