330171-00-08-50-02-CN 3300 5mm Probe Bently Nevada

Description

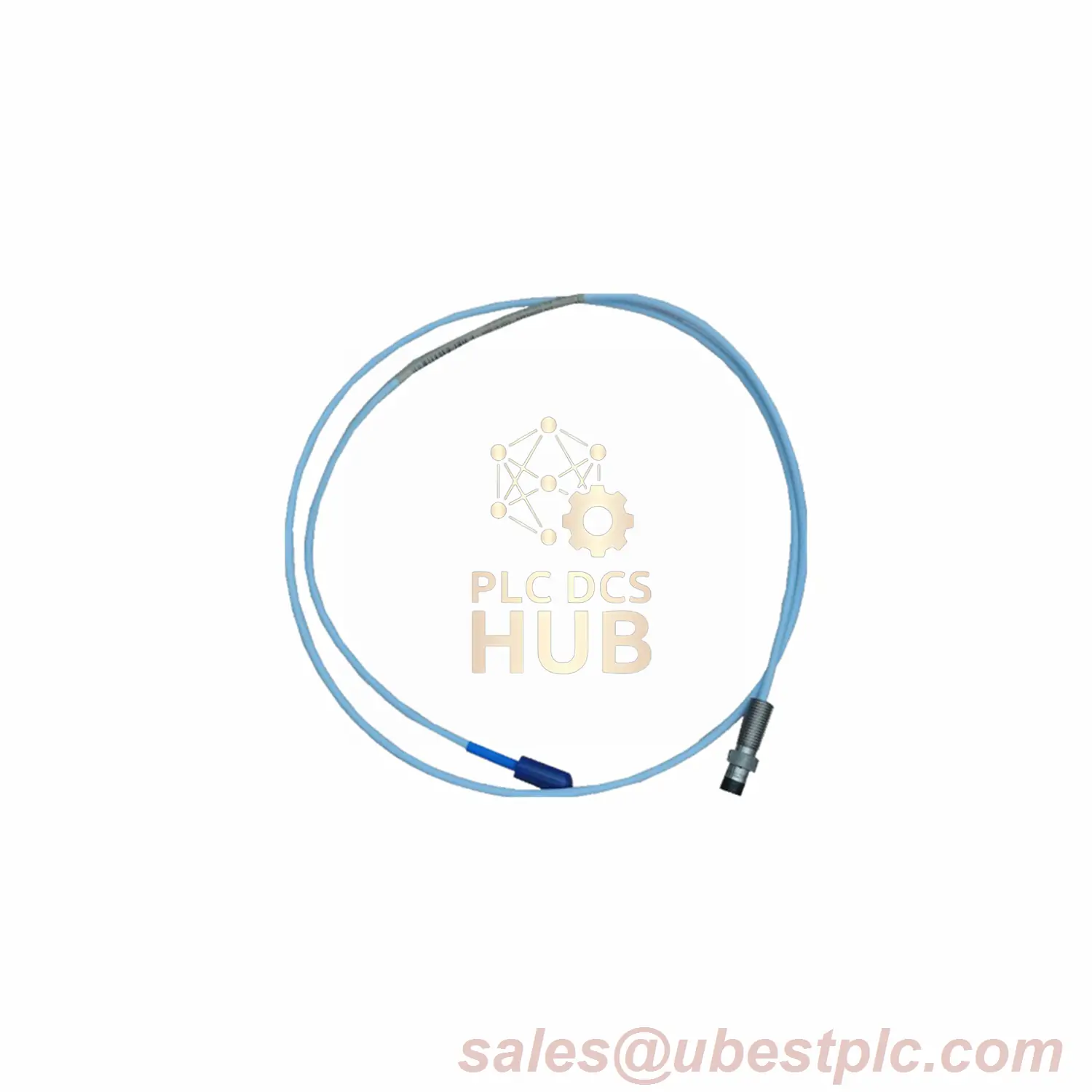

Bently Nevada 5mm Proximity Probe: Compact Precision for Critical Assets

Made in USA. Industrial-grade 5mm vibration sensor for tight-space monitoring in turbines, compressors, and high-speed machinery. Withstands extreme temperatures up to 177°C.

Model Configuration Breakdown

330171-00-08-50-02-CN
├── 00 : Unthreaded Length = 0 inches
├── 08 : Case Length = 0.8 inches
├── 50 : Cable Length = 5.0 meters (16.4 ft)
├── 02 : Connector = ClickLoc (standard cable)
└── CN : Country Specific Approvals

Advanced Technical Specifications

• Cable Resistance: 8.73Ω ±0.70 (center to outer conductor)
• Voltage Sensitivity: <2mV change per volt input fluctuation
• EMI Resistance: Gold-plated connectors prevent signal interference
• Seal Integrity: Maintains performance at 100% humidity
• Vibration Tolerance: Stable readings at 10g vibration levels

Model Comparison

Rugged Design Features

• Tip Material: PPS polymer (chemical/heat resistant)
• Body: AISI 304 stainless steel
• Insulation: FEP triaxial cable
• Connector: ClickLoc with positive lock
• Seal: Pressure-rated (avoid below -34°C)

Installation Guide

• Mounting thread: 1/4-28 UNF
• Recommended tap drill: #3 or larger
• Optimal torque: 5.1 N·m (45 in-lb)
• Minimum bend radius: 25.4mm (1 inch)

Order & Delivery

• Includes: Probe with ClickLoc connector
• Warranty: 12 months against defects
• Shipping: FedEx/UPS/DHL (2-5 days global)

Common Questions

• Q: Minimum install temperature?
  A: -35°C but avoid below -34°C to protect seals
• Q: Power requirements?
  A: -17.5Vdc to -26Vdc (12mA max)
• Q: Compatible with 3300 monitors?
  A: Yes – works with all 3300 series systems
• Q: Chemical resistance?
  A: PPS tip resists most industrial chemicals
