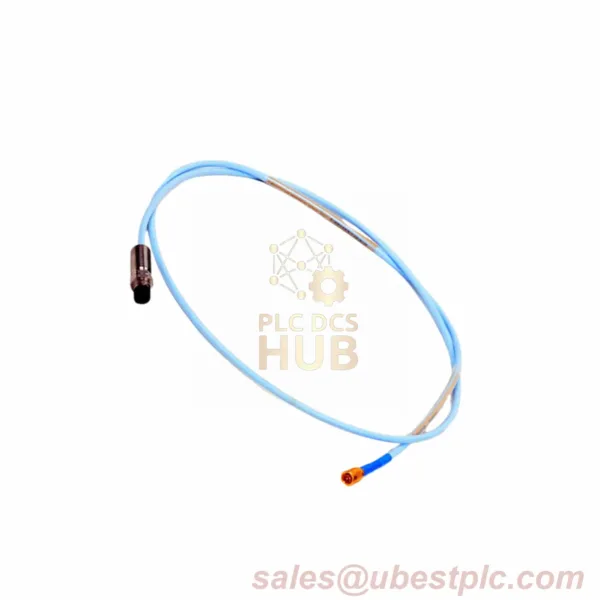

Bently Nevada 330171-00-30-10-02-00 Vibration Monitor
Precision Machine Guardian
Made in USA 5mm vibration sensor for industrial equipment. Features 3-inch case and 1m cable. 12-month warranty. Global FedEx/UPS/DHL shipping.
Core Specifications
- Brand: Bently Nevada
- Model: 330171-00-30-10-02-00
- System: 3300 Series
- Cable: 1.0 meter (3.3 ft)
- Resistance: 7.59Ω ±0.50Ω
- Power: -17.5V to -26V DC
- Current: Max 12mA
Model Code Structure
- 330171 – Base Model
- 00 – Unthreaded Length (0 in)
- 30 – Case Length (3 in)
- 10 – Cable Length (1.0 m)
- 02 – ClickLoc Connector
- 00 – No Agency Approval
Physical Properties
- Thread: 1/4-28 UNF
- Material: Stainless Steel AISI 304
- Tip: PPS Plastic
- Weight: 0.323 kg
- Bend Radius: >25.4mm (1 in)
- Torque: 45 in-lb (5.1 N·m)
Performance Data
- Temp Range: -35°C to +177°C
- Voltage Sensitivity: <2mV/V
- Tensile Strength: 222N (50 lbf)
- Min Temp Warning: Avoid below -34°C
Installation Tips
Use #3 tap drill size. Max thread engagement 0.375 in. Keep away from extreme cold. Tighten to 45 in-lb.
Package Contents
- Vibration probe
- 12-month warranty
Alternative Models
| Model | Cable Length | Case Length | Special Feature |
|---|---|---|---|
| 330171-00-20-90-02-00 | 9.0m (29.5ft) | 2.0in | Long distance |
| 330171-00-08-50-02-CN | 5.0m (16.4ft) | 0.8in | Compact design |
| This Model | 1.0m (3.3ft) | 3.0in | Standard length |
Quick Answers
Q: What power supply needed?
A: -17.5V to -26V DC power
Q: Chemical resistance?
A: Resists oils and industrial fluids
Q: Cable type?
A: 75Ω triaxial FEP insulation
Q: Shipping time?
A: Fast global delivery via major carriers
