330171-00-32-05-01-CN Bently Nevada Proximity Probes Without Armor

Description

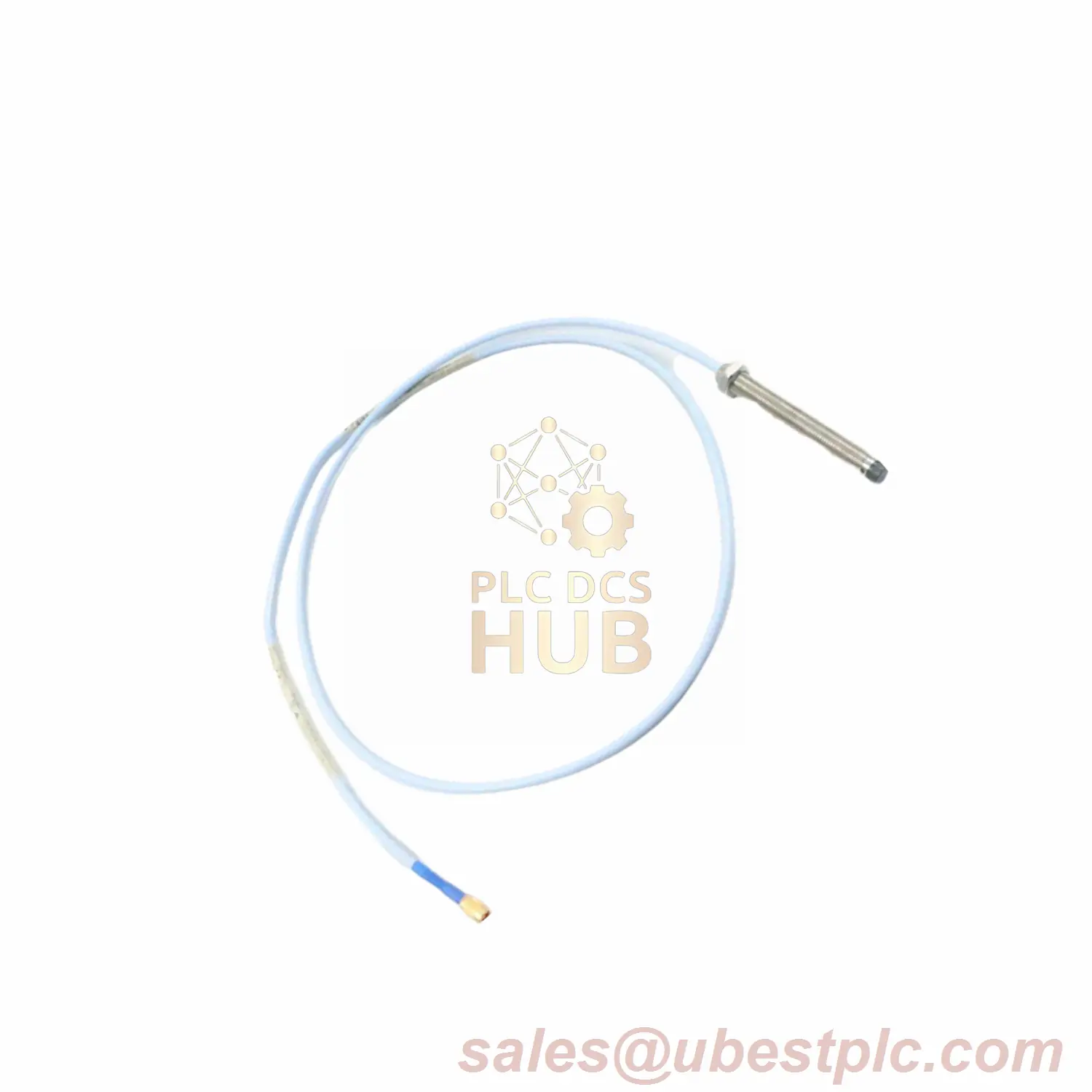

Bently Nevada 330171-00-32-05-01-CN 5mm Proximity Probe

Precision vibration monitoring for industrial machinery. 1/4-28 UNF thread, PPS tip, stainless steel housing. Made in USA with COO available.

Part Number Breakdown

• 330171: 3300 Series 5mm Probe
• 00: 0″ unthreaded length
• 32: 3.2″ overall case length
• 05: 0.5m cable length
• 01: ClickLoc coaxial connector
• CN: Country-specific approvals

Key Specifications

• Diameter: 5mm
• Thread: 1/4-28 UNF
• Tip Material: PPS (Polyphenylene sulfide)
• Case Material: AISI 304 stainless steel
• Voltage Range: -17.5 to -26 VDC
• Current Draw: ≤12 mA
• Temp Range: -35°C to +177°C (-31°F to +351°F)
• Cable Type: 75Ω triaxial FEP
• Bend Radius: ≥25.4mm (1″)

Enhanced Technical Data

• Output Impedance: 50Ω ±5%
• DC Resistance: 7.45Ω ±0.50 (center to outer conductor)
• Torque Limits:
  • Probe: 5.1 N·m recommended (7.3 N·m max)
  • Connector: 0.565 N·m max
• Tensile Strength: 222N (50 lbf) cable pull
• Null Voltage: -12V ±1V @1.27mm gap
• Phase Shift: <3° @ 5 kHz

Installation Guide

• Use #3 or larger tap drill for 1/4-28 threads
• Max thread engagement: 0.375″ (9.5mm)
• Maintain 1.27mm (50 mil) target gap
• Observe cable bend radius >1″
• Apply anti-seize compound on threads

Package Includes

• 1 × 330171-00-32-05-01-CN probe
• ClickLoc connector protector
• Installation manual
• 12-month manufacturer warranty

Model Comparison

FAQ

Q: Is this probe explosion-proof?
A: No, standard industrial version (for hazardous areas consider ATEX models)

Q: Minimum target size requirement?
A: 1.5× probe diameter (7.5mm minimum)

Q: Can I use this with 3300 XL systems?
A: Yes, fully compatible with 3300 monitoring systems
