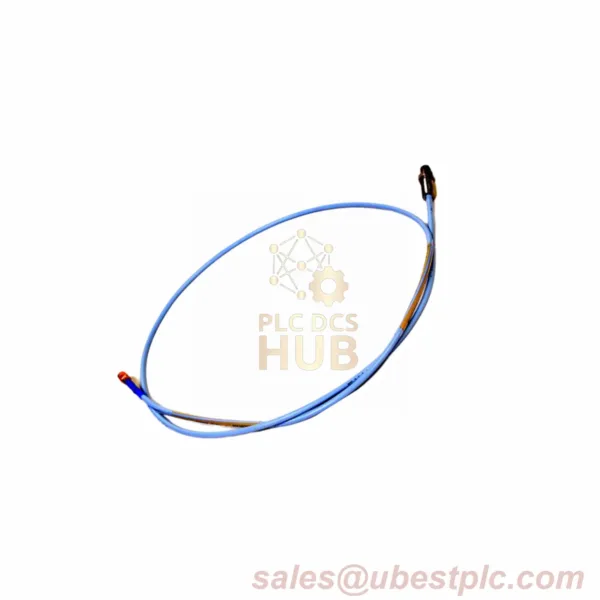

Bently Nevada 5mm Proximity Probe: Advanced Machinery Health Monitoring
Technical Specifications
Product Identification
- Manufacturer: Bently Nevada
- Full Part Number: 330171-12-23-10-01-05
- Origin: Made in USA
- Weight: 0.323 kg
Electrical Performance
- Power Requirement: -17.5 to -26 VDC
- Output Resistance: 50 Ω
- Probe Resistance: 7.59 ± 0.50 Ω
- Current Draw: <12 mA
Suffix Configuration Breakdown
- 12: Unthreaded length = 1.2″
- 23: Case length = 2.3″
- 10: Cable length = 1.0m (3.3 ft)
- 01: ClickLoc connector with protector
- 05: Multiple agency approvals
Installation & Maintenance
Mechanical Specifications
- Thread: 1/4-28 UNF
- Max Thread Engagement: 0.375″
- Recommended Tap Drill: #3 or larger
- Case Torque: 5.1 N·m (45 in-lb)
Operational Limits
- Min. Bend Radius: 25.4 mm (1.0″)
- Connector Torque: 0.565 N·m max
- Temp Warning: Avoid < -34°C
- Tensile Strength: 222N (50 lbf)
Packaging & Support
- Contents: Probe with 1.0m cable, connector protector
- Certification: Optional COO available
- Warranty: 12 months manufacturing defects
- Shipping: FedEx/UPS/DHL with tracking
Technical FAQ
Q: What’s the maximum cable length?
A: Available up to 9 meters (29.5 ft)
Q: Compatible with non-steel targets?
A: Optimized for AISI 4140 steel
Q: IP rating for harsh environments?
A: Equivalent to IP67 when properly installed
Q: Calibration frequency?
A: Factory calibrated – no routine field calibration needed
