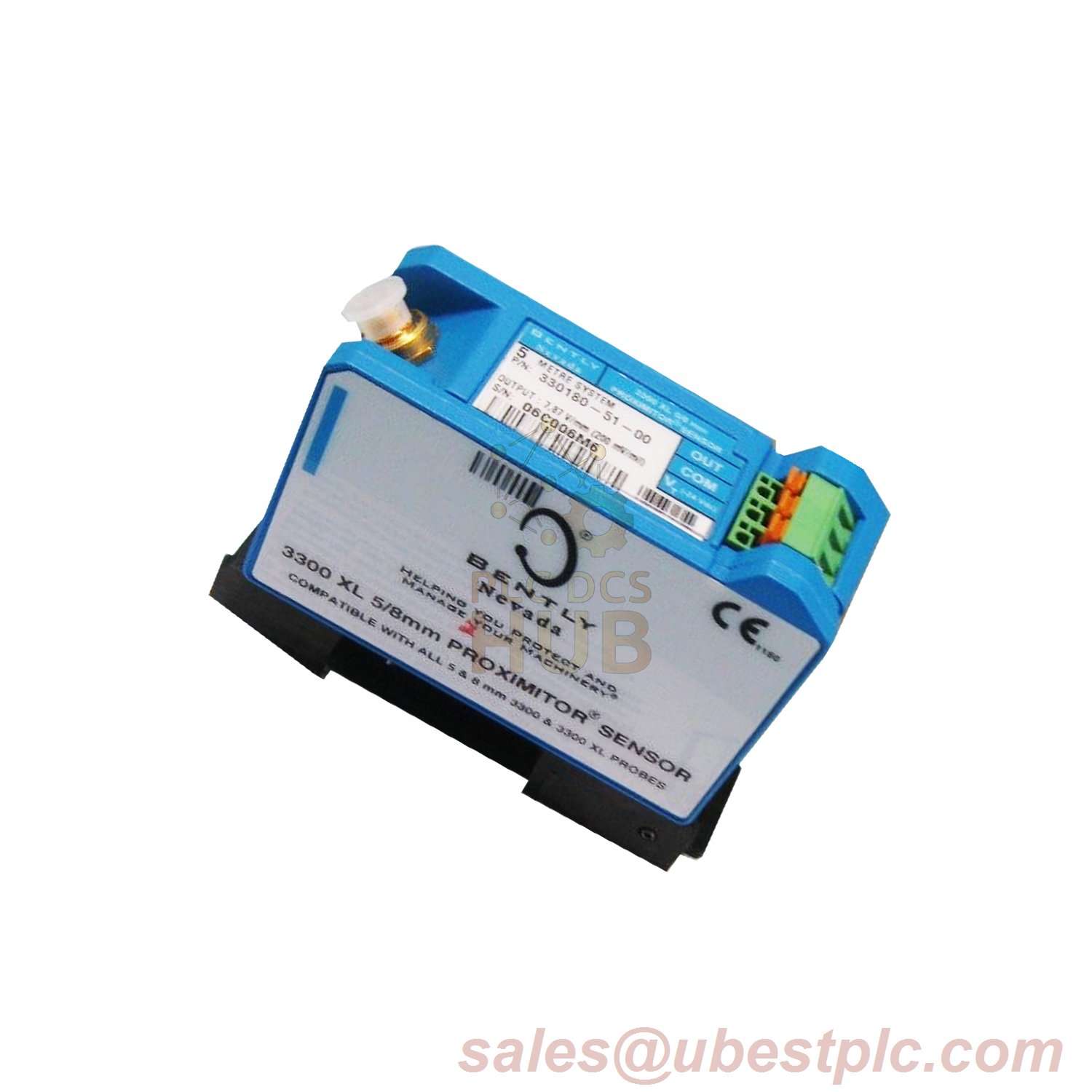

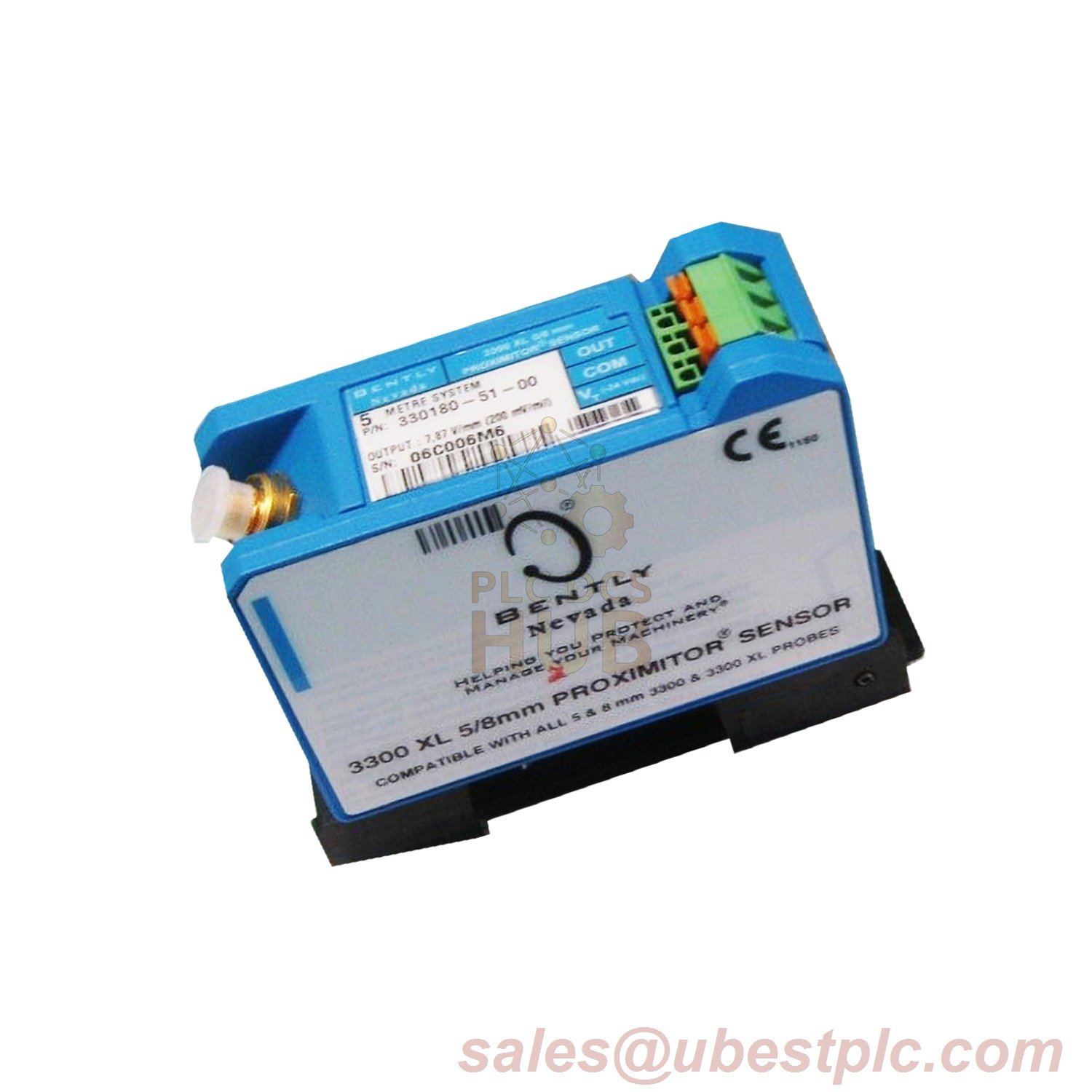

The 330180-51-00 is a versatile proximity sensor system designed for industrial vibration monitoring. Featuring a 5.0-meter system length and DIN-rail mounting, it combines extended reach with easy installation in non-hazardous environments. Engineered with CE-compliant RFI/EMI immunity, it eliminates the need for shielded conduit while maintaining precision in fiberglass housings.
Technical Specifications
| Model | 330180-51-00 |
|---|---|
| Suffix Codes | 51: 5.0 m system length + DIN mount 00: No agency certifications required |
| Input Compatibility | 3300-series 5 mm & 8 mm probes with extension cables |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) | -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
| Material | A308 aluminum housing | Gold-plated brass/beryllium copper connectors |
| Temperature Range | -52°C to +100°C (operating) | -52°C to +105°C (storage) |
| Weight | 246 g (8.67 oz) |
Installation Advantages
- RFI/EMI Immunity: Operates reliably in fiberglass housings near RF sources (CE compliant).
- Electrical Isolation: Integrated isolator eliminates external plates for simplified mounting.
- Voltage Advisory: Maintain ≥-23.5 Vdc input to preserve linear measurement range.
