Description
Description

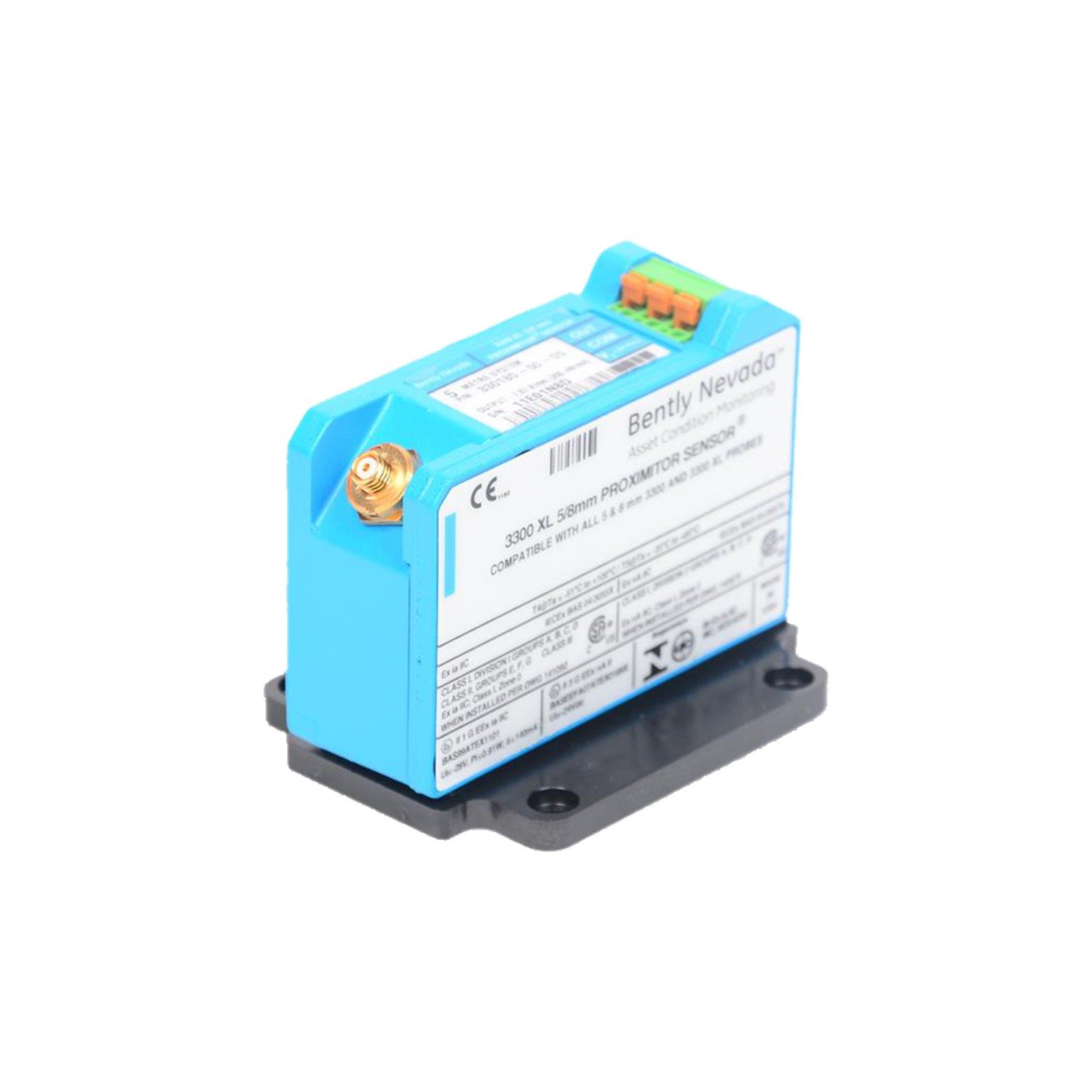

The 330180-51-05 is a hazardous area-certified proximity sensor system designed for long-range industrial monitoring in explosive environments. Featuring a 5.0-meter system length and DIN-rail mounting, it combines extended reach with CSA/ATEX/IECEx compliance. Engineered for CE-compliant RFI immunity without shielded conduit, it excels in fiberglass enclosures near RF sources.
Key Features
- Explosion-Proof Design: ATEX, IECEx, CSA approvals for Zone 1/21 hazardous areas.
- Extended Range: 5.0 m (16.4 ft) system length for large machinery monitoring.
- DIN-Rail Optimized: High-density installations with SpringLoc tool-free terminals.
- Legacy Compatibility: Shares 4-hole panel mount footprint with older sensors.
- Cost-Efficient Compliance: CE Mark achieved without shielded conduit.
Technical Specifications
| Model | 330180-51-05 |
|---|---|
| Suffix Codes | 51: 5.0 m system length + DIN mount 05: CSA/ATEX/IECEx certifications |
| Input Compatibility | 3300-series 5 mm & 8 mm probes with extension cables |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) | -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
| Material | A308 aluminum housing | Gold-plated brass/beryllium copper connectors |
| Temperature Range | -52°C to +100°C (operating) | -52°C to +105°C (storage) |
| Weight | 246 g (8.67 oz) |
Contact Information
For hazardous area configuration or DIN-rail support:
Email: sales@ubestplc.com
