Description
Description

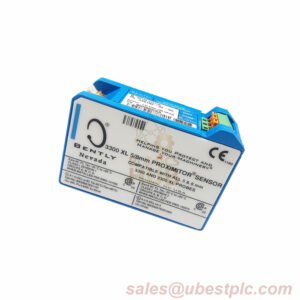

The 330180-52-05 is a hazardous area-certified proximity sensor system designed for long-range industrial monitoring. With a 5.0-meter system length and CSA/ATEX/IECEx approvals, it combines extended reach with explosive atmosphere compliance. Engineered for DIN-rail or panel mounting, it delivers CE-compliant RFI immunity without shielded conduit.
Technical Specifications
| Model | 330180-52-05 |
|---|---|
| Suffix Codes | 52: 5.0 m system length | No mounting hardware 05: CSA/ATEX/IECEx certifications |
| Input Compatibility | 3300-series 5 mm & 8 mm probes with extension cables |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) | -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
| Material | A308 aluminum housing | Gold-plated brass/beryllium copper connectors |
| Temperature Range | -52°C to +100°C (operating) | -52°C to +105°C (storage) |
| Weight | 246 g (8.67 oz) |
Certifications & Compliance
- ATEX II 1/2G Ex ia IIC T4
- IECEx Ex ia IIC T4
- CSA Class I, Div 1 Groups A-D
- CE Mark (EMC Directive 2014/30/EU)
Contact Information
For hazardous area configuration or technical support:
Email: sales@ubestplc.com
