Description

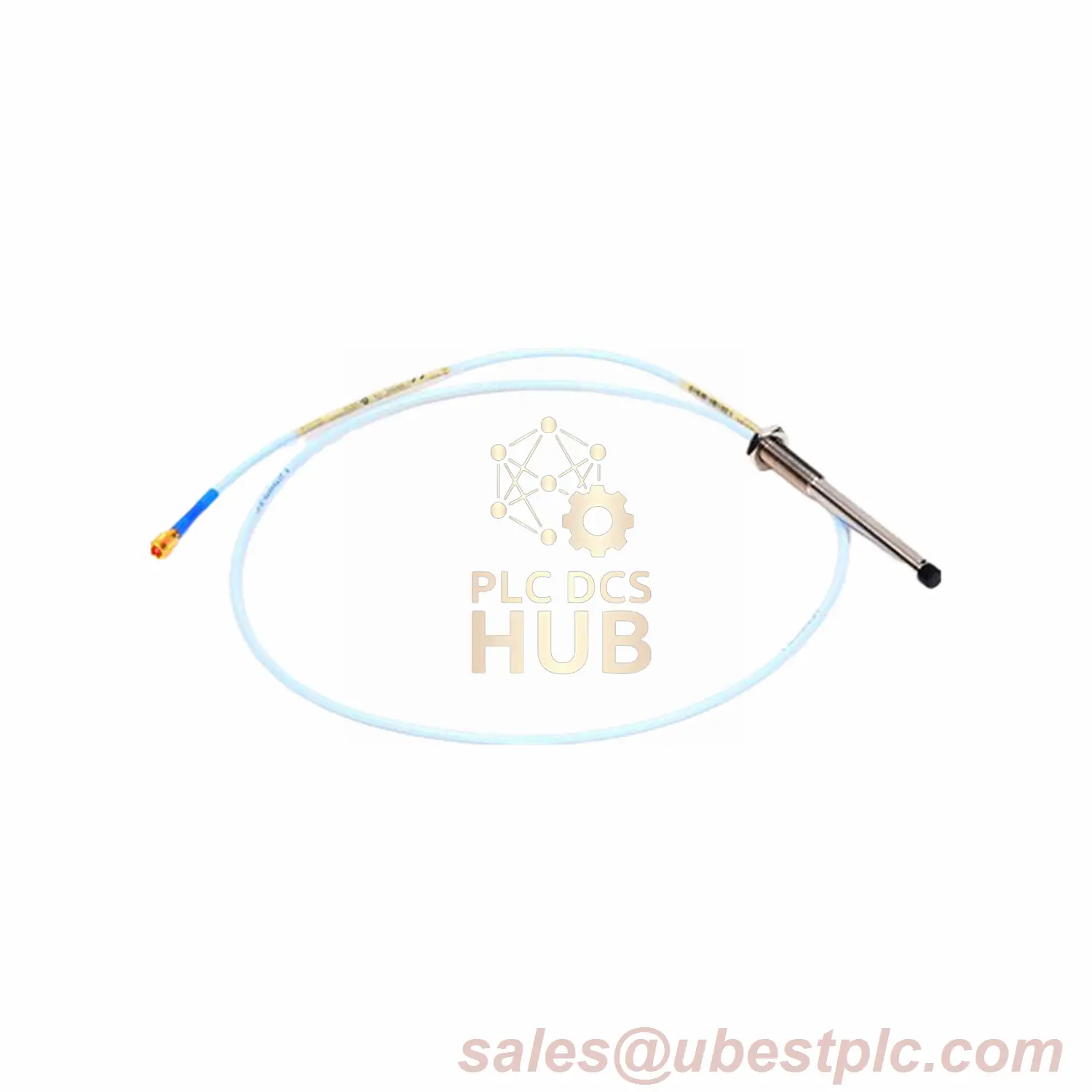

FULL MODEL DECODER FOR 330191-00-33-20-05
| Suffix Code | Technical Meaning |
|---|---|
| 330191 | 3300 XL 8mm Probe, 3/8-24 UNF thread |
| 00 | 0.0in Unthreaded Length |
| 33 | 3.3in (83.8mm) Case Length |
| 20 | 2.0m (6.6ft) Cable |
| 05 | CSA/ATEX/IECEx Certified |
CRITICAL PERFORMANCE DATA FOR 330191-00-33-20-05
- ⚡ Resistance: 7.88Ω ±0.50 @2m
- ????️ Temp Range: -55°C to +260°C
- ???? Capacitance: 69.9pF/m
- ????️ Weight: 323g/m (11.4oz/ft)
- ???? Thread: 3/8-24 UNF (14.3mm)
- ???? Cable Strength: 330N (75lbs)
PAPER MILL APPLICATION
Monitors drying cylinder bearings in paper production lines. 3.3in compact design fits between rollers, 2m cable routes through humid environments. Resists steam (100% humidity) and chemical vapors.
CERTIFICATION DETAILS
ATEX II 3G Ex nA nC IIC T4 Gc CSA Class I, Division 2, Groups A-D IECEx Ex ec IIC T4 Gc
OPERATION WARNINGS
- ⚠️ Do NOT use below -34°C (-30°F)
- ⚠️ Max wiring distance: 305m (1000ft)
- ⚠️ Pressure seal NOT factory-tested
COMPLETE PACKAGE
- 3.3in Stainless Steel Probe
- 2.0m FEP Triaxial Cable
- 12-Month Warranty
