Description

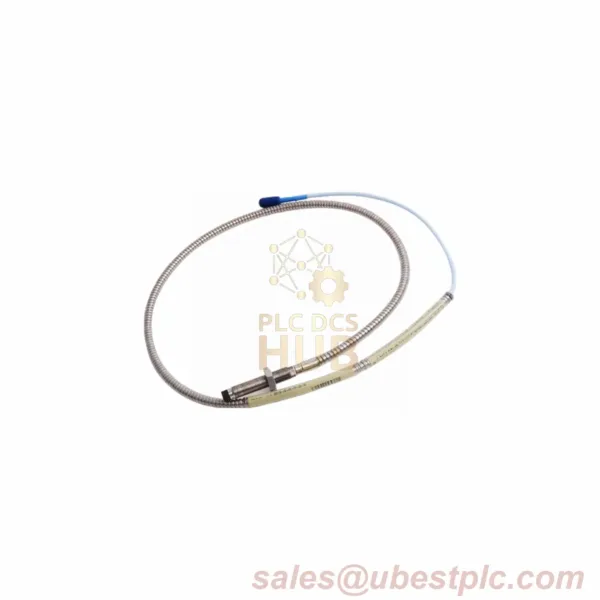

Bently Nevada 3300 XL 8 mm ETR Proximity Probe
330191-40-75-50-CN: New & Original proximity probe with factory warranty, designed for industrial vibration and position monitoring in demanding environments.
Key Features
- TipLoc molding for superior tip-body bonding
- CableLoc design (330N pull strength)
- Optional FluidLoc anti-leak cable
- 8mm rugged PPS probe tip with stainless steel case
Technical Data
- Brand: Bently Nevada
- Model: 330191-40-75-50-CN
- Range: ±2mm standard
- Output: 50Ω DC voltage (-200mV/mm)
- Accuracy: ±5% of full scale
- Temperature: -55°C to +232°C (T1 classification)
- Power: -17.5Vdc to -26Vdc @12mA max
Suffix Information
- 40: 4.0″ Unthreaded Length
- 75: 7.5″ Overall Case Length
- 50: 5.0m Total Length
- CN: Country-Specific Approval
Installation Guidelines
- Max torque: 0.565 N•m (5 in•lbf)
- Thread: 3/8-24 UNF (0.563″ engagement)
- Sealing: Viton® O-ring (not pressure tested)
Compatibility
- Requires 5m Proximitor sensor
- BN extension cables mandatory
- Not compatible with 1m systems
Certifications
- ATEX/IECEx EPL Ga/Gc/Dc
- Country-specific approvals (CN suffix)
Application Examples
- Turbine vibration monitoring in power plants
- Rotating equipment protection in oil & gas
- Pump shaft position tracking with FluidLoc option
