Description

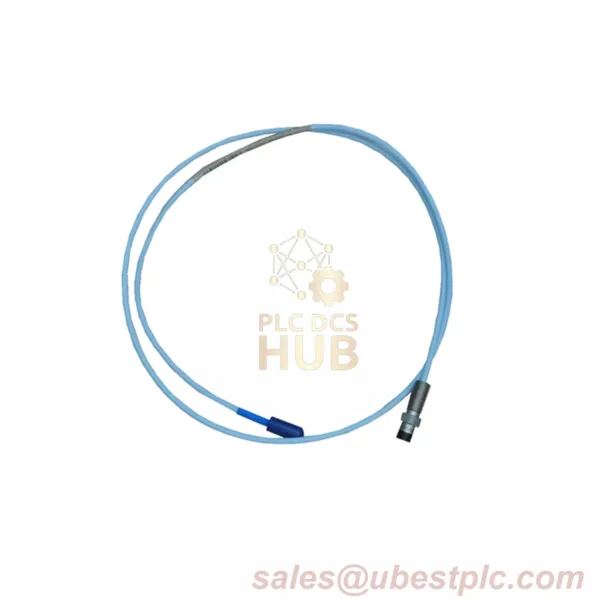

330196-05-30-50-05 Industrial Reverse Mount Probe
Core Performance Highlights
- Instant Response: <1ms detection speed
- Precision Accuracy: ±1% full scale
- Extreme Range: -34°C to +177°C operation
- Robust Design: Stainless steel housing
Complete Technical Profile
- Detection Method: Eddy Current Technology
- Measuring Window: 0-2mm (0-80 mils)
- Signal Output: 4-20mA linear current
- Power Requirements: 24VDC ±10%
- Connection: Miniature coaxial (5m cable)
- Environmental Protection: IP66 rated
- Mounting: M10 x 1.5 threaded
- Frequency Capacity: 0-10kHz vibration
Installation Guide
- Mount sensor using M10 threads with 12-15Nm torque
- Position 0.5-1.5mm from target surface
- Connect coaxial cable to 24V DC source
- Verify 4mA output at maximum gap
Shipping & Support
Worldwide delivery via FedEx/UPS/DHL
12-month performance warranty
Factory-sealed packaging
Expert FAQ
Q: Minimum detectable distance?
A: Reliable detection starts at 0.1mm
Q: Custom cable lengths available?
A: Yes, 1-20m options on request
Q: Suitable for food industry?
A: Yes with proper housing sanitization
Q: Output signal type?
A: Industry-standard 4-20mA current loop
Q: Vibration resistance?
A: Withstands 10g vibration (50-2000Hz)
