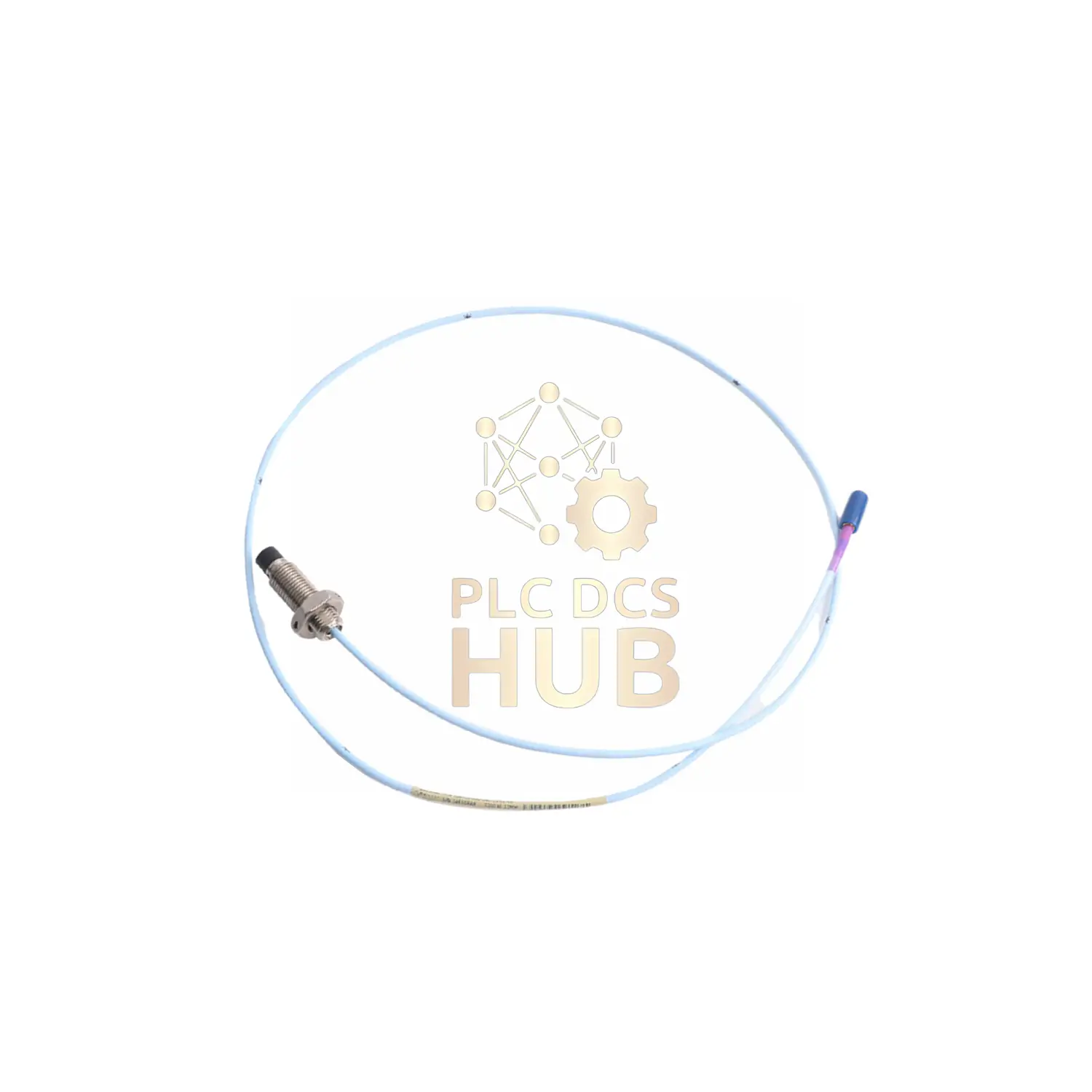

Bently Nevada 3300 High Temperature Probe: Precision Sensing for Extreme Environments
Product Description
Industrial vibration sensor for high-heat applications up to 350°C (662°F). Features a ceramic probe tip and 316L stainless steel case for durability. Measures shaft vibration with ±78μm linearity. Ideal for turbines, compressors, and heavy machinery.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 Series
- Full P/N: 330302-000-011-20-90-01-00
Suffix Breakdown:
- 000: 0mm unthreaded length
- 011: 11mm case length
- 20: 2.0m hardline (6.6 ft)
- 90: 9.0m total length w/ extension cable (30 ft)
- 01: Stainless steel armor
- 00: No agency approval required
Key Technical Data
- Temperature Range: -34°C to +350°C (-30°F to 662°F)
- Sensitivity (ISF): 3.94 V/mm ±9.65% (100 mV/mil)
- Linearity (DSL): < ±78μm (±3.1 mils)
- Frequency Response: 0-6 kHz (±3dB)
- Measurement Range: 4.0mm linear range (160 mil)
- Probe Resistance: 5.82 Ω at 2m length
- Min Target Size: 30.5mm diameter
- Min Shaft Diameter: 152mm (6.0 in)
Packaging & Shipping
- Probe with 9m integrated cable
- Test certification documentation
- Global delivery via FedEx, UPS, DHL
- 12-month warranty
FAQ
- Q: Cable length options?
A: Standard 9m total (2m hardline + 7m extension) - Q: Chemical resistance?
A: 316L SST casing resists most industrial chemicals - Q: Output signal type?
A: Analog voltage (3.94V/mm)
Get Full Documentation
Download complete installation and specification guides:
