Description:

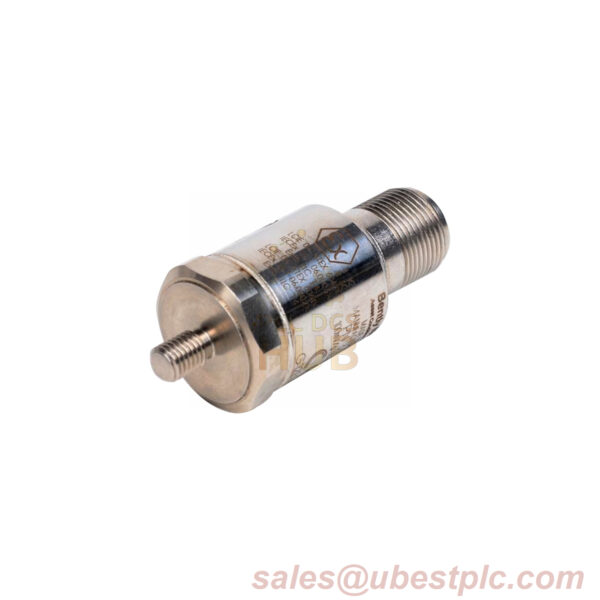

330425-01-00 features a ¼-28 UNF integral stud and 316L stainless steel construction. With 10.2 mV/m/s² sensitivity and -55°C to +121°C (-67°F to +250°F) operation, it’s designed for industrial vibration monitoring. Includes IP68 protection (sensor body only) and supports 305m cable runs.
Core Specifications
| Manufacturer | Bently Nevada |
| Part Number | 330425-01-00 |
| Frequency Range | 10 Hz – 15 kHz (±3dB) |
| Shock Limit | 49,050 m/s² (5000g peak) |
Configuration Breakdown
| Suffix | Component | Specification |
|---|---|---|
| 01 | Mounting | ¼-28 UNF integral stud |
| 00 | Certifications | None |
| – | Noise Floor | 0.039 m/s² RMS |
| – | Weight | 99g (3.5 oz) |
⚠️ Installation Requirements:
- Pre-April 2004 units: Requires API adapter to reduce base strain sensitivity to 4.9 mm/s²/mstrain
- Mounting surface: 32 µin RMS finish required
- Torque limit: 4.1 N·m (3.0 ft·lb) maximum
