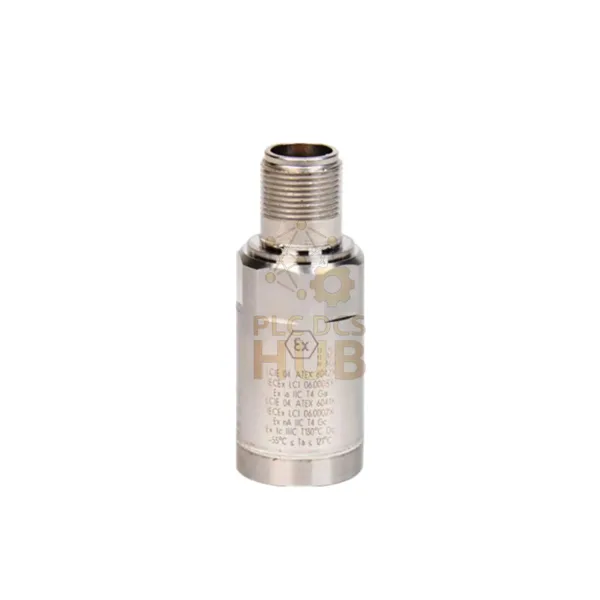

330500-06-04 Bently Nevada 330500 Velomitor Piezo-velocity Sensor

Description

Bently Nevada Velomitor Piezo-Velocity Sensor: Dual-Certified Durability

Product Code Breakdown

• 330500-06-04:
  • -06: 5/8-18 UNF mounting thread
  • -04: CSA & ATEX certified

Key Technical Data for 330500-06-04

• ► Speed Range: 0–1270 mm/s peak
• ► Noise: 0.004 mm/s (ultra-low)
• ► Magnetic Sensitivity: <51 min/s/gauss
• ► Base Strain: 0.005 in/s/mstrain
• ► Weight: 142g (lightweight)

Real-World Applications

• — Mining conveyor vibration checks
• — Food processing mixer monitoring
• — Construction equipment diagnostics

Installation Simplified

1. Use 5/8-18 UNF thread.
2. Torque: 24–40 in-lb max.
3. Connect via MIL-C-5015.

Certifications

• ✅ ATEX/CSA Certified (Hazardous Zones)
• ✅ DNV Maritime Compliance
• ✅ RoHS & FCC Compliant

Package & Warranty

• ► Sensor with 5/8-18 UNF thread
• ► 12-month warranty
• ► COO available on request

Fast global shipping via FedEx/DHL/UPS.

FAQ

Q: Works in dusty areas?
A: Yes – hermetically sealed against dust/water.

Q: Cable length limit?
A: Up to 305m (1000ft) without signal loss.
