Description

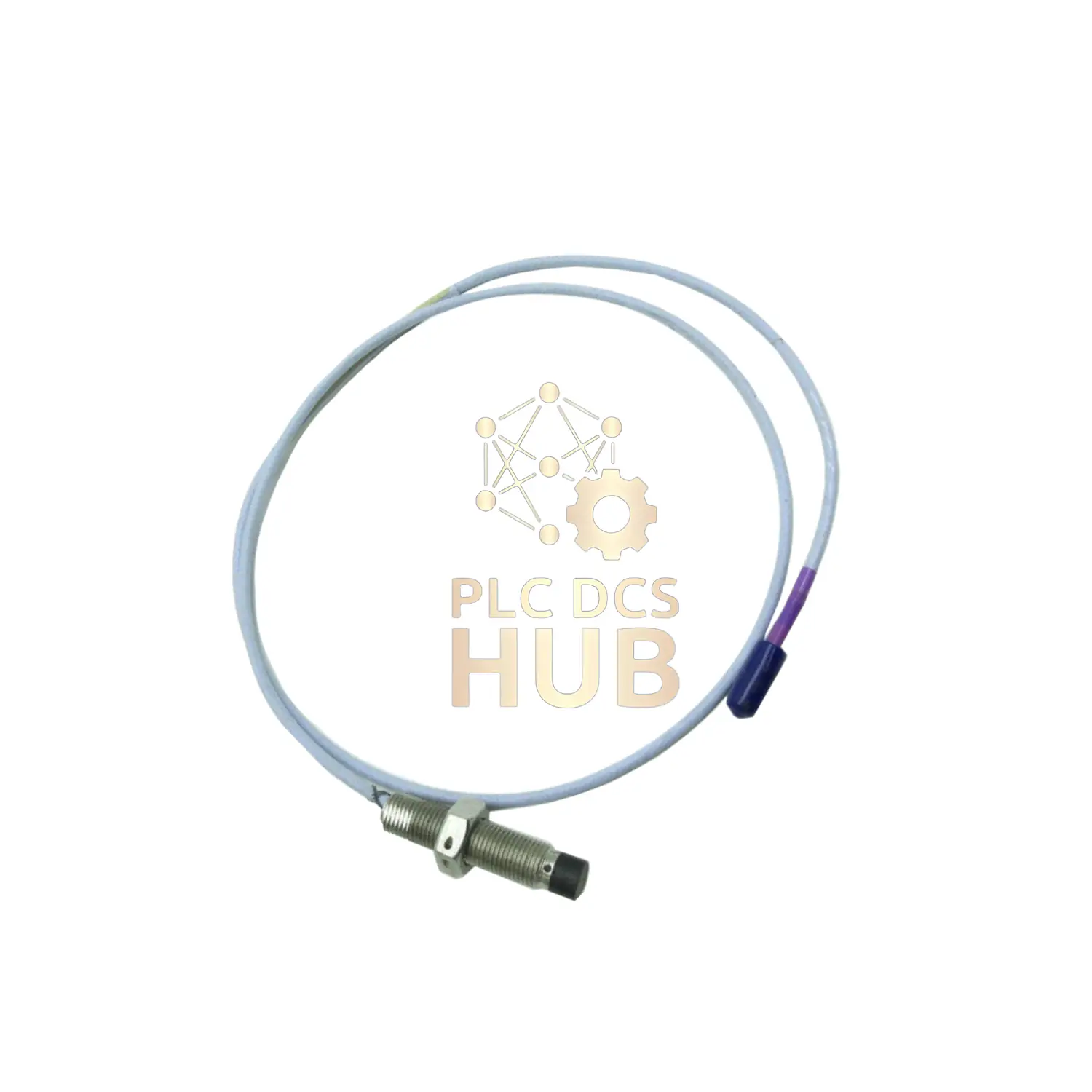

Bently Nevada 3300 XL 11mm Compact Proximity Probe
The Bently Nevada 330701-00-10-10-02-00 offers precise vibration monitoring in a compact package. With 1m cable and stainless steel construction, it’s ideal for space-constrained installations.
Top Features
- Compact 1.0″ case length – fits tight spaces
- 1m (3.3ft) standard cable – flexible routing
- ClickLoc connector – quick, secure connection
- Wide temperature range (-51°C to +177°C)
- Made in USA – reliable quality
Part Number Breakdown
- 330701: Base model
- 00: 0″ unthreaded length
- 10: 1.0″ case length
- 10: 1.0m cable
- 02: Standard cable with ClickLoc
- 00: No approvals required
Technical Details
- Resistance: 5.9Ω ±0.5Ω
- Thread: 1/2-20 UNF
- Max torque: 400 in-lb (45.2 N•m)
- Cable type: 75Ω triaxial FEP
- Bend radius: 1.0″ (25.4mm) minimum
- Weight: 0.17kg (0.37lb)
Important Notes
- Seal may degrade below -34°C (-30°F)
- Not pressure tested by default
- 12-month warranty
- Ships via FedEx/UPS/DHL
Expert Questions
- Q: Is this probe waterproof?
A: No, but it resists oils and chemicals. - Q: Can I use it with 5m systems?
A: No, only compatible with matching cable length. - Q: What’s the advantage of short case?
A: Fits where space is limited. - Q: Is calibration included?
A: Factory calibrated, no field calibration needed. - Q: How durable is the cable?
A: FEP insulation resists abrasion and chemicals.
Need installation help? Download manual for 330701-00-10-10-02-00
