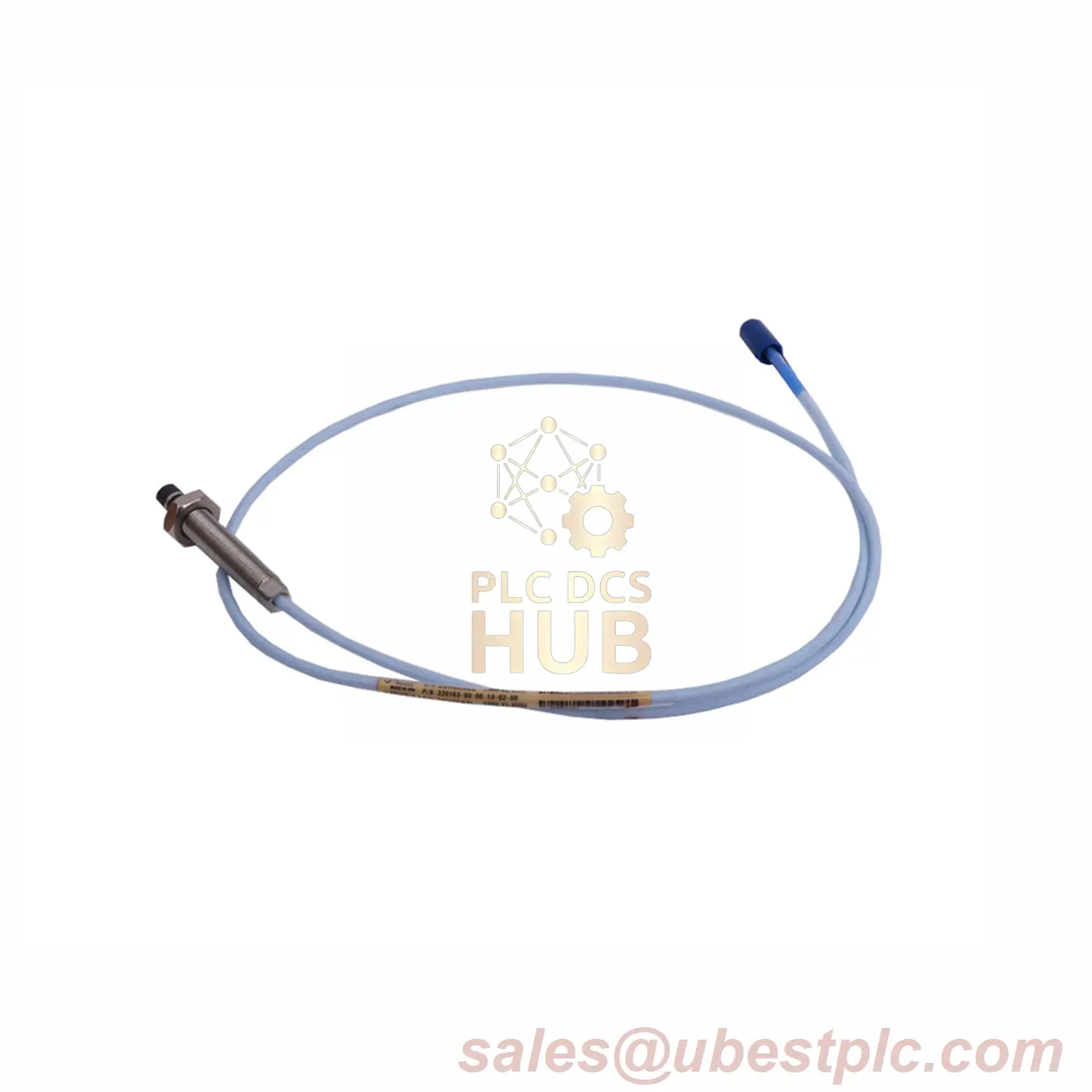

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Machinery Monitoring
Description
Industrial-grade 11mm proximity probe for vibration monitoring. Made in USA with global certifications. Features PPS tip and 304 stainless steel case. Works with 5m Proximitor® sensors only.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm
- Full P/N: 330701-00-24-50-12-05
- Probe Resistance: 7.2Ω ±0.8Ω
- Cable: 75Ω triaxial FEP
- Thread: 1/2-20 UNF
- Case Torque: 15.2 N•m (133 in•lb)
Installation Guide
- Max thread engagement: 0.75″ (19mm)
- Connector torque: 0.565 N•m max
- Min bend radius: 25.4mm (1.0″)
- ⚠️ Avoid temperatures below -34°C to prevent seal damage
Compatibility
Designed exclusively for use with 5-meter Proximitor® sensors. Not compatible with 1m/9m systems.
Certifications
Multiple international approvals (Option 05).
What’s Included
- Probe assembly with PPS tip
- Miniature coaxial ClickLoc connector
- FluidLoc® cable (5 meters)
Shipping & Support
- ???? Weight: 0.17 kg
- ???? Carriers: FedEx | UPS | DHL
- ???? 12-month warranty
FAQ
- Q: Pressure rating?
A: Contact Bently Nevada for custom pressure testing - Q: Cable replacement possible?
A: No – cable is permanently attached - Q: Armored version available?
A: This model has no armor (Option 00)
Download the full installation manual: Click Here
