330701-00-24-90-02-05 Bently Nevada 3300 XL 11 mm Probe

Description

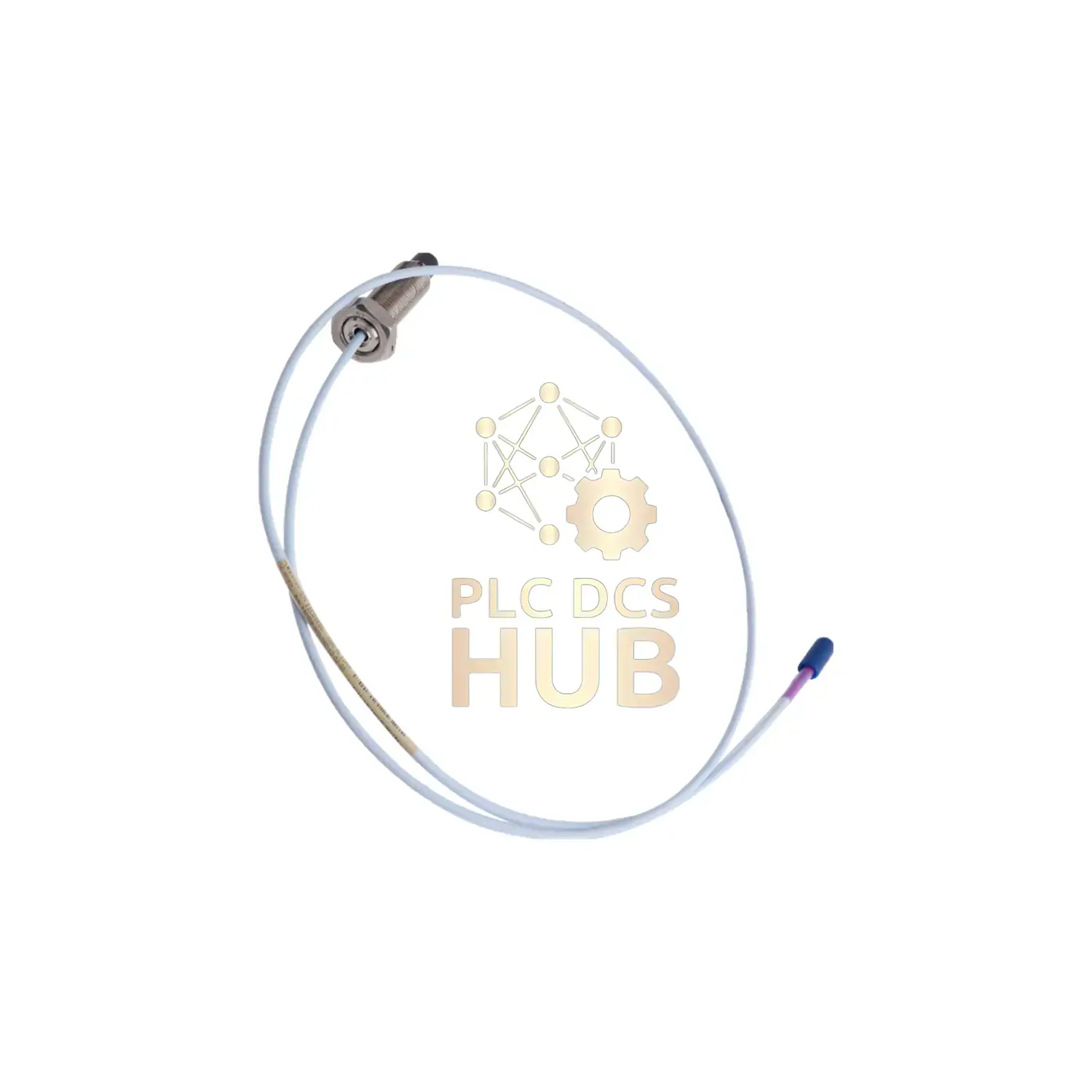

Bently Nevada 3300 XL 11mm Proximity Probe: Precision Vibration Monitoring

Description

Professional-grade 3300 XL 11mm Proximity Probe (P/N: 330701-00-24-90-02-05) for critical machinery health monitoring. Made in the USA with a corrosion-resistant AISI 304 stainless steel case and PPS tip. Ideal for turbines, compressors, and pumps. Includes optional Certificate of Origin (COO).

Technical Data

• Brand/Model: Bently Nevada 3300 XL 11mm
• Full Suffix: 00-24-90-02-05 (Unthreaded: 0.0 in | Case: 2.4 in | Cable: 9.0m)
• Thread: 1/2-20 UNF (Max engagement: 0.75 in)
• Probe Tip: Polyphenylene Sulfide (PPS)
• Cable: 9m triaxial, FEP-insulated, 75 Ω
• Resistance: 8.5 Ω ±1.1 (center to outer conductor)
• Temperature Range: -51°C to +177°C
• Pressure Seal: Viton O-ring (contact for custom pressure tests)

Installation Guide

• Torque: Max 45.2 N•m (400 in•lb) | Recommended: 15.2 N•m (133 in•lb)
• Connector: Miniature coaxial ClickLoc (finger-tight; max 0.565 N•m)
• Bend Radius: ≥25.4 mm (1.0 in)
• ⚠️ Avoid temps below -34°C to prevent seal damage

Compatibility

Works with Bently Nevada 3300/3500 monitoring systems. Fits standard 1/2-20 UNF mounts. Compatible with GE, AB, and Siemens PLCs.

Certifications

Multiple global agency approvals (Option 05). Complies with industrial safety standards.

Package Contents

• 3300 XL Probe (9m cable)
• Miniature ClickLoc connector
• Documentation pack
• 12-month warranty

Shipping

Weight: 0.17 kg. Fast global delivery via FedEx, UPS, or DHL.

FAQ

• Q: Cable length options?
  A: 1m, 5m, or 9m (9m included here).
• Q: Pressure testing available?
  A: Contact for custom seal validation.
• Q: Thread type?
  A: 1/2-20 UNF (M16x1.5 optional).

Download Full Specifications

Get the complete installation manual and technical docs:

• • Probe Datasheet (PDF)
