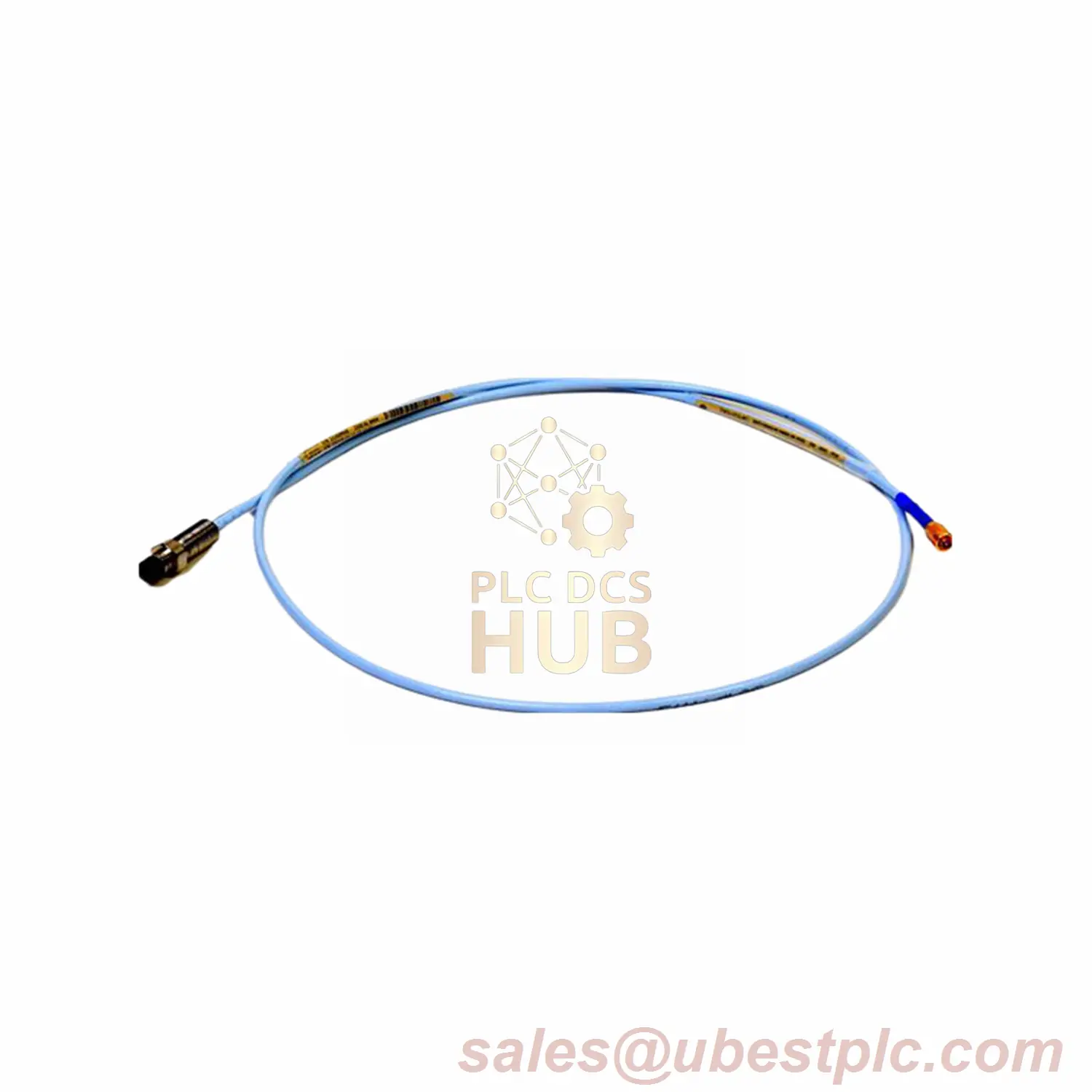

330703-000-040-10-02-00 Bently Nevada 3300 XL Proximity Probe Without Armor

Description

Bently Nevada 330703-000-040-10-02-00 – 11mm Metric Proximity Probe

???? Suffix Breakdown

330703-000-040-10-02-00
├─ 330703: 3300 XL 11mm Probe Base Model (M14x1.5 thread)
├─ 000: 0mm unthreaded length
├─ 040: 40.0mm overall case length
├─ 10: 1.0m (3.3ft) total cable length
├─ 02: ClickLoc connector (standard cable)
└─ 00: No agency approvals required

⚡ Key Specifications

• ???? Dimensions: 11mm diameter | M14x1.5 thread (no armor)
• ????️ Temp Range: -52°C to +177°C (Avoid < -34°C for seal safety)
• ⚡ Electrical:
  – DC Resistance: 5.9Ω ±0.50 (center to outer conductor)
  – Magnetic Field Sensitivity: 0.001-0.027 mil pp/gauss (60Hz)
• ???? Mechanical:
  – Max Torque: 63.3 N·m (560 in·lb)
  – Thread Engagement: 21mm (M14x1.5)

???? Technical Highlights

• ????️ Material: PPS tip (chemical-resistant) + AISI 304 SST case
• ???? Cable: 75Ω triaxial FEP-insulated (1m length)
• ???? Classification: T2 (up to +177°C) for EPL Ga/Gc

???? Ideal Applications

• ⚙️ Heavy Machinery: Shaft vibration monitoring in large industrial motors
• ???? High-Temp Environments: Bearing analysis in steel mill rollers (+177°C max)
• ???? Chemical Processing: PPS tip resists acids, oils, and solvents

???? Package & Support

• 1x 330703-000-040-10-02-00 probe
• Factory warranty card (12 months)

???? Global Shipping

Delivered via FedEx/UPS/DHL – Trackable within 24 hours.
