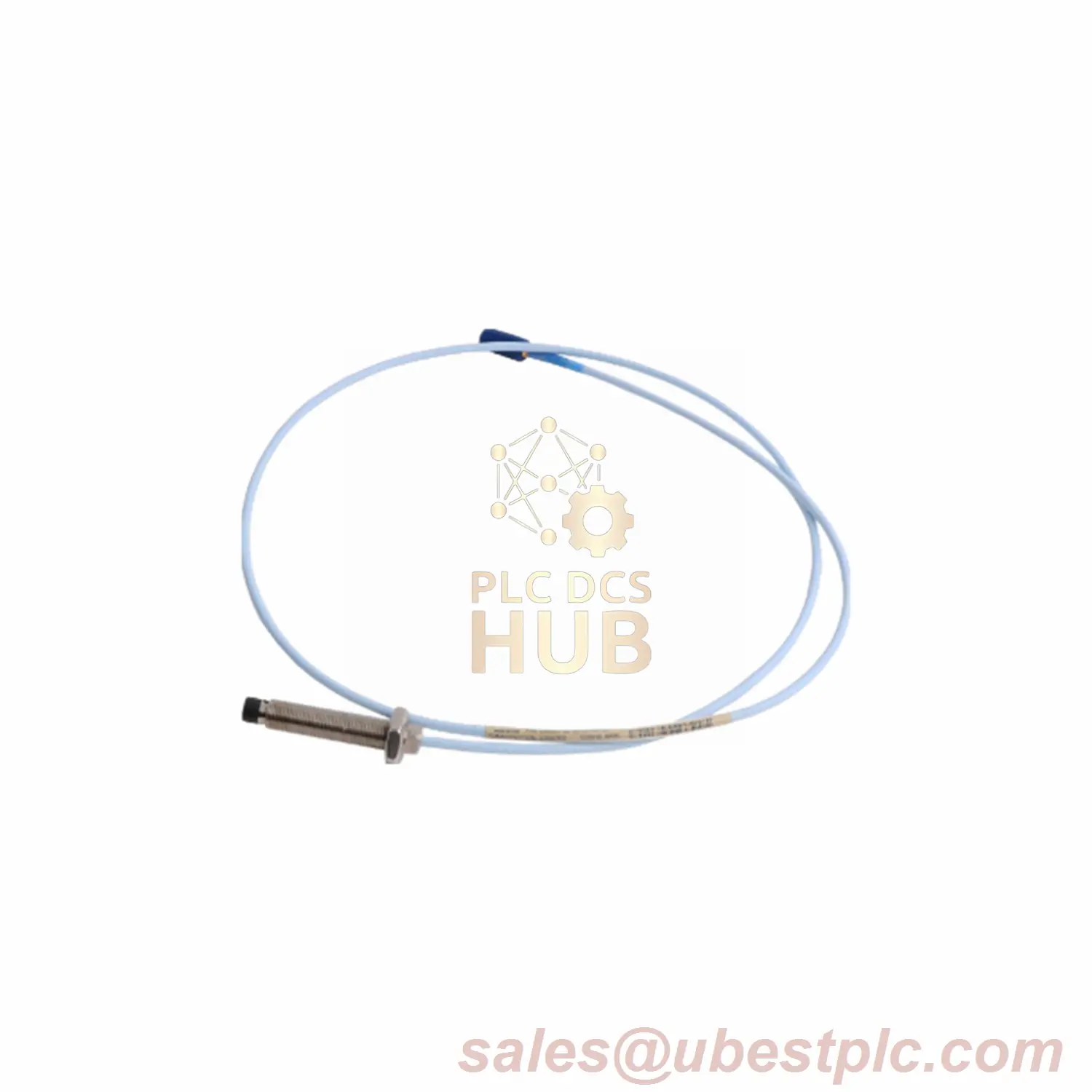

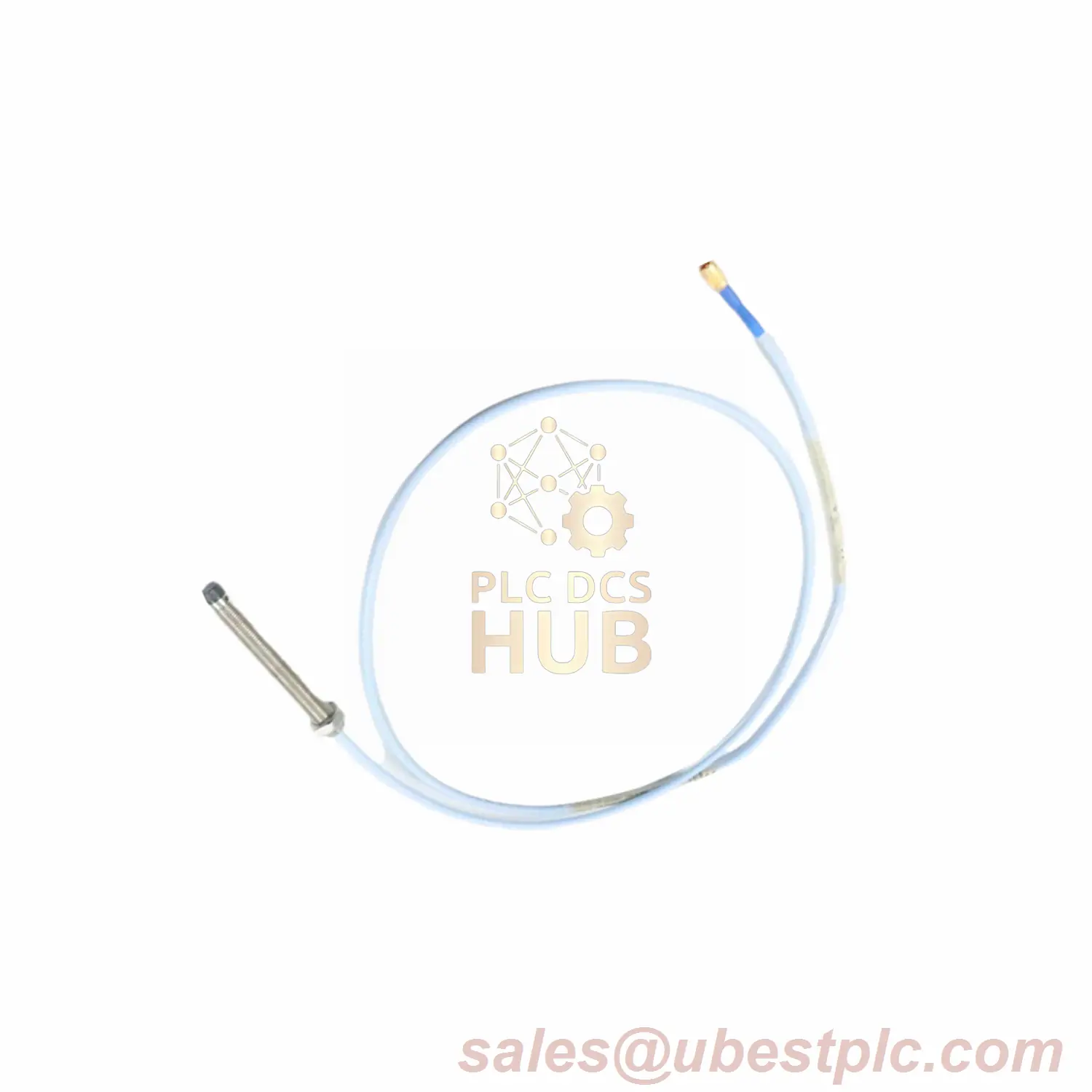

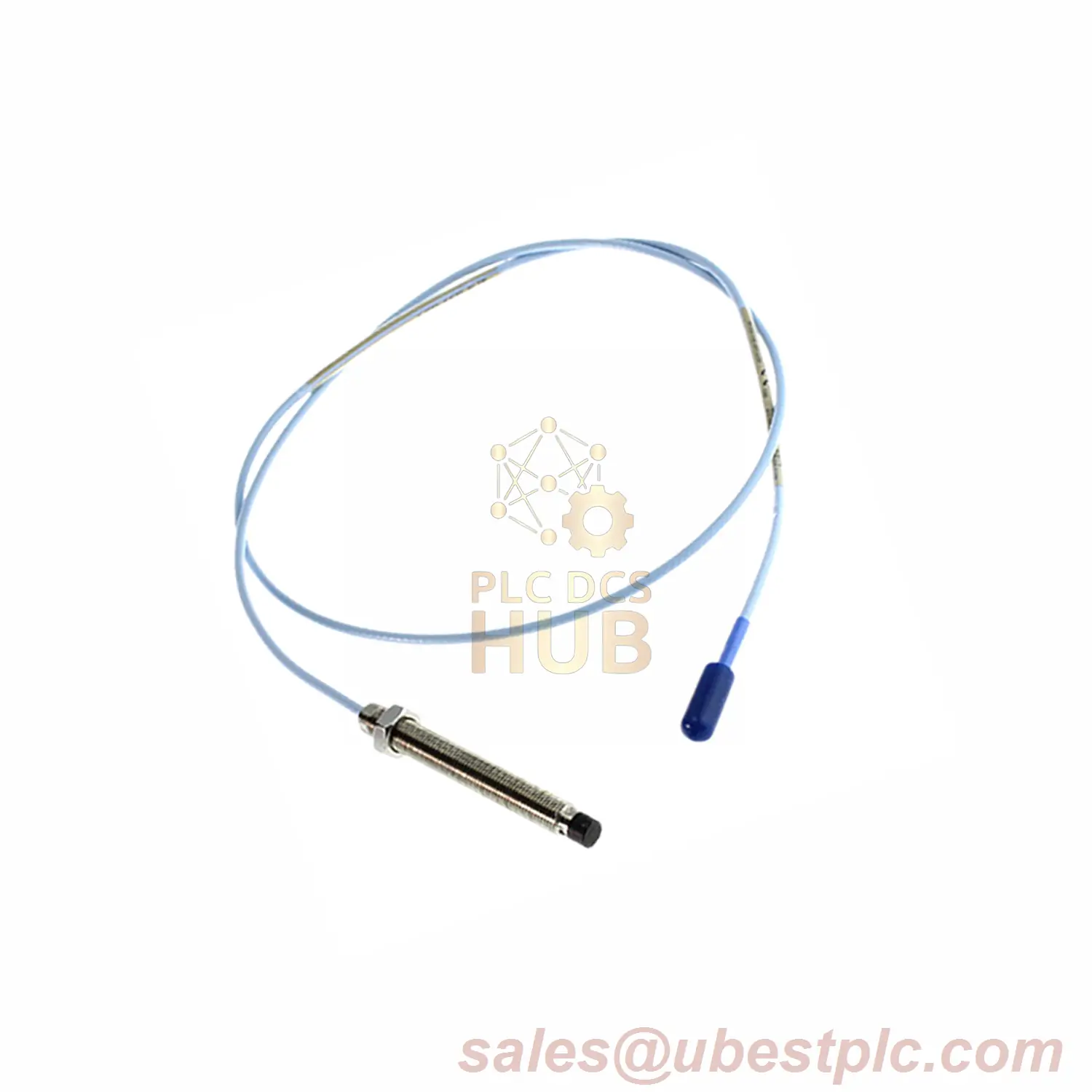

330704-000-070-10-02-CN 3300 XL 11 mm Proximity Probe

Description

Bently Nevada 330704-000-070-10-02-CN | 3300 XL 11mm Industrial Proximity Probe (Metric)

Quick Overview

• Condition: Brand new, factory-sealed
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL available

What the Part Number Means

• Base model: 330704 (11mm probe, M14×1.5 thread, armored)
  • 000: No-thread length (0mm)
  • 070: Case length (70mm – 10mm longer than standard)
  • 10: Total length (1m / 3.3ft)
  • 02: Small coaxial ClickLoc connector (easy plug-in)
  • CN: China-specific approval

Key Specs at a Glance

• Measures: 0.5-4.6mm (linear range)
• Accuracy: ±0.5% of full range
• Output: ±20Vdc (works with most machines)
• Temp range: -52°C to 177°C (store & use safely)
• Magnet resistance: Max 0.027 mil pp/gauss (60Hz – low interference)

Easy Installation Tips

• Max torque: 63N·m (don’t over-tighten)
• Best torque: 21N·m (just right)
• Thread: M14×1.5, at least 21mm tight (stays secure)
• Note: Keep above -34°C (avoid seal damage); Handle tip gently.

Where It Works Best

• Steel mills: Check roll bearings (heat & magnet safe)
• Chemical plants: Measure pump shafts (304 steel resists rust)
• Power plants: Track turbine rotors (fast & wide range)

Why 330704-000-070-10-02-CN Stands Out

• Longer case: 70mm (better for deep installations)
• CN approval: Made for China (local compliance)
• Tough materials: PPS tip + 304 steel case (177°C no melt)
• Simple wiring: ClickLoc connector (plug-and-go)
