330705-02-18-10-02-00 3300 XL 11 mm Reverse Mount Probe

Description

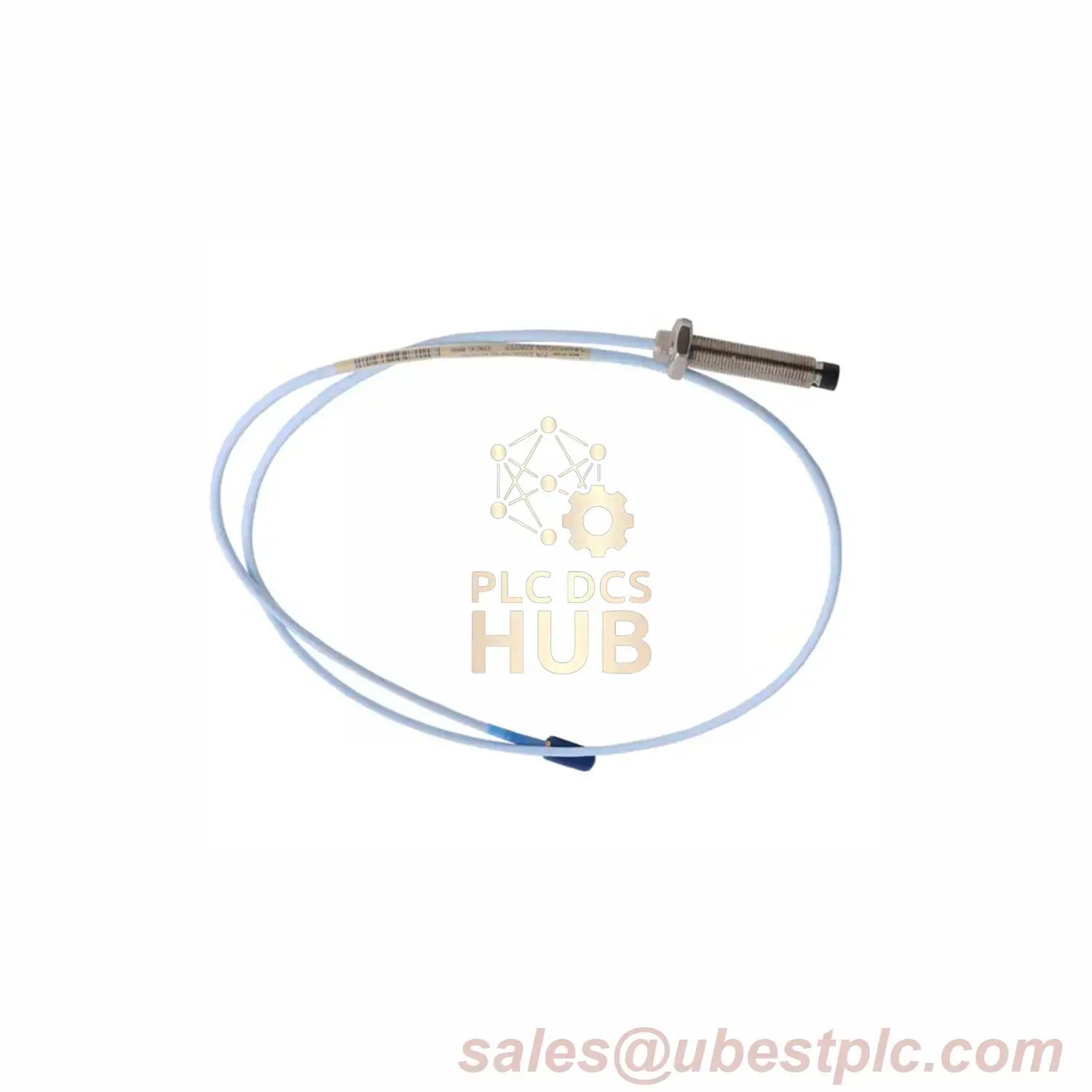

Bently Nevada 3300 XL 11mm Reverse Mount Probe

Key Technical Specs for 330705-02-18-10-02-00

• Measurement Range: 0-10mm (vibration detection)
• Accuracy: ±1.5% full scale
• Output Signal: 20-24V DC (75Ω impedance)
• Temp Range: -52°C to +177°C operation
• Response Frequency: 0.5Hz-12kHz
• Insulation: 500V AC withstand voltage

Installation Guide

• Mounting: 3/8-24 UNF reverse threads
• Torque: Finger tight (max 0.565N•m)
• Cable Bend: Keep >25.4mm radius
• Pressure Seal: Viton® O-ring (non-pressure tested)

Works With

• 3300 XL monitoring systems
• API 670 compliant machinery
• Steam turbines & centrifugal pumps
• High-vibration industrial equipment

Package Includes

• 1x Probe (1.0m cable)
• 12-month warranty card

Product Code Tree

330705-02-18-10-02-00

• 02: 11mm sensing range
• 18: 304 SST housing
• 10: 1.0m cable
• 02: ClickLoc connector
• 00: No certifications

Industrial Solutions

• Oil/Gas: Pump cavitation detection
• Power Gen: Turbine shaft monitoring
• Mining: Crusher bearing protection
• Manufacturing: CNC spindle safety
