330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe

Description

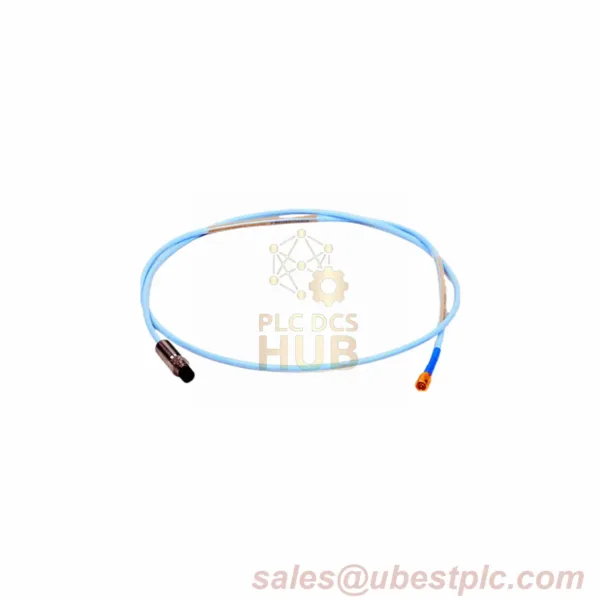

Bently Nevada 330706-005-046-10-02-00 | 3300 XL 11mm Reverse Mount Probe (USA-Made)

Quick Overview

• Type: Reverse mount probe (installs from the back)
• Thread: M10 x 1 (small, precise threads)
• Cable: 1m (3.3ft) – short, easy wiring
• Cert: No extra approvals (universal use)
• Weight: 0.07kg – light, easy to handle
• Warranty: 12 months

What the Number Means

• 330706: Base model (11mm reverse probe)
  • -005: M10 x 1 threads (small, common in precision machines)
  • -046: Reverse design (installs from the back)
  • -10: 1m cable (no extra length)
  • -02: Mini ClickLoc connector (easy plug-in)
  • -00: No approvals (works anywhere)

Key Tech Specs

• Tip: PPS (tough, resists chemicals)
• Case: 304 stainless steel (no rust)
• Cable: 75Ω triaxial + FEP (stops noise from motors)
• Temp: -52°C to 177°C (works in hot/cold places)
• Resistance: 5.9Ω±0.5 (1m cable – stable signal)

Where 330706-005-046-10-02-00 Works Best

• Small motors: Installs from the back (where front space is tight)
• Precision tools: M10 x 1 threads – fits small machine parts
• Lab equipment: 1m cable – no messy wires on benches
• Medical devices: 304 stainless – resists cleaning chemicals

Fixes These Problems

• No front space: Reverse design – install from the back
• Small threads: M10 x 1 – fits where big threads can’t
• Wiring mess: 1m cable – no extra to tuck away
• Signal noise: FEP cable – no static from nearby machines

Install Tips

• Torque: Finger-tight (don’t over-tighten)
• Bend: Keep ≥25mm (1in) – no sharp bends in cable
• Temp: Avoid < -34°C – O-ring lasts longer
