330780-90-00 Proximitor Sensor – Bently Nevada

Description

Description

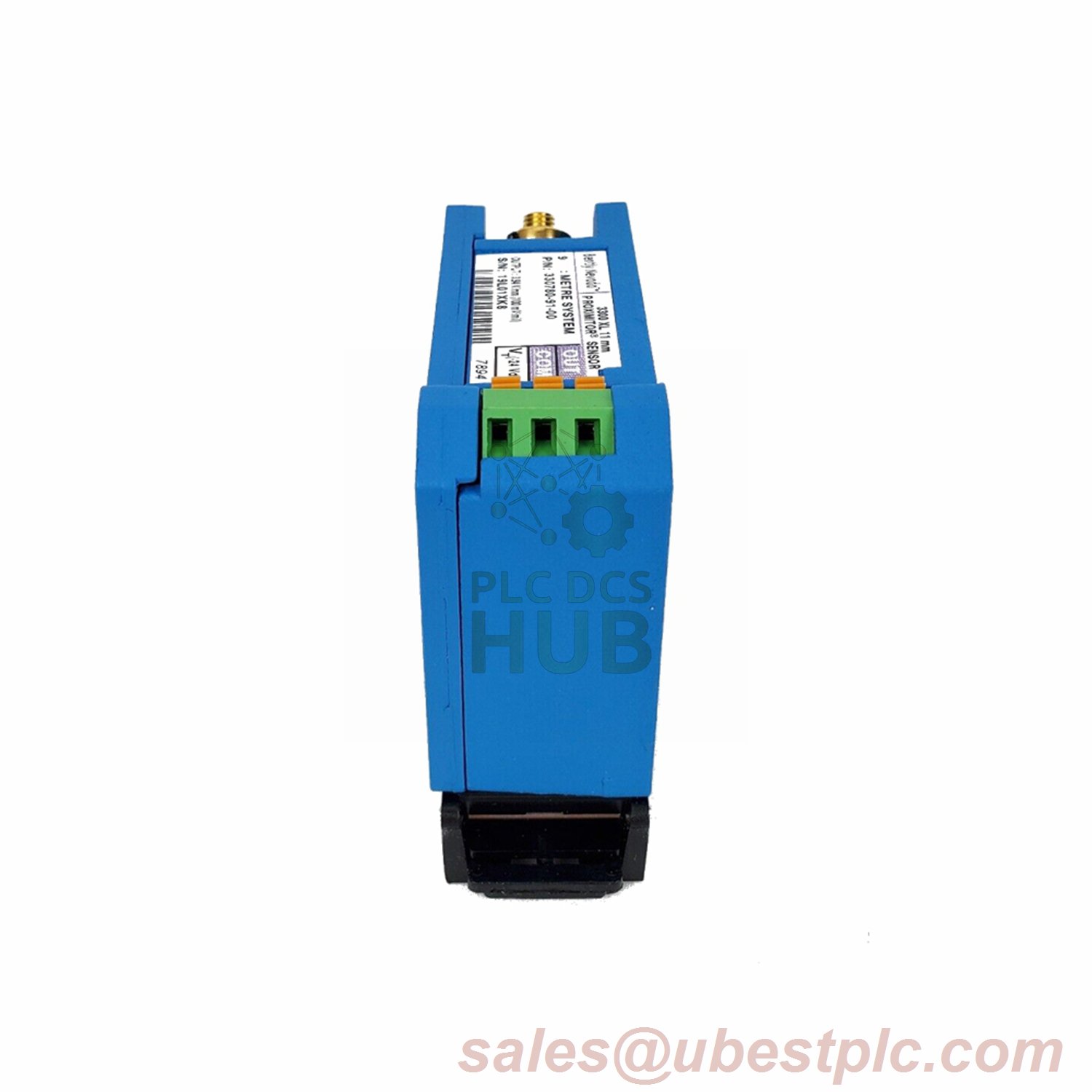

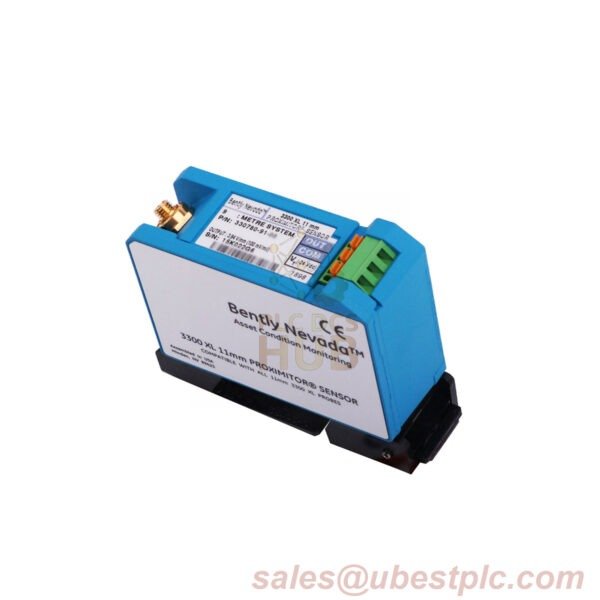

The Bently Nevada 330780-90-00 3300 XL 11 mm Proximitor Sensor is a robust industrial solution engineered for long-range monitoring in standard environments. With a 9.0-meter (29.5 ft) panel-mount design and RFI/EMI immunity, this sensor ensures reliable performance without shielded conduit. Featuring SpringLoc terminals for tool-free installation, it simplifies upgrades in existing systems while maintaining precision.

Technical Specifications

• Model: 330780-90-00
• Suffix Code:
  • 90: 9.0 m system length
  • 00: No certifications required
• Dimensions: 6.35cm (H) × 6.12cm (W) × 8.13cm (D)
• Mounting: Panel mount (4-hole legacy footprint)
• Electrical:
  • Power Range: -17.5 Vdc to -26 Vdc (12 mA max)
  • Output Resistance: 50 Ω
  • Sensitivity: <2 mV/V
• Environmental:
  • Operating Temp: -52°C to +100°C (-62°F to +212°F)
  • Storage Temp: -52°C to +105°C (-62°F to +221°F)
  • Humidity: 100% condensing (IEC 68-2-3 tested)
• Materials: A380 aluminum housing
