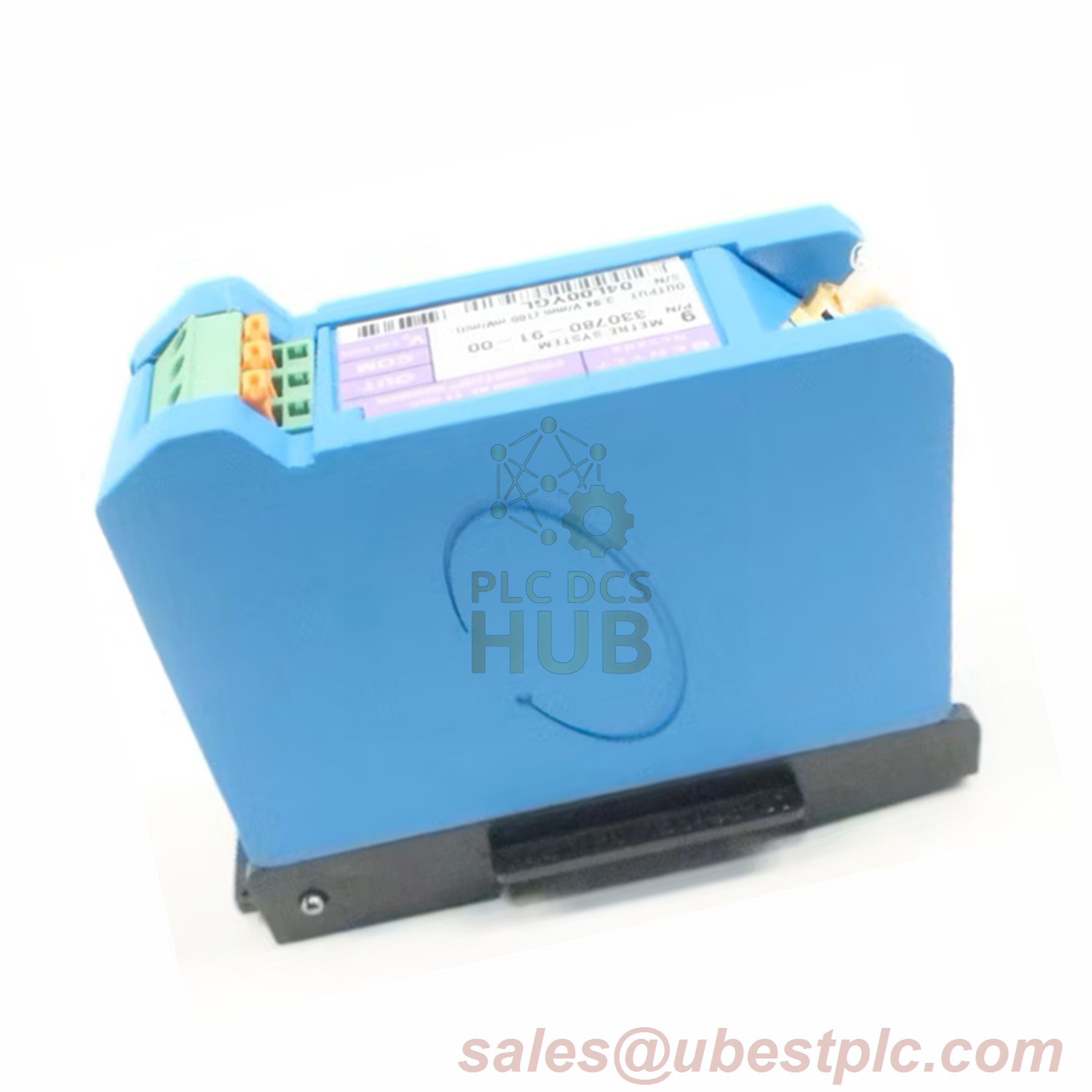

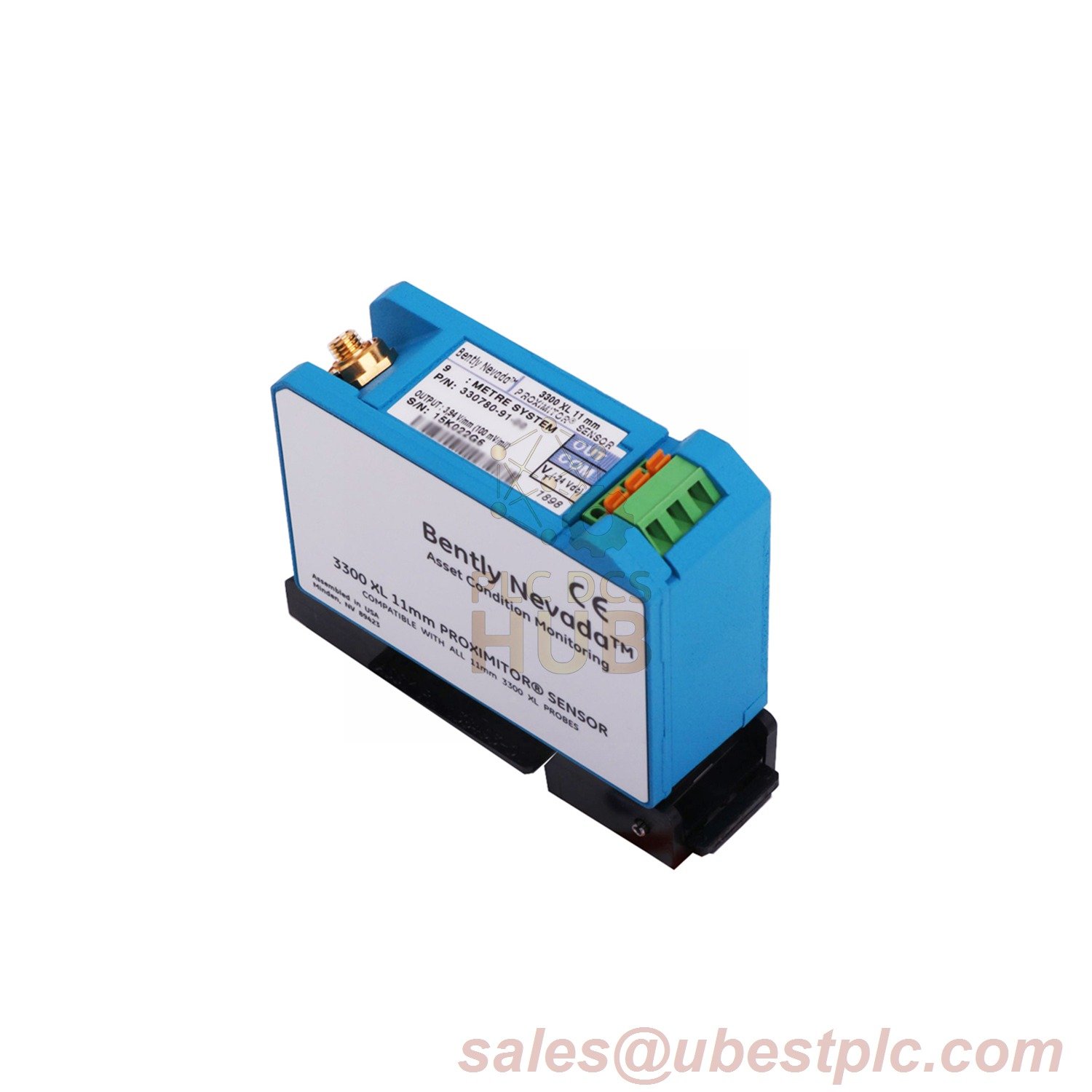

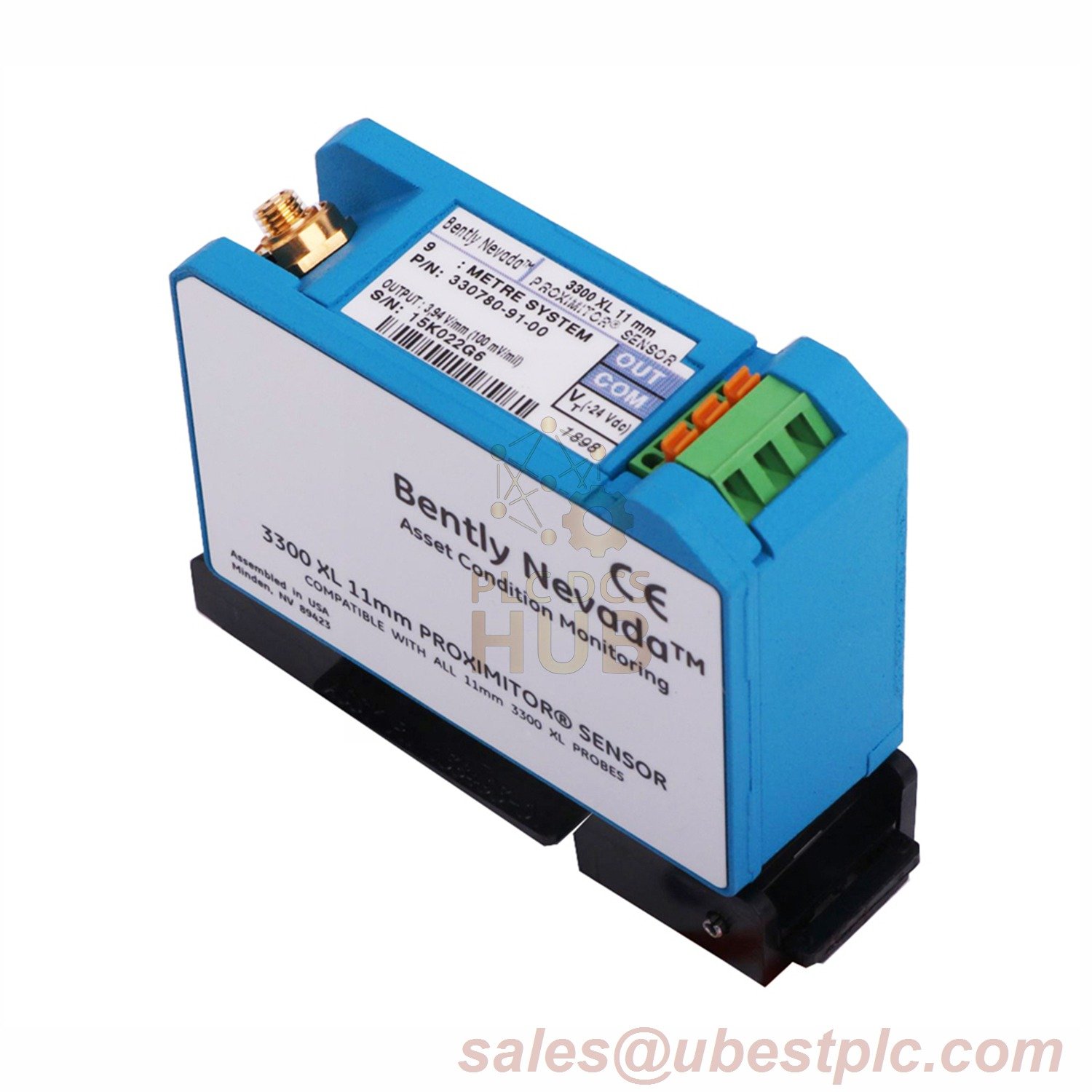

Bently Nevada 3300 XL 11 mm Proximitor Sensor
Made in the U.S.A., this 11 mm Proximitor Sensor 330780-91-05 offers a 9.0-meter DIN-rail system with CSA/ATEX/IECEx certifications for global hazardous area compliance. Designed for high-density installations, it features RFI/EMI immunity, SpringLoc terminals, and a compact form factor ideal for space-constrained environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330780-91-05 |
| Suffix Codes | 91: 9.0 m DIN Mount 05: CSA/ATEX/IECEx Approvals |
| Dimensions (HxWxD) | 6.35 cm x 6.12 cm x 8.13 cm |
| Input Compatibility | 3300 XL 11 mm Proximity Probe |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| Material | A380 Aluminum Housing |
| Temperature Range | Operating: -52°C to +100°C Storage: -52°C to +105°C |
| Humidity Resistance | 100% condensing (non-submersible) |
Contact Us: For custom calibration or technical inquiries, email sales@ubestplc.com.
