330876-02-90-01-00 3300 XL 50 mm Proximity Probe Buy Now

Description

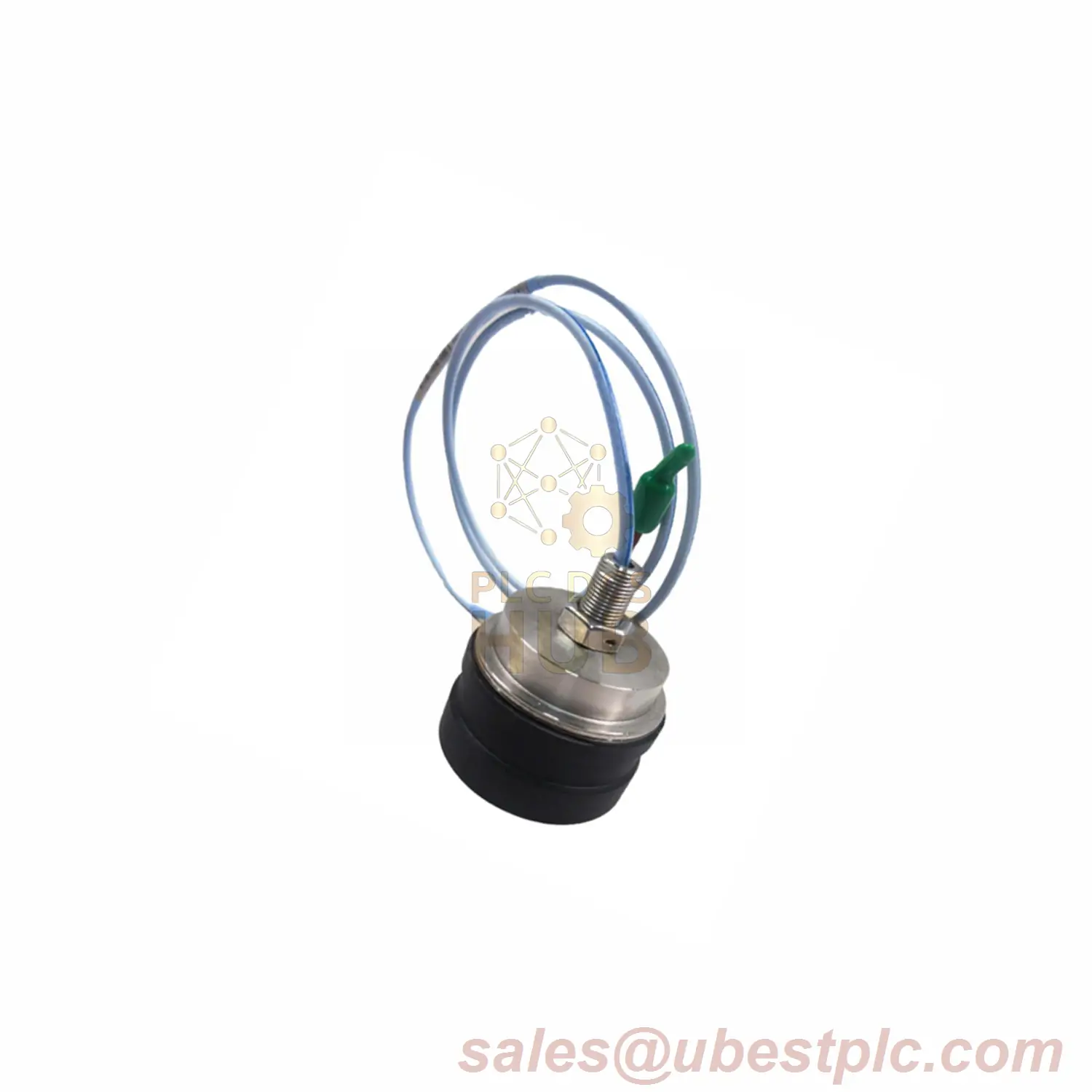

Bently Nevada 330876-02-90-01-00: High-Temp 50mm Proximity Probe

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 50mm Proximity Probe
• Full Part No.: 330876-02-90-01-00
• Suffix Breakdown:
  • -02: M14x1.5 threaded case
  • -90: 9.0 meter cable (29.5 ft)
  • -01: HT FluidLoc® armored cable
  • -00: No agency approvals
• Electrical: 8.9Ω ±1.1Ω resistance (center-coaxial)
• Temp Range:
  • Continuous: -35°C to +200°C
  • Short-term: Up to 250°C (<24hrs)
• Cable: 75Ω triaxial PFA FluidLoc®
• Tip Material: PPS polymer
• Case Material: AISI 304 stainless steel

Key Features

• ✅ Dual front/rear seals for moisture protection
• ✅ High-temp ClickLoc® connectors (tool included)
• ✅ Safety-wire ready locknut
• ✅ 1.99″ case diameter fits confined spaces
• ✅ 12-month factory warranty

Installation & Maintenance

• Thread engagement: Max 0.75″ (M14x1.5 threads)
• Tool-free connector protection system
• Field-replaceable cable collars

Compatibility

Works with Bently Nevada 3300/3500 monitoring systems. Certified for OEM turbine applications.

FAQ

• Q: Maximum cable length?
  A: 9 meters (other options: 1m/5m)
• Q: IP rating?
  A: Moisture-resistant design (no official IP rating)
• Q: Compatible with non-Bently systems?
  A: Requires compatible interface hardware

Warranty: 12 months from shipment date. Contact support for claims.
