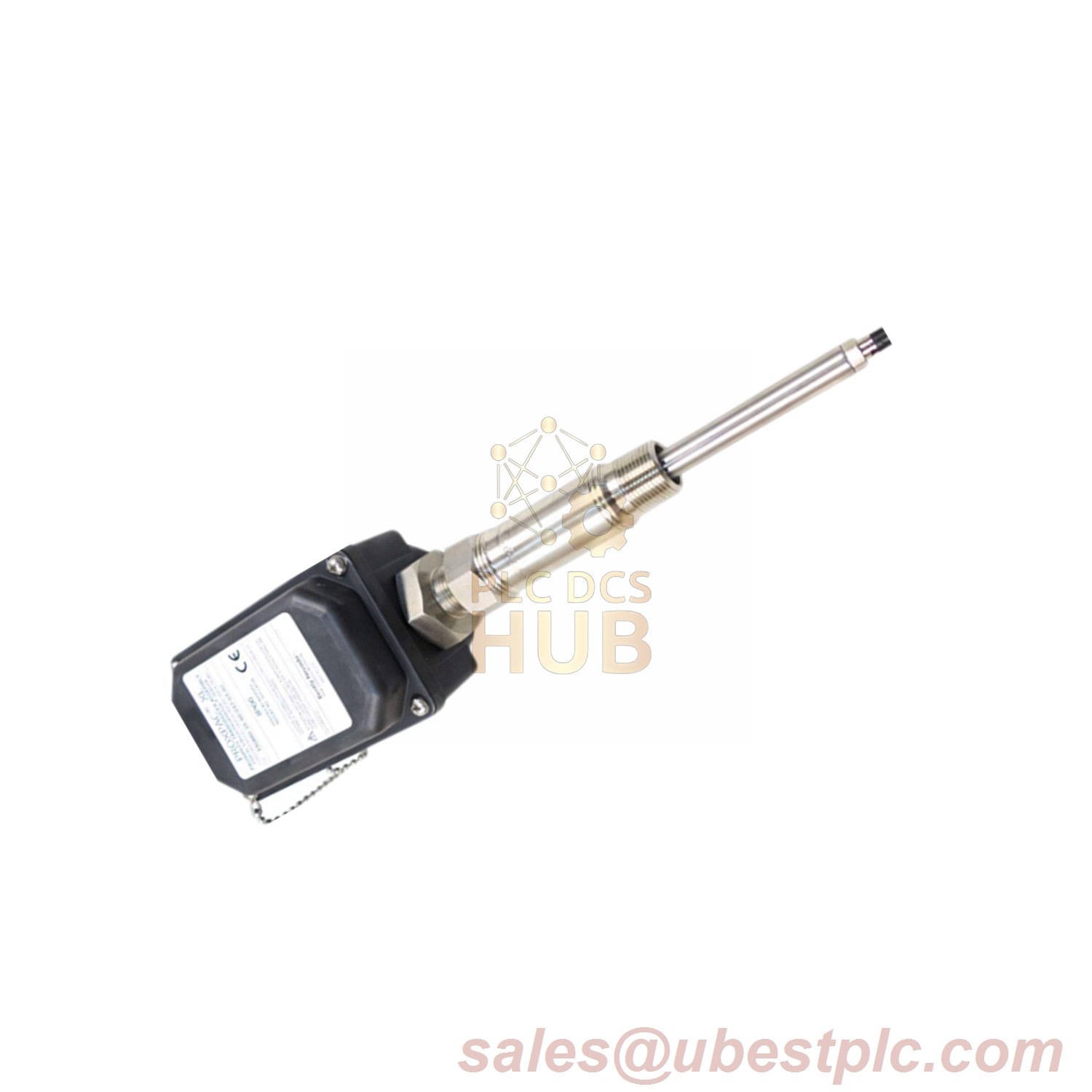

The 330880-28-30-037-01-02 combines a 3-inch (76.2 mm) standoff adapter with 37 mm probe penetration, designed for precision monitoring in confined or hazardous environments. Certified to IP66/BASEEFA standards with multiple global approvals, it operates in -51°C to +177°C extremes. Features 3/4-14 NPT fittings and UV-resistant PPS housing for industrial reliability.
- Remote Monitoring: 3-inch standoff enables installations where direct mounting is impractical.
- Hazardous Area Compliance: ATEX/IECEx certifications for explosive atmospheres (Zone 1/21).
- Short-Range Precision: 37 mm penetration for bearings, seals, or shallow machinery components.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330880-28-30-037-01-02 |
| Suffix Codes | 28: 8 mm probe (multi-certified) 30: 3 in (76.2 mm) standoff 037: 37 mm penetration 01: 3/4-14 NPT fitting + plugs 02: 3/4-14 NPT thread |
| Hazardous Certifications | ATEX II 1/2G, IECEx Ex ia IIC T4 |
| Output Stability | ±0.025 mm linearity deviation @ 1.27 mm gap |
| Impact Resistance | 7 J (BASEEFA) at -39°C to +115°C |
