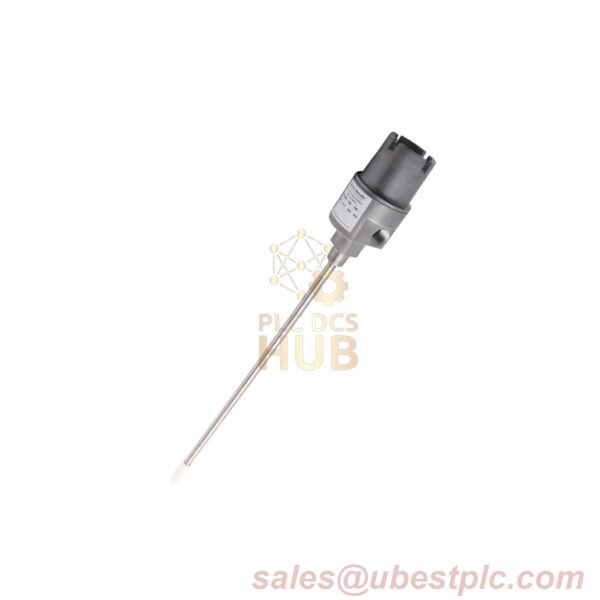

330880-28-30-056-01-02 Bently Nevada Proximity Transducer

Description

Description

The Bently Nevada 330880-28-30-056-01-02 PROXPAC XL Proximity Transducer is a heavy-duty industrial sensor manufactured in the U.S.A. Featuring a 3300 XL 8 mm probe with multiple hazardous area approvals, this configuration includes a 300 mm (11.81 in) standoff adapter and 56 mm (2.2 in) penetration depth. Built with IP66-rated PPS housing and 304 stainless steel components. COO available upon request.

Technical Data

• Manufacturer: Bently Nevada
• Model: 330880-28-30-056-01-02
• Suffix Configuration:
  • A (Probe): 28 – 3300 XL 8 mm (multiple approvals)
  • B (Standoff): 30 – 300 mm (11.81 in)
  • C (Penetration): 056 – 56 mm (2.2 in)
  • D (Fittings): 01 – One M25 fitting + two plugs
  • E (Mounting): 02 – 3/4-14 NPT threads
• Weight: 1.44 kg (3.2 lb)
• Key Features:
  • Gold-plated ClickLoc® connector
  • 75Ω triaxial cable with FEP insulation
  • 7 Joule impact resistance (BASEEFA/CSA certified)
• Electrical Specs:
  • Voltage Range: -17.5 Vdc to -26 Vdc
  • Linear Output: 7.87 V/mm ±5%
  • Frequency Response: 0-10 kHz (±3 dB)
