Description
Description

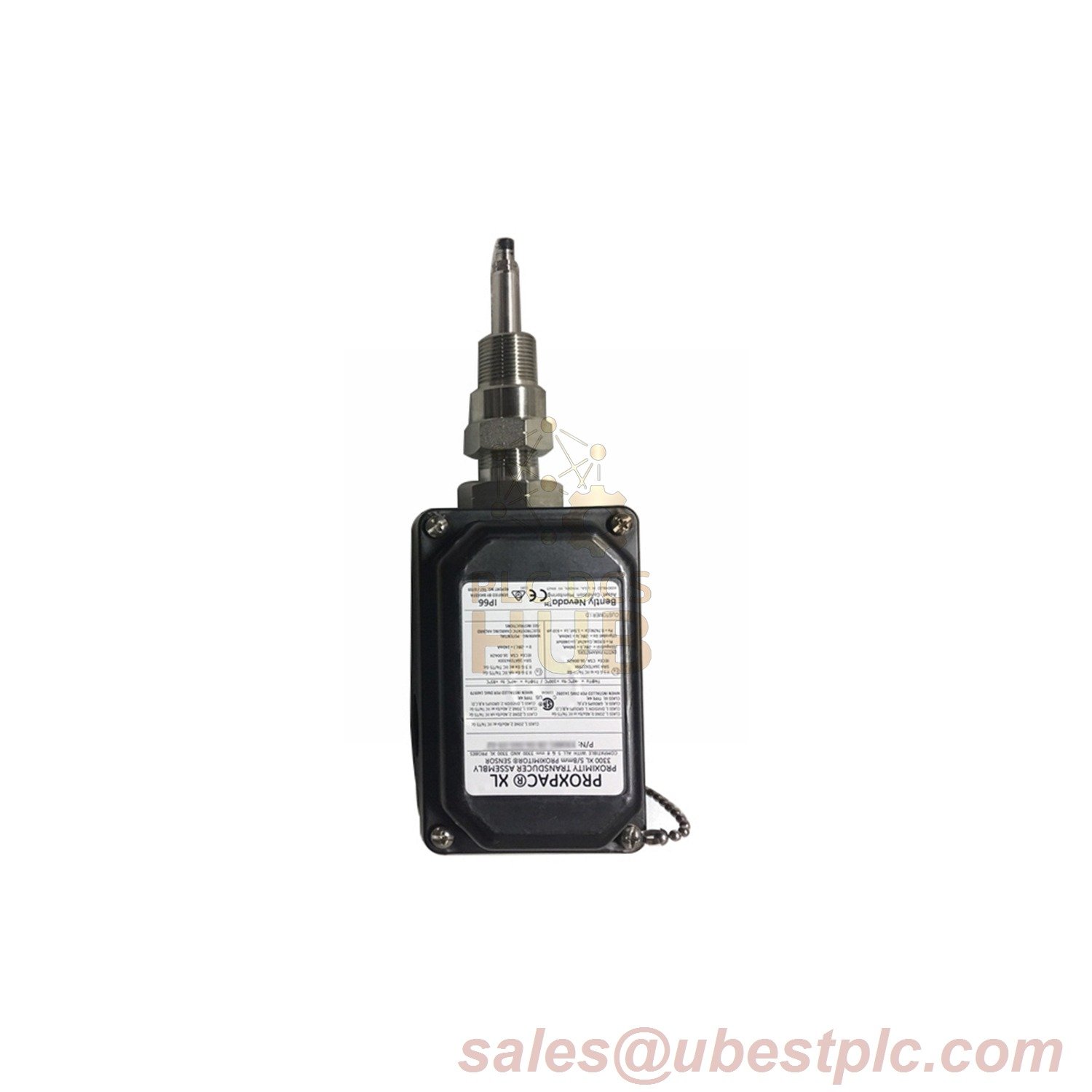

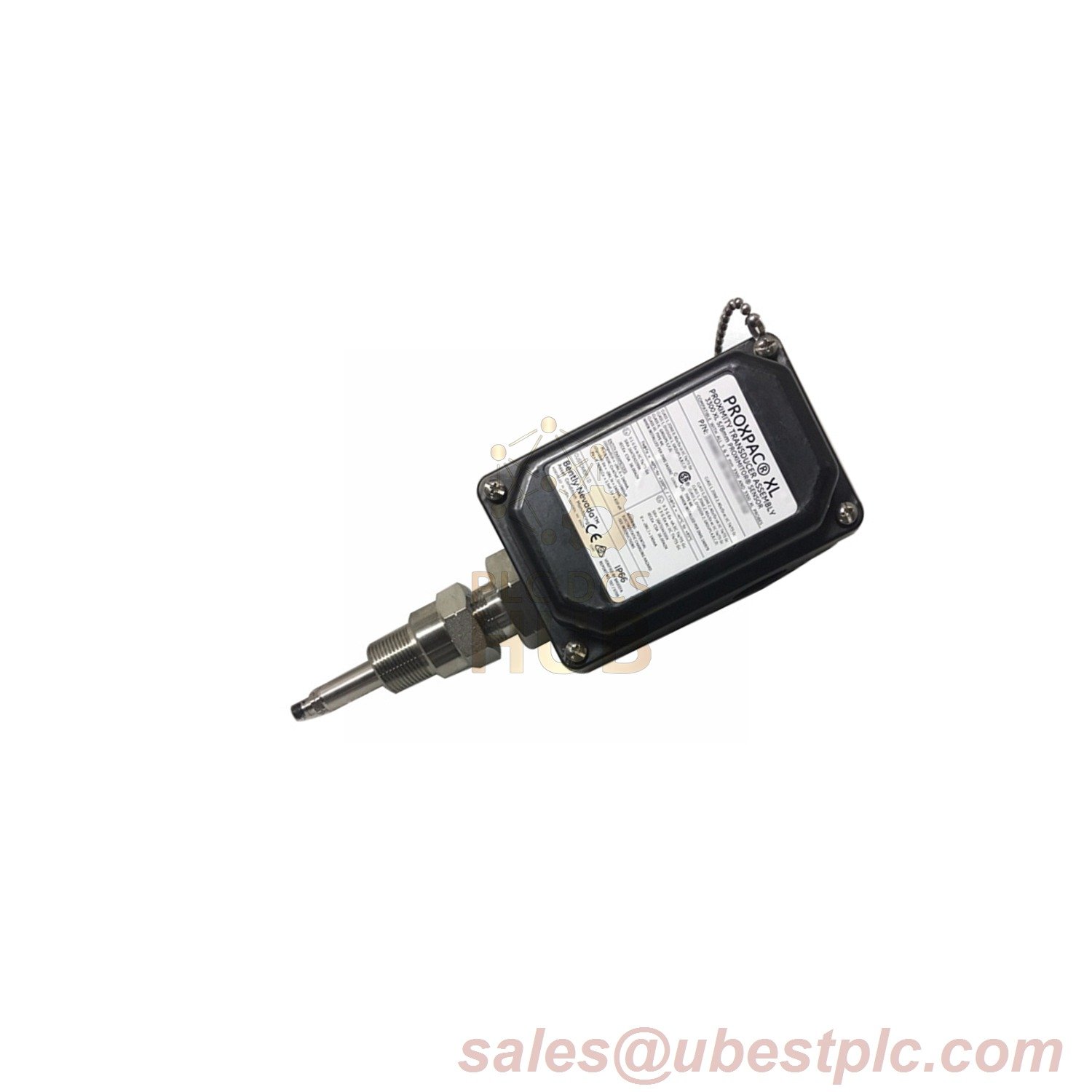

The 330881-16-10-110-06-02 PROXPAC XL Transducer features a 110 mm probe penetration without standoff adapters, optimized for direct-mount applications. Certified to IP66/BASEEFA standards, it operates in -51°C to +177°C extremes and includes M20 fittings for industrial sensor networks. Made in USA, COO available.
- Compact Design: Eliminates standoff adapter for space-constrained installations.
- Corrosion Resistance: Gold-plated ClickLoc connectors + 304 stainless steel housing.
- Signal Integrity: 75Ω triaxial FEP cable with 0.025 mm linearity deviation.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-16-10-110-06-02 |
| Suffix Codes | 16: 3300 XL 8 mm probe without approvals 10: 100 mm 110: 110 mm penetration 06: One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs 02: 3/4-14 NPT thread |
| Electrical Insulation | Fluoroethylene propylene (FEP) |
| Load Capacity | 912 N (205 lbf) @ 38 mm offset |
| Sealing | Neoprene O-ring + conductive PPS housing |
Contact Information
For direct-mount configuration support:
Email: sales@ubestplc.com
