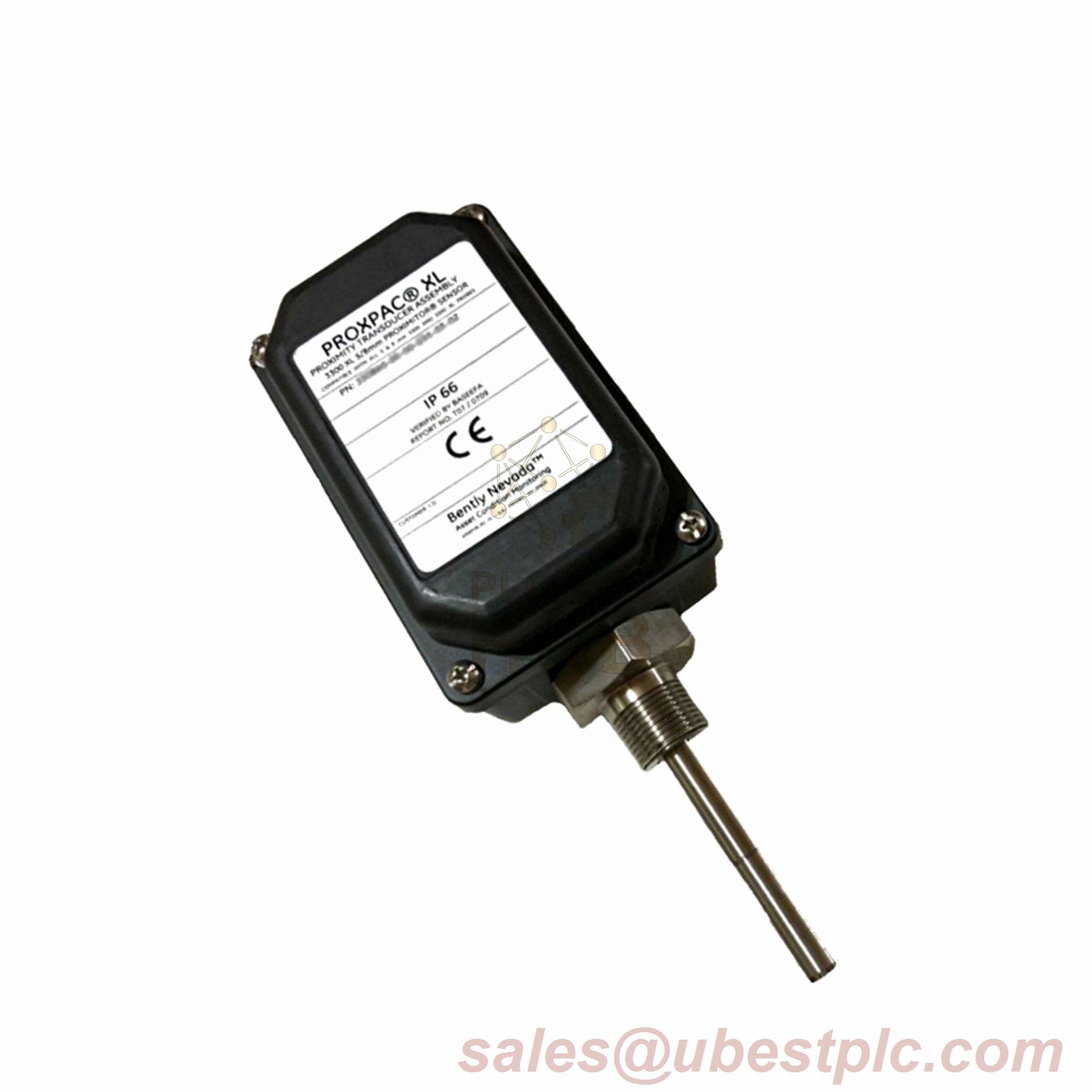

The 330881-28-00-110-03-02 PROXPAC XL Transducer features a 110 mm probe penetration without standoff adapters, optimized for direct-mount applications. Certified to IP66/BASEEFA standards, it operates in -51°C to +177°C extremes and includes M20 fittings for industrial sensor networks. Made in USA, COO available.
- Compact Design: Eliminates standoff adapter for space-constrained installations.
- Corrosion Resistance: Gold-plated ClickLoc connectors + 304 stainless steel housing.
- Signal Integrity: 75Ω triaxial FEP cable with 0.025 mm linearity deviation.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-00-110-03-02 |
| Suffix Codes | 28: 8 mm multi-certified probe 00: No standoff adapter 110: 110 mm penetration 03: M20 fitting + plugs 02: 3/4-14 NPT thread |
| Electrical Insulation | Fluoroethylene propylene (FEP) |
| Load Capacity | 912 N (205 lbf) @ 38 mm offset |
| Sealing | Neoprene O-ring + conductive PPS housing |
