Description

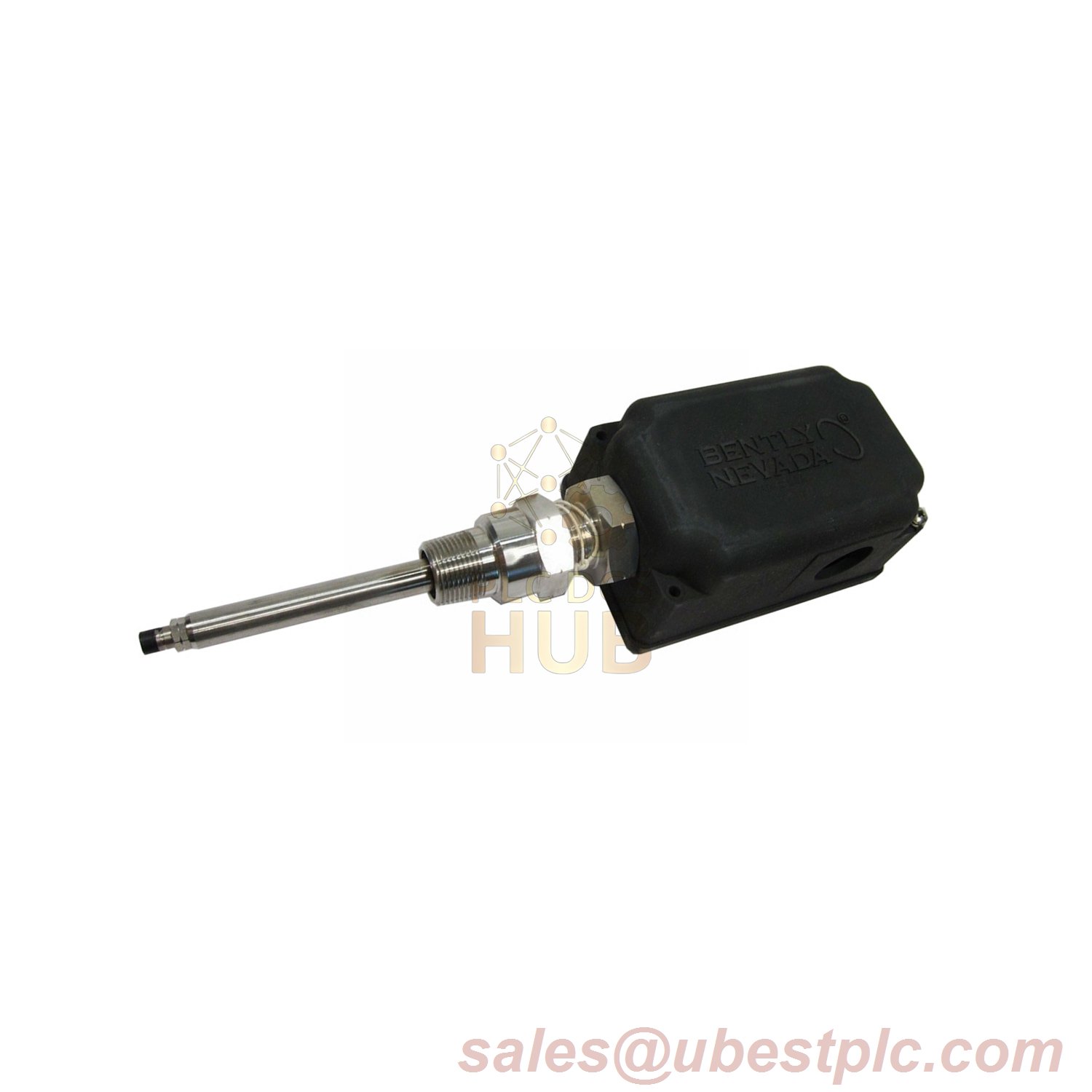

Bently Nevada PROXPAC XL Proximity Transducer
Made in the U.S.A., the PROXPAC XL Proximity Transducer 330881-28-04-080-06-02 is a high-performance system designed for precision machinery monitoring. Featuring a 3300 XL 8 mm probe with multi-certification approvals, this assembly offers robust construction, IP66-rated durability, and compliance with industrial standards for hazardous environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-04-080-06-02 |
| Suffix Codes | 28: 3300 XL 8 mm Probe (Multi-Approvals) 04: 40 mm Standoff Adapter 080: 80 mm Probe Penetration 06: 3/4-14 NPT Fitting + Reducer/Plugs 02: 3/4-14 NPT Mounting Thread |
| Weight | 1.44 kg (3.2 lb) |
| Probe Specifications | Tip Material: Polyphenylene Sulfide (PPS) Case Material: AISI 304 Stainless Steel Cable: 1 m Triaxial FEP Connector: Gold-Plated ClickLoc |
| Environmental Ratings | IP66 Housing Operating Temp: -51°C to +177°C Impact Resistance: 4 Joule (BASEEFA Certified) |
| Electrical | Power: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω Linear Range: 2 mm (80 mils) Frequency Response: 0–10 kHz (±3 dB) |
| Installation Notes | Torque: 29.5 N·m (Retaining Nut) Min. Target Size: 15.2 mm diameter Avoid temps below -34°C to prevent seal failure. |
Contact Us: For COO requests or technical inquiries, email sales@ubestplc.com.
