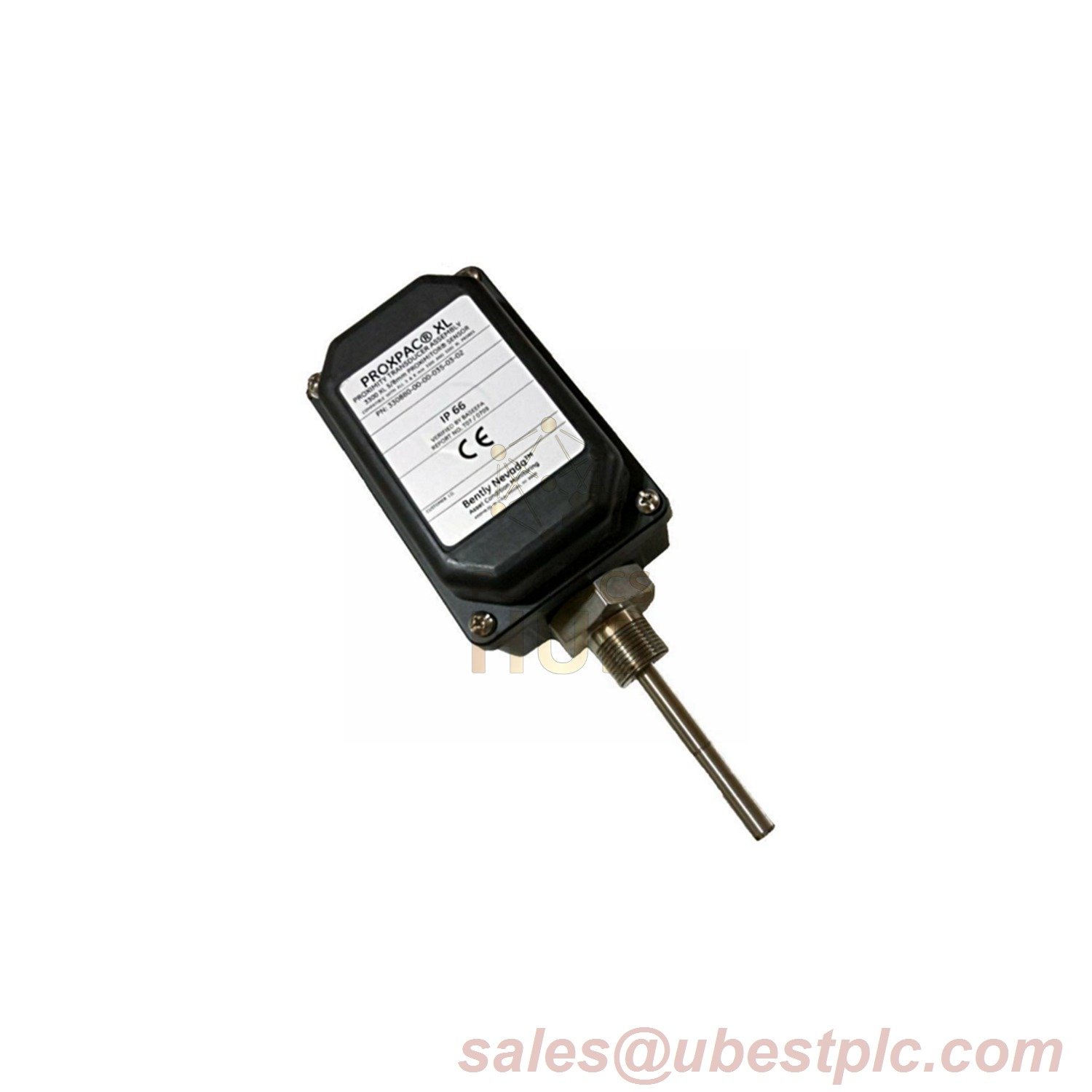

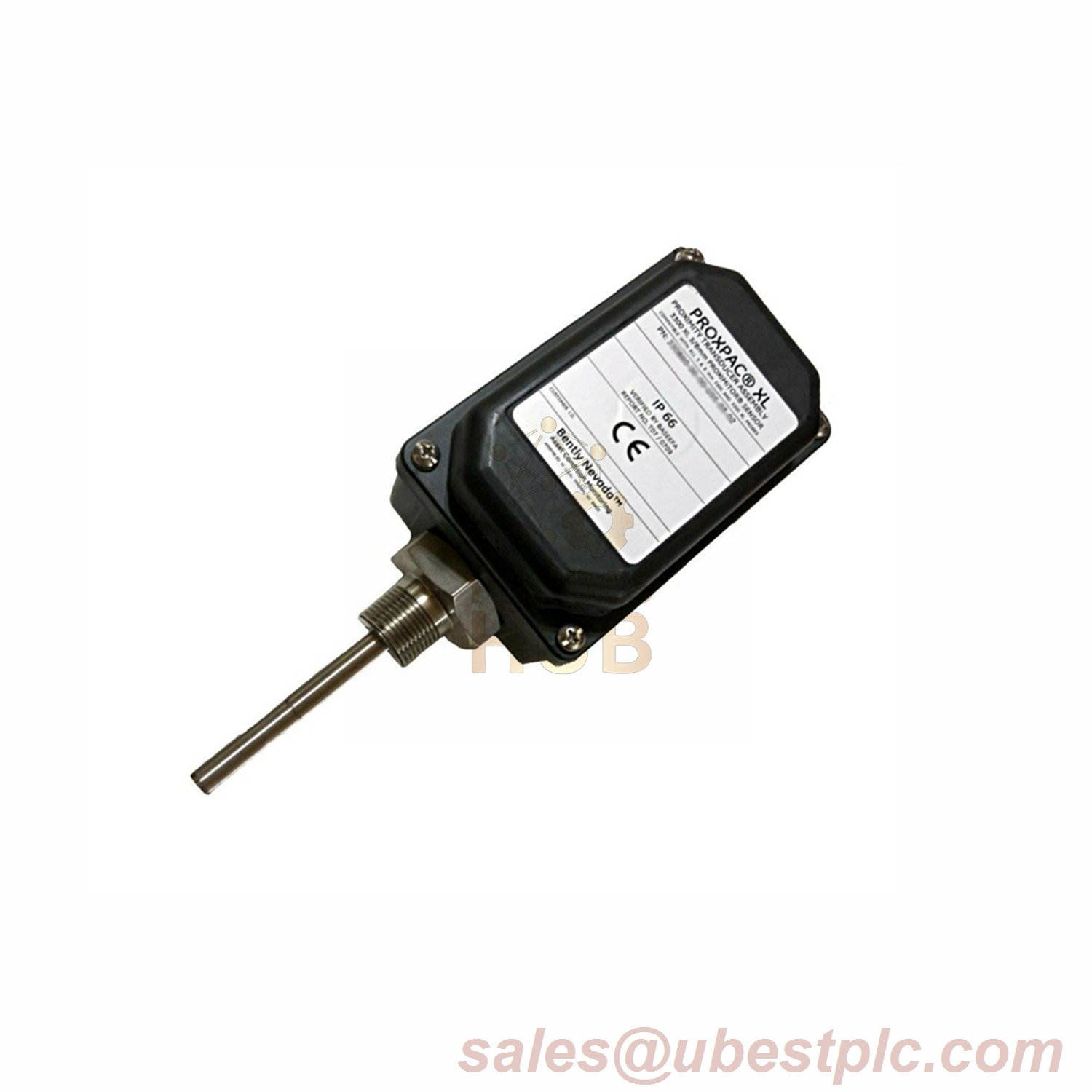

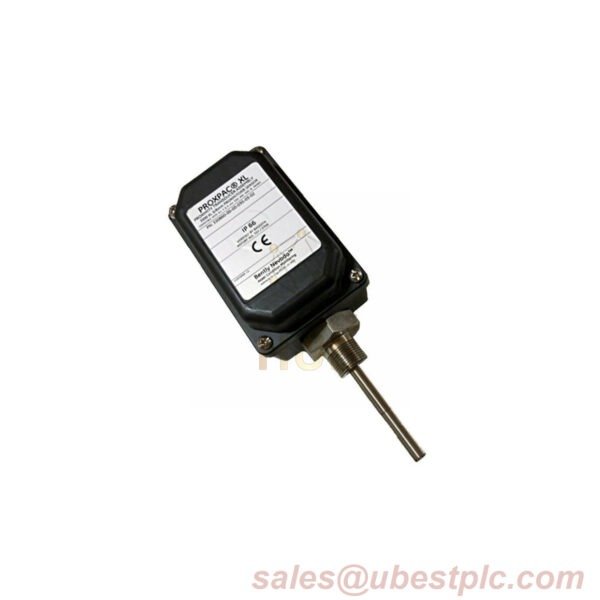

The 330881-28-04-083-06-02 PROXPAC XL Transducer features an 83 mm probe penetration with 3/4-14 NPT to 1/2-14 NPT reducer for versatile installations. Built to IP66/BASEEFA standards, it operates in -51°C to +177°C extremes and withstands 7 J impacts. Includes a 3300 XL 8 mm probe with FEP-insulated triaxial cable. Made in USA, COO available.
- Adaptive Fittings: Includes SST reducer for multi-thread compatibility.
- Structural Integrity: 912 N load capacity @ 38 mm offset.
- Calibration Precision: ±0.025 mm linearity deviation.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-04-083-06-02 |
| Suffix Codes | 28: 8 mm multi-certified probe 04: 40 mm standoff adapter 083: 83 mm penetration 06: NPT reducer + plugs 02: 3/4-14 NPT thread |
| Electrical Output | 7.87 V/mm ±5% @ 1.27 mm gap |
| Cable Insulation | 75Ω triaxial FEP |
| Vibration Damping | Cellular silicone isolation |
