Description
Description

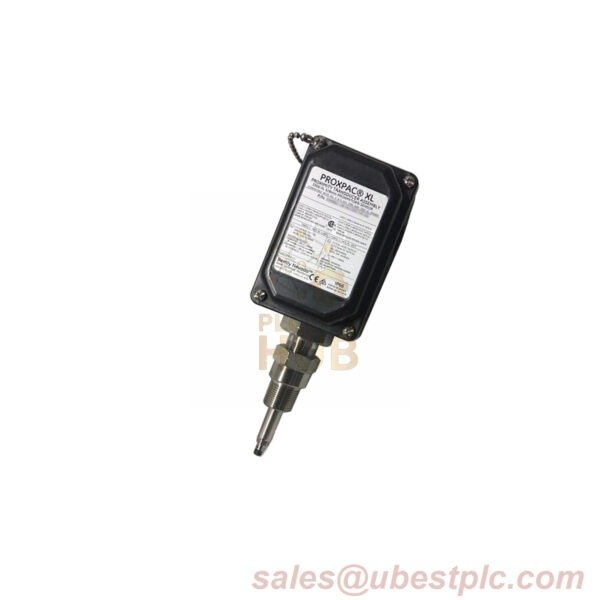

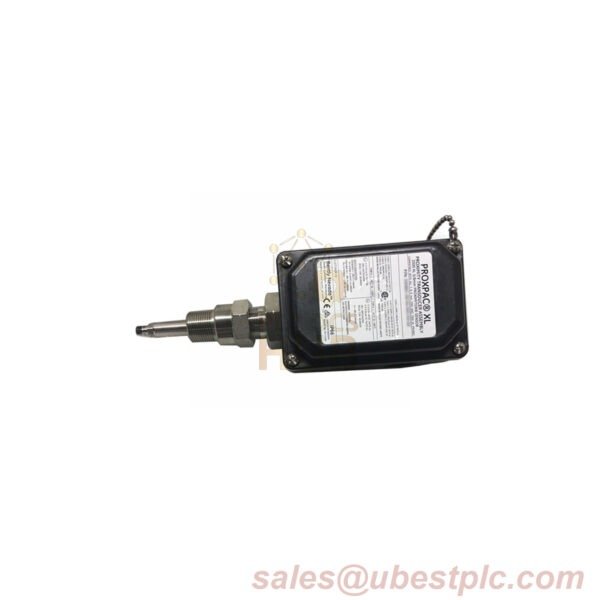

The 330881-28-05-070-00-02 is engineered for high-precision gap measurement with a balanced 70 mm probe penetration and 50 mm standoff. Designed for harsh environments, it features IP66/BASEEFA certification, UV-resistant PPS housing, and 3/4-14 NPT mounting. Made in USA with optional COO.
- Advanced Insulation: Fluoroethylene propylene (FEP) triaxial cable ensures minimal signal interference.
- Thermal Resilience: Operates at -51°C to +177°C with pressure seal limits below -34°C.
- Custom Integration: “00” suffix supports flexible third-party fitting configurations.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-05-070-00-02 |
| Suffix Codes | 28: 8 mm multi-certified probe 05: 50 mm standoff adapter 070: 70 mm penetration 00: No pre-installed fittings 02: 3/4-14 NPT thread |
| Electrical Specs | 75Ω triaxial cable, 50Ω output resistance |
| Mechanical Load | 912 N (205 lbf) @ 38 mm offset |
| Vibration Isolation | Extra soft cellular silicone (40% damping) |
